E. Using the Monitor with Other Equipment while Playing DVD on the DVD Player
you can use a game console or other video equipment on the monitor while playing a DVD on the DVD
Player.
Watching Video Equipment on the Monitor while Playing DVD on the DVD Player
1. Connect only the power connector between the DVD Player and the monitor. Do not connect the Audio/Video
portion of the DC-AV cable.
2. Connect the monitor to the other equipment using a standard AV cable (not included).
3. Turn on the DVD Player, the monitor and the other equipment.
4. Play a DVD on the DVD Player.
5. Use the monitor for the other equipment.
Notes:
• Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause a weak signal.
• If you have a mono VCR, the volume level from the speakers will be low.
F. Using Headphones/Earphones
Turn down the volume before connecting the
headphones/earphones. Slowly raise the volume
with the headphones on until you reach your desired
volume. When headphones are connected, the speaker
is automatically disabled.
Caution:
• Avoid listening to sound at excessive levels which
could be harmful to your ears.
• At full power, the prolonged listening of the walkman
can damage the ear of the use.

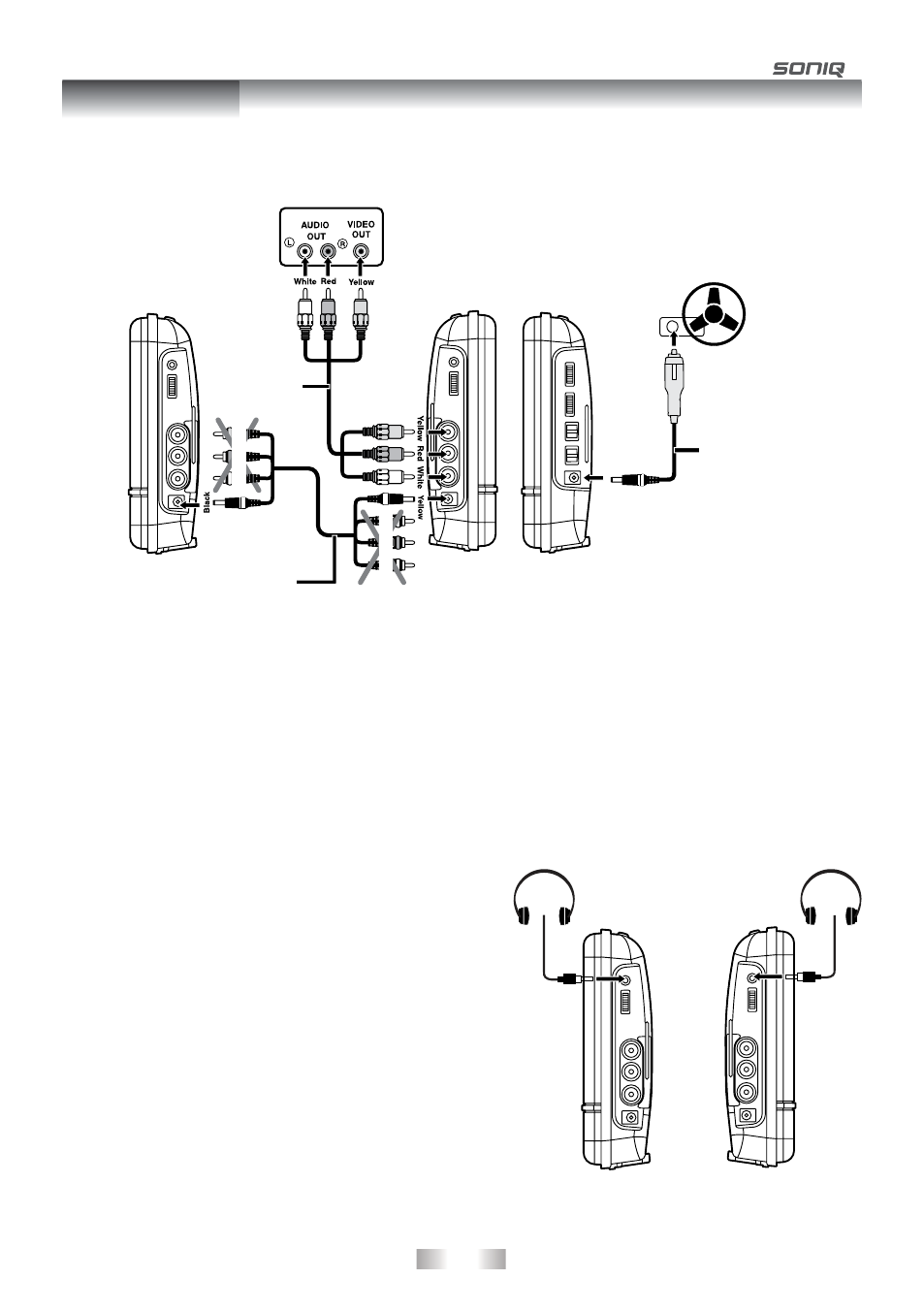

DVD Player
right side
Monitor -
left side right side
AV cable
(not included)
AV-DC cable
(included)
Game System /
Video Equipment
To A/V OUT &
DC IN 9V-12V jacks
To A/V IN &
DC OUT 9V-12V
jacks
DO NOT CONNECT
DO NOT CONNECT
To the cigarette
ligher socket
Car Power
Adapter
To DC IN 9V-12V
jack
Headphones / Earphones
[1/8” (3.5mm) diameter plug]
Monitor
left side
DVD player
right side
Connections
