System Connection
System Connection
16
15

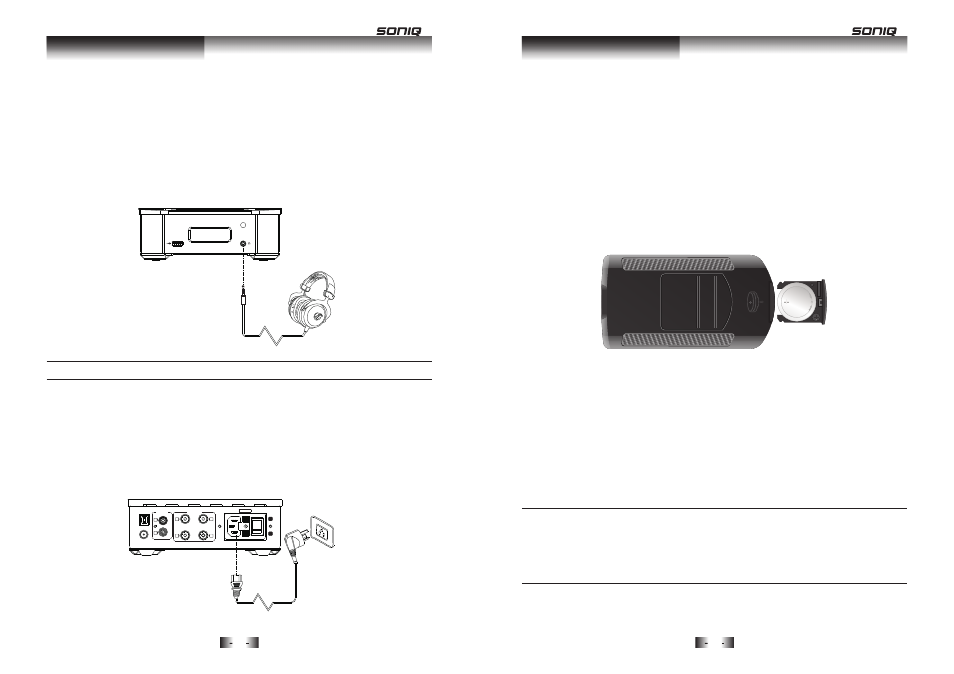

6. Headphone Connection
H10 is a HI-FI power amplifier, as well as a headphone amplifier. You can enjoy the wonderful
music with the headphone.
H10
7. Power Cord Connection
①.
② . Press the power switch to“On”, and then the machine starts working; Press the power
switch to“Off”, and then the machine will stop.
Plug the power cord to the power socket after finishing other connections.
①.Place the remote control upside down.
②.Press the sunken position, and then buckle downward.
③.Place the new battery according to the positive electrode and negative electrode directions
listed on the battery stand.
④.Push the battery stand to the original position.
⑤.Change the battery when the remote control doesn't work.
8. Installation of Remote Control Battery
9. Remote Control Operation
①.Aim the remote control directly at the remote sensor.
②.In order to avoid weakening the controlling effect, please don't lay any obstacle between the
remote control and the remote sensor.
