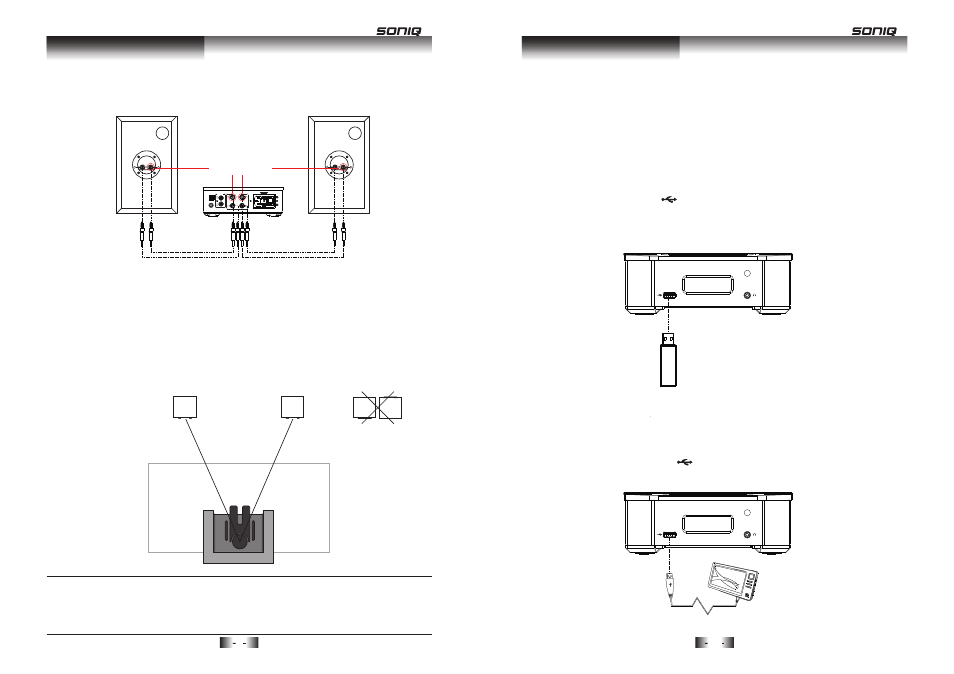

System Connection
System Connection
9
10
①.Connect one end of the audio signal cables to the positive and negative from your speakers.
Red to Red and Black to Black.
② .Connect the other end of the audio signal cables to the positive and negative from the
amplifier. Red to Red and Black to Black.
③.Take the same way for both Left Channel and Right Channel Speakers.
④ .R refers to right channel while L represents left channel. Take above picture for your
reference.
1. Speaker Connection
◆ Please do not insert the power cord into the main socket before all other instruments are
well connected.
◆ Please take the right guidance for connection because wrong connection may cause noise
or low-grade function.
-
+
-
+
- +
- +
Red
Terminal
L
R
L
R
Locating
the
two
speakers
in
reverse
directions
will
w o r s e n
t h e
a c o u s t i c
fidelity
seriously!
Notice
:To make
sure a better listening,
please keep the two
speakers in an
appropriate distance,
not too close.
Schematic
Diagram
of
Speakers
Note
:
2. USB Storage Device Connection
Connect USB storage device like U-Disk or MP3 player with the amplifier and press“USB on
the remote control or“SELECTOR”on the top panel. Then the operation state will turn into“U
DISK” state and you can enjoy the music freely in the storage device.
”
(1).Compatible for U-Disk
①.Plug the U-Disk to USB socket
in the front panel.
②.If it is playing music stored in the U-Disk, let it stop playing before unplugging the U-Disk.
“
”
H10
(2).Compatible for Device with USB Cable
①.Connect the USB cable to the USB device.
②.Plug the USB cable to USB socket
in the front panel.
“
”
H10
OFF
ON
TI.6AL 250V
PC-DAC
L+
L-
R+
R-
L
R
FM ANT
AUX IN
SPEAKER
