CONNECTIONS
CONNECTING HDMI
HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for
use with DVD players, DTV, set-top boxes and other digital AV devices. HDMI was developed to provide the
technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI)
in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant or
HDMI-compliant displays.
HDMI has the capability to support standard, enhanced or high-definition video plus standard to multi-channel
surround-sound audio. HDMI feature include uncompressed digital video, one connector (instead of several
cables and connectors), and communication between the AV source and AV devices such as DTVs.
HDMI, the HDMI logo
and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.

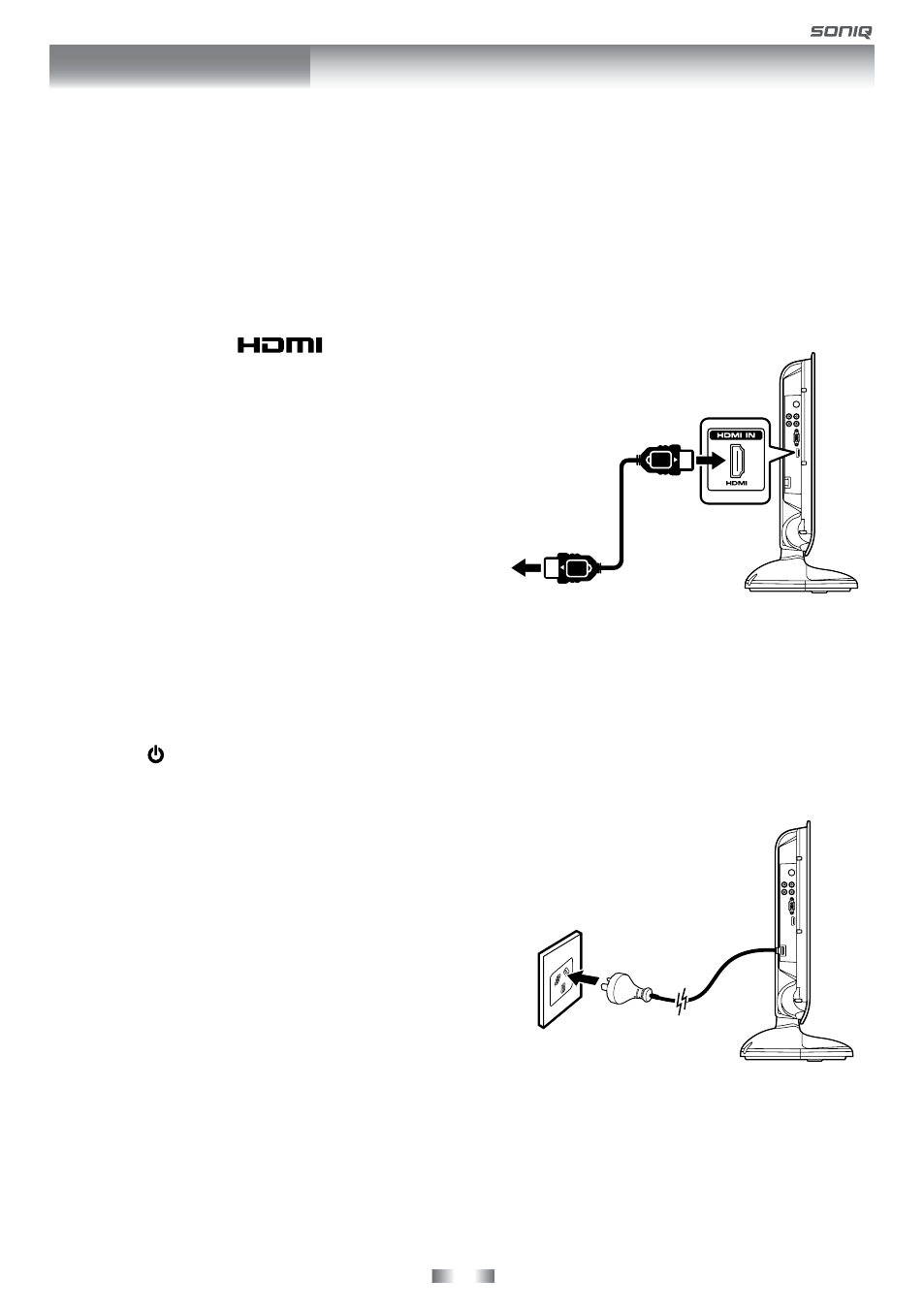

Connect the HDMI cable (not included) as shown.
Make sure you connect the cable from the device (
HDMI
OUT) to this unit (HDMI IN).
To operate the connected device and play the source, first
press the
FUNCTION button to select the HDMI mode.
CONNECT THE POWER CORD
• Connect the AC power cord into a wall outlet.
• Press the
/ I button on the unit or remote control to turn on the unit.
NOTE
• Be sure the AC power cord is disconnected and all
functions are off before making connections.
• Make sure that all the components are connected
correctly.
• When you are not going to use the unit for a long period
of time, disconnect the power cord.
• The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on apparatus.
• The mains plug is used as the disconnecting device.
It should remain readily accessible and should not be
obstructed during use. To be completely disconnected
from the supply mains, the mains plug of the apparatus
should be physically disconnected from the mains socket
outlet.
To HDMI
OUT jack
To HDMI
IN jack
To AC wall
outlet
