NOTE: before you make any connections, ensure the Blu-ray player, Sub woofer and any TV /

Monitor you wish to connect to is switched OFF.

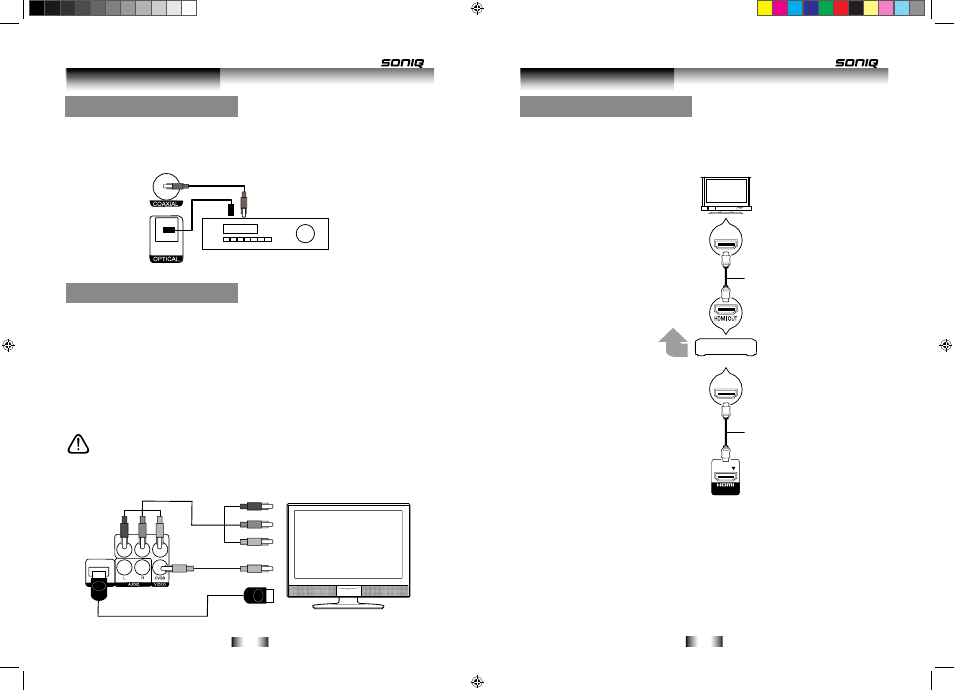

● Connecting the Blu-ray player to an external amplifier

There are two digital audio output options,COAXIAL or OPTICAL. See the diagram across.

Video connections

There are a number of ways to connect the Blu ray player to your TV or monitor. See the
diagram across for examples.
1. HDMI: This is the standard connection for High Definition TV and can carry video and audio
signals.
Will this machine and compatible with 3 D TV connection, can be 3 D Play video.
2. COMPONENT: This connection only carries video. Connect one end to the Blu-ray player the
other end to your TV/Monitor.
3. COMPOSITE: This connection only carries video and the cable is usually yellow. Connect
one end to the Blu-ray player the other end to your TV/Monitor.

NOTE: YUV and VIDEO will have no signal output under the below two conditions.

1.There is only HDMI output when playing 3D blu-ray video.
2.There is only HDMI output when the resolution from the SETUP menu is set to 1080P

24Hz.

(optional) Digital Inputs

Amplifier with decoder

Installation

Other connections

Audio connections

Connecting to an external amplifier and TV using HDMI cables.

If you have an external Amplifier that supports HDMI audio, then you can connect the Blu-ray
player to the Amplifier HDMI input and then the HDMI output to your TV or monitor.

HDMI IN

Many track speakers

HDMI line

Blu-ray player

Amplifier

HDMI CABLE

COMPOSITE CABLE

COMPONENT CABLE

TELEVISION
