-8- -9-

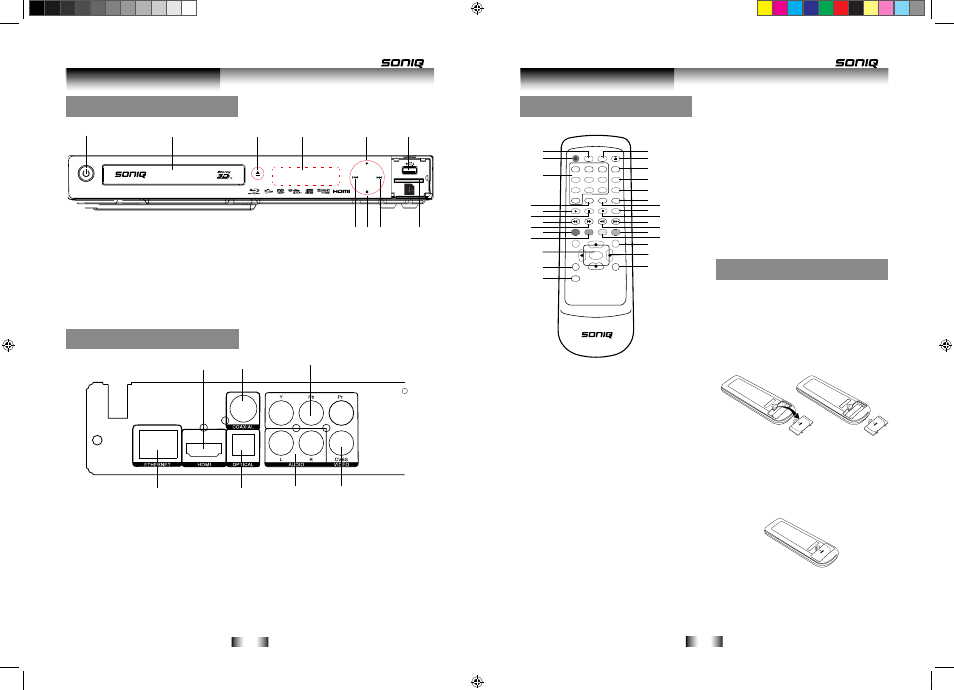

FRONT PANEL
1. STANDBY button
2. Disc tray
3. OPEN/CLOSE button
4. LED Display
5. PLAY buttons
14
11 12 13
15 16 17
6. USB input
7. PREV Button
8. STOP Button
9. NEXT Button
10. CARD input
15. OPTICAL digital audio output
16. STEREO Audio output
17. COMPOSITE video output
REMOTE CONTROL
1. DISPLAY button
2. STANDBY button
3. 0-9 NUMBER buttons
4. SEARCH button
5. PLAY button
6. PAUSE button
7. ◄◄ button
8. ►► button
9. RED button
10. GREEN button
11. ENTER button
12. SETUP buttons
13. BD/SD/USB button
14. HDMI O/P RESET button
15. EJECT button
16. A-B button
17. ZOOM button
18. PIP button
19. AUDIO button
20. CLEAR button
21. SUB MENU button
22. STOP button
23. ►►I button
24. I◄◄ button
25. BLUE button
26. YELLOW buttons
27. POPUP MENU button
28. NAVIGATION button
29. RETURN button
Remote battery installation
Before use, the remote control will need
batteries fitting. These are supplied with
the package and need removing from their
packaging before fitting.
1. Remove the battery compartment lid as
shown.
2. Fit 2 x AAA batteries as shown. Take
care to match the polarities of the remote to
the batteries. EG: the + sign on the battery
matches the + sign on the remote control
battery compartment.
3. Replace the battery compartment lid and
proceed to use.
2
1
3
5
6
4
15
14
22
23 24 7
18
19
21 20
25 26
8 9
12
13
27
29
28 11
10
HDMI O/P RESET
SUB MENU
POPUP MENU
DISPLAY
1 2 3
4 5 6
7 8 9
0 CLEAR SEARCH
SETUP RETURN
AUDIO
BD/SD/USB
PIP
ENTER
DISC MENU
ZOON
A-B 16
17
QT146
+ -
+
-
Functions & Controls Functions & Controls
REAR PANEL
11. HDMI video output
12. COAXIAL digital audio output
13. COMPONENT video output
14. ETHERNET input
Blu-ray control panel
Blu-ray rear panel
Remote control
10 8 9
1 3
7
2 4 5 6
