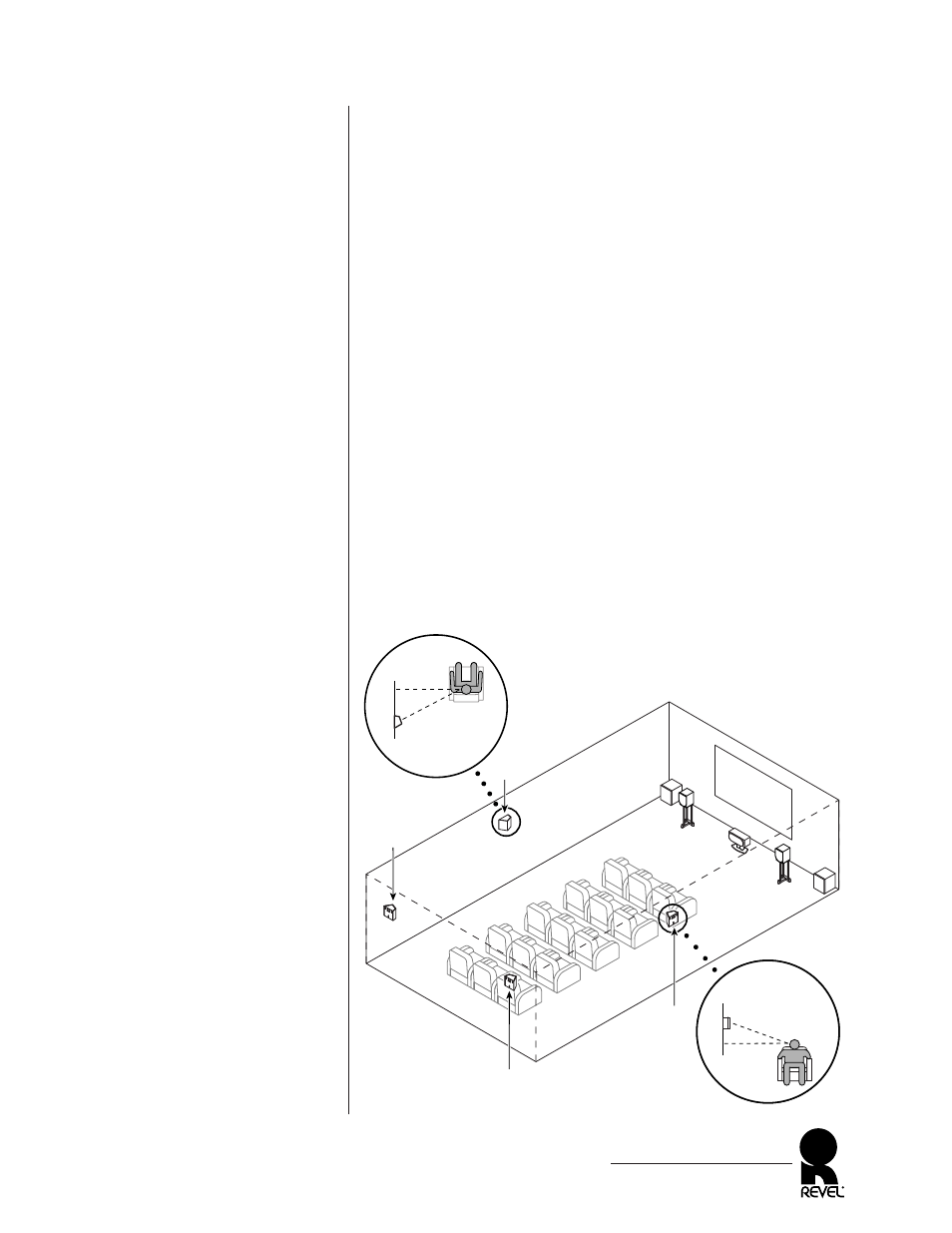

Figure 6. In this recommended
7.1-channel system, two pairs of
REVEL PERFORMA S30
surround loudspeakers are placed
on side and rear walls.
NOTE: Placement on the rear
wall is opposite of the placement
on the side walls. Also see
mounting instructions and pre-
cautions, starting on page 12.
7.1-CHANNEL PLACEMENT
Some multi-channel controllers can independently drive two pairs
of surround loudspeakers. Three configurations are possible:
• One pair of REVEL PERFORMA S30 surround loudspeakers
may be placed on the side walls, along with another pair on the
rear wall (see details below).
• One pair of REVEL PERFORMA S30 surround loudspeakers
may be placed on the side walls, along with another pair on the
rear ceiling (see details on the next page).
• Two pairs of REVEL PERFORMA S30 surround loudspeakers
may be placed on the ceiling (see details on page 10).
NOTE: If you not sure which configuration is appropriate for your
needs, review all three before deciding on placement.
7.1-CHANNEL PLACEMENT ON SIDE AND REAR WALLS
In this recommended placement, a pair of REVEL PERFORMA
S30 surround loudspeakers may be placed on the side walls with a
second pair on the rear wall, as shown in Figure 6. For film sound
reproduction, the front pair should be set to dipole mode, while
the rear pair may be set to dipole or monopole mode.
REVEL PERFORMA S30
Owner’s Manual
9
