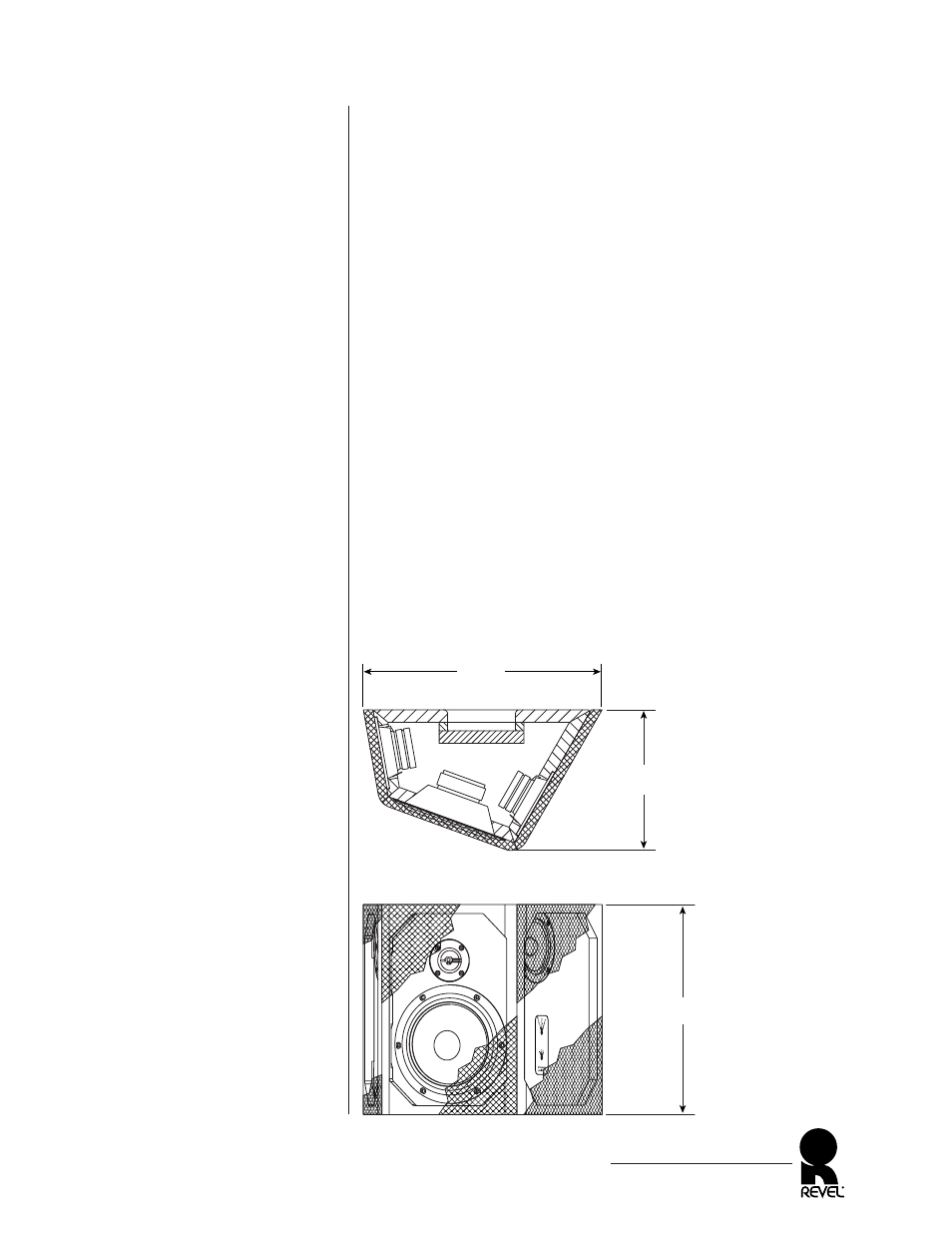

Figure 17. Overall dimensions
for the REVEL PERFORMA
S30 surround loudspeaker.
Frequency Responses: First-Reflections Response;
(Monopole Mode) ±1.75 dB from 88 Hz to 14 kHz
First reflection response is a measure of the response a listener hears
that is contributed by the first reflections from the walls, floor, and
ceiling. This superb specification indicates that REVEL PERFOR-
MA S30 surround loudspeaker will remain accurate, even in the
presence of strong reflections.
Listening Window Response;
±1.5 dB from 90 Hz to 18 kHz
This improved “on-axis” measurement reduces the visual confusion
of inaudible local interference, yet still retains full accuracy without
using “spectral smoothing” which results in significant data loss.
Low Frequency Extension;
-3 dB @80 Hz, (-6 dB @65 Hz, -10 dB @ 50 Hz)
Studies have shown that the -10 dB low frequency extension specifi-
cation is the one that best correlates to controlled listening tests.
At low frequencies, most loudspeaker/room combinations will
exhibit significant “room gain”, which is an increasing rise in level
as frequencies decrease. In addition, the -10 dB specification reflects
the steepness (i.e., order) of the low-frequency roll-off, which is not
significantly indicated in -3 dB specifications.
Dimensions: 12 1 ⁄ 2 "H x 14 3 ⁄ 16 " W x 8 3 ⁄ 8 " D
317 mm H x 361 mm W x 212 mm D
(including grilles – see Figure 17 below)
Weight: 40 lb (18 kg) net, shipping weight per pair
18 lb (8 kg) net, individual weight
Revel, a division of Madrigal Audio Laboratories, constantly strives to update and improve existing products, as well
as create new ones. Therefore, the specifications and construction details in this and related Revel publications are
subject to change without notice. Kapton is a registered trademark of the E.I. du Pont de Nemours Company.
Performa and Ultima are trademarks and Revel and Salon are registered trademarks of Harman International
Industries, Inc. © Harman International, 2000.
