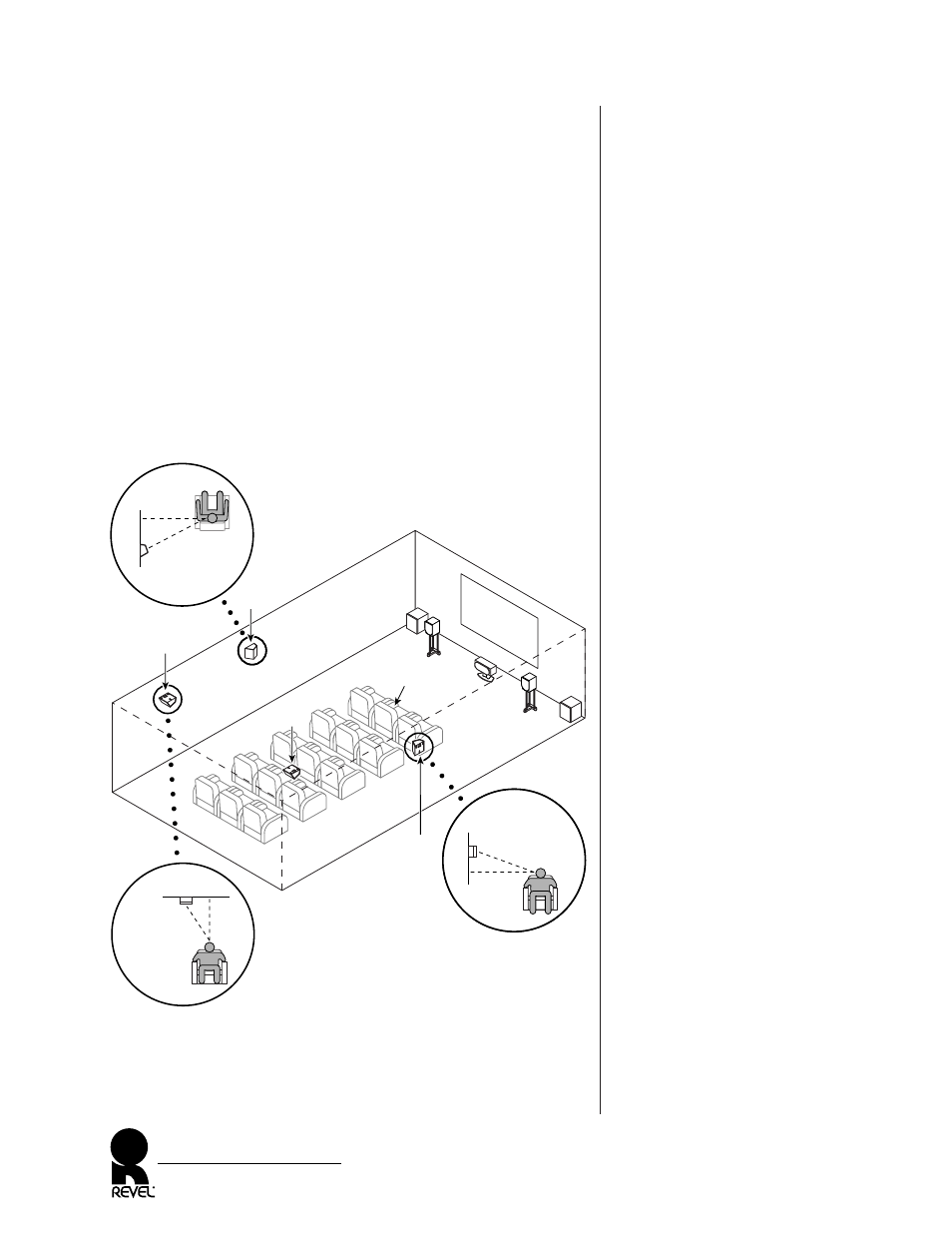

Figure 7. As an alternative
7.1-channel system, one pair of
REVEL PERFORMA S30
surround loudspeakers is placed
on side walls, while another pair
is placed on the rear ceiling.
NOTE: Placement on the rear
ceiling is opposite of the
placement on the side walls. Also
see mounting instructions and
precautions, starting on page 12.
PLACEMENT
7.1-CHANNEL PLACEMENT (Continued)
7.1-CHANNEL PLACEMENT ON SIDE WALLS AND REAR CEILING
If placing a second pair REVEL PERFORMA S30 surround loud-
speakers on the rear wall is impossible, try placing this pair on the
rear ceiling, as shown in Figure 7. For film sound reproduction,
the front pair (on the side walls) should be set to dipole mode,
while the rear pair may be set to dipole or monopole mode.
NOTE: In order to be effective, each REVEL PERFORMA S30
surround loudspeaker on the ceiling must be orientated so that
the woofer and tweeter on the largest enclosure plane fires towards
the listeners.
