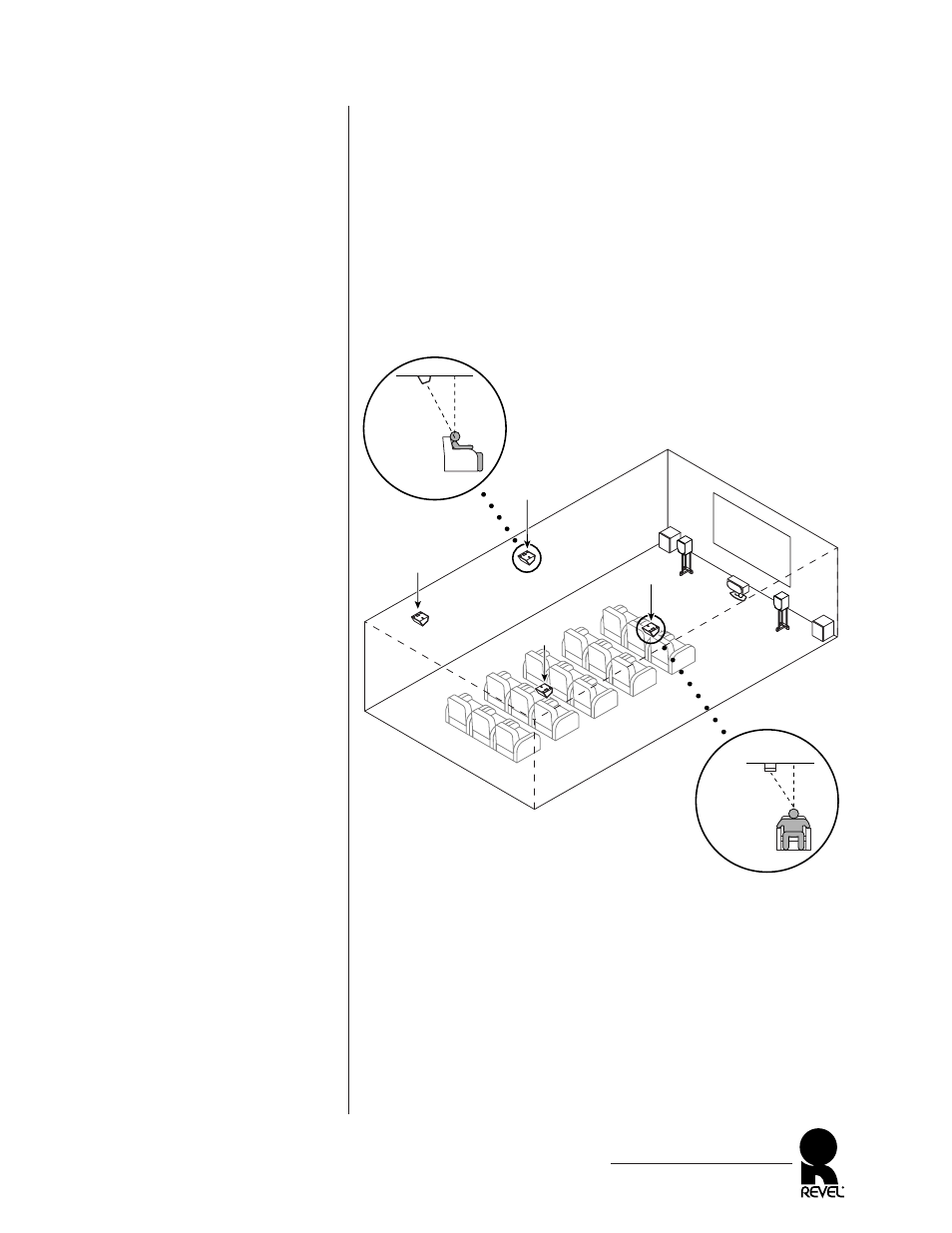

Figure 8. In this 7.1-channel

system, two pairs of REVEL

PERFORMA S30 surround

loudspeakers are placed on the

ceiling, front and rear.

NOTE: Also see mounting

instructions and precautions,

starting on page 12.

7.1-CHANNEL PLACEMENT ON FRONT AND REAR CEILING

A pair of REVEL PERFORMA S30 surround loudspeakers may be
placed on the front ceiling with a second pair on the rear ceiling,
as shown in Figure 8. For film sound reproduction, the front pair
should be set to dipole mode, while the rear pair may be set to
dipole or monopole mode.

NOTE: In order to be effective, each REVEL PERFORMA S30
surround loudspeaker on the ceiling must be orientated so that
the woofer and tweeter on the largest enclosure plane fires towards
the listeners.

REVEL PERFORMA S30

Owner’s Manual

SIDE VIEW

~ 30

S30

Prime

Listener

Ceiling

FRONT VIEW

S30

Ceiling

Prime

Listener

Screen

Sub

Center

S30
