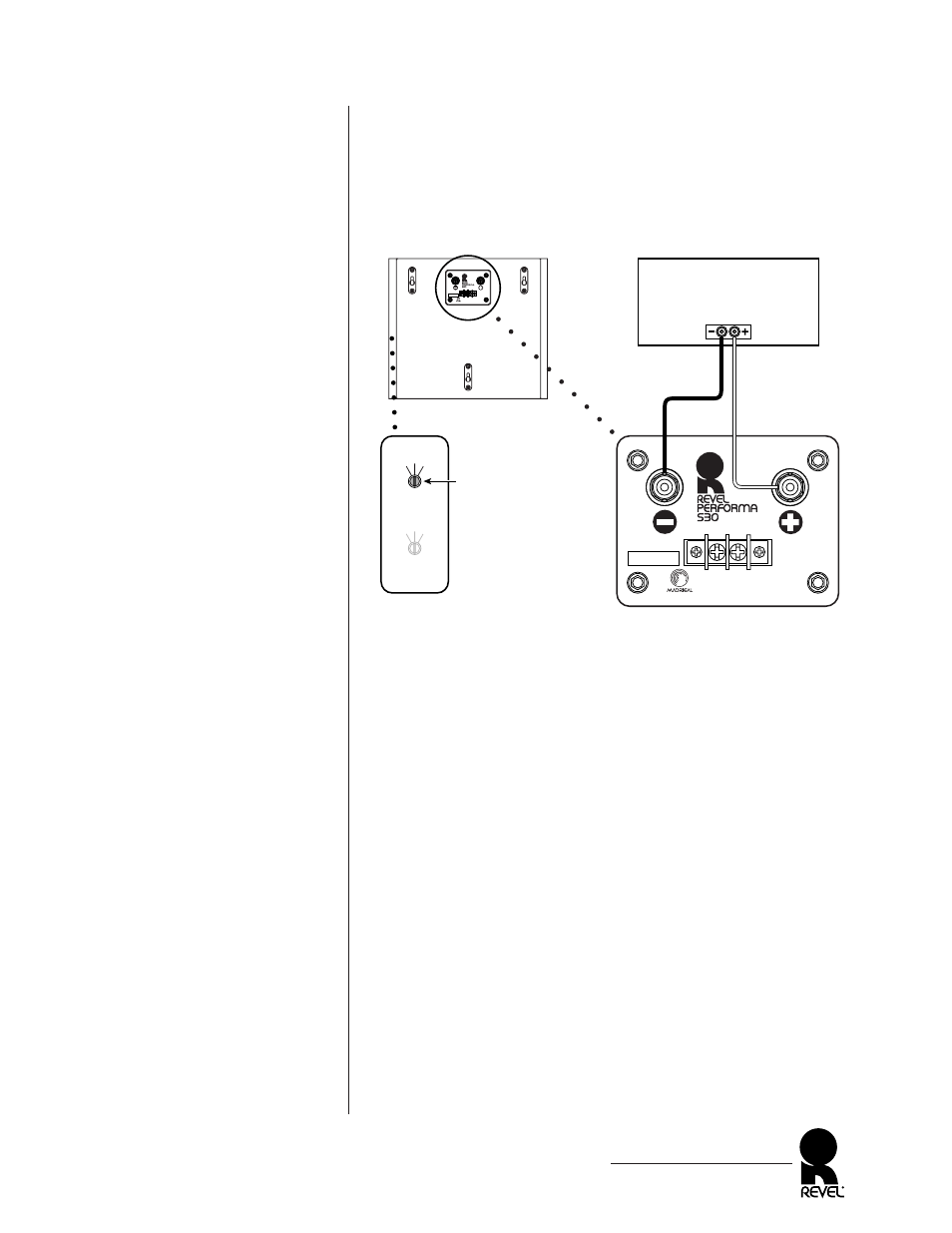

Figure 14. How to connect the
REVEL PERFORMA S30
surround loudspeaker for dipole
or monopole operation.
DIPOLE OR MONOPOLE SYSTEM CONNECTIONS
For dipole or monopole operation, connect a set of speaker wires
to an amplifier channel output, as shown in Figure 14.
REMOTE DIPOLE/MONOPOLE SWITCHING
REVEL PERFORMA S30 surround loudspeakers feature remote
dipole/monopole selection via a compatible interface with popular
system integration systems, as shown in Figure 15 (on the next
page). Moreover, most remote systems can also be set up to cus-
tomize the mode for the type of selection. For example, any
“movie” mode could automatically switch the loudspeakers to
dipole mode.
For remote operation, use a coin or small screwdriver to select
REMOTE on the front-panel control (see Figure 15 on the next
page). Energizing the Remote Dipole/Monopole connector (on the
rear panel) with a voltage from 6.8 to 12 Vdc will engage dipole
operation. Contact your Revel dealer for help in enabling this feature
for your REVEL PERFORMA S30 surround loudspeakers.
NOTE: The front panel switch is set to DIPOLE at the factory, and
must be set to REMOTE to enable remote dipole/monopole switching.
...continued on next page
REVEL PERFORMA S30
Owner’s Manual
17
REVEL
PERFORMA S30
Rear
Revel
Northridge, California
Made in U.S.A.
Serial Number xxxx xxxx
Set MODE Control To
“Dipole” Or “Monopole”
Mode/Tweeter
Controls
(on side)
Connector Panel
Dipole M
onopole
R
em
ote
0
Hi Frequency
Level (dB)
+1 -1
Revel
Northridge, California
Made in U.S.A.
red blk
Serial Number
xxxx xxxx
Amplifier
(rear)
(one channel shown)
