SINGLE WIRE CONNECTIONS
Single-wired connections are the most common. These are made
between one pair of the Gem2 input terminals and one power
amplifier output channel as shown in Figure 6.
To make single-wired connections:
1. Connect one pair of loudspeaker wires to the desired Gem2
input terminals. Then connect the same pair of loudspeaker
wires to the desired power amplifier output channel. (The
high frequency input terminals are recommended).
2. Make sure that all terminals are firmly hand-tightened.

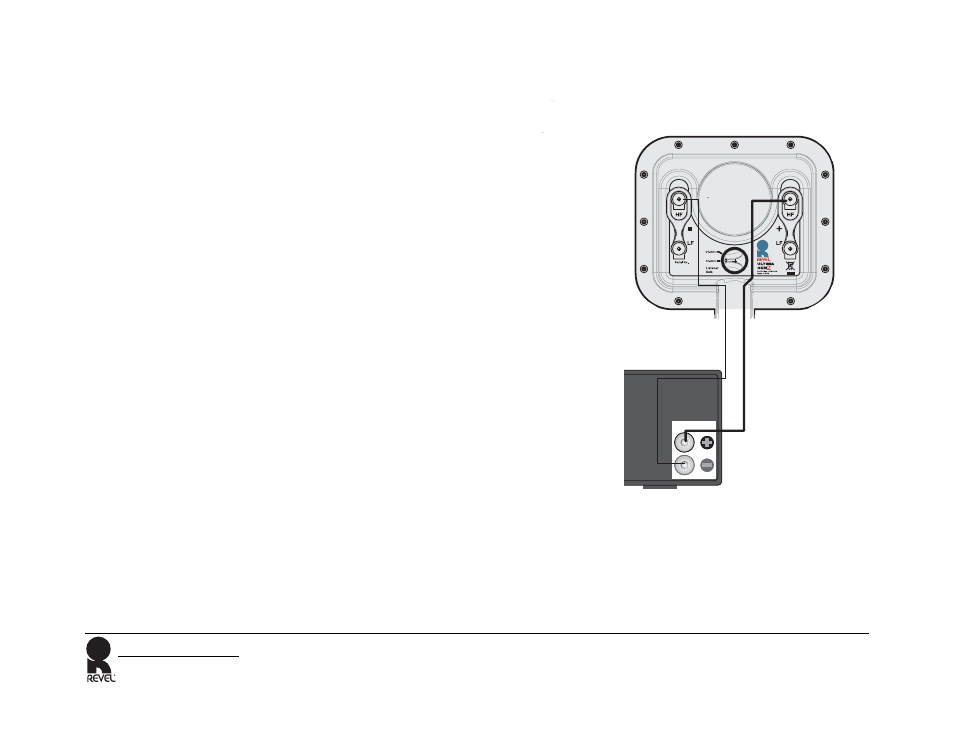

Figure 6: Single-Wired Connections
OUTPUT
POWER
AMPLIFIER
Gem2
Gem2 Rear Panel
