- 8 -

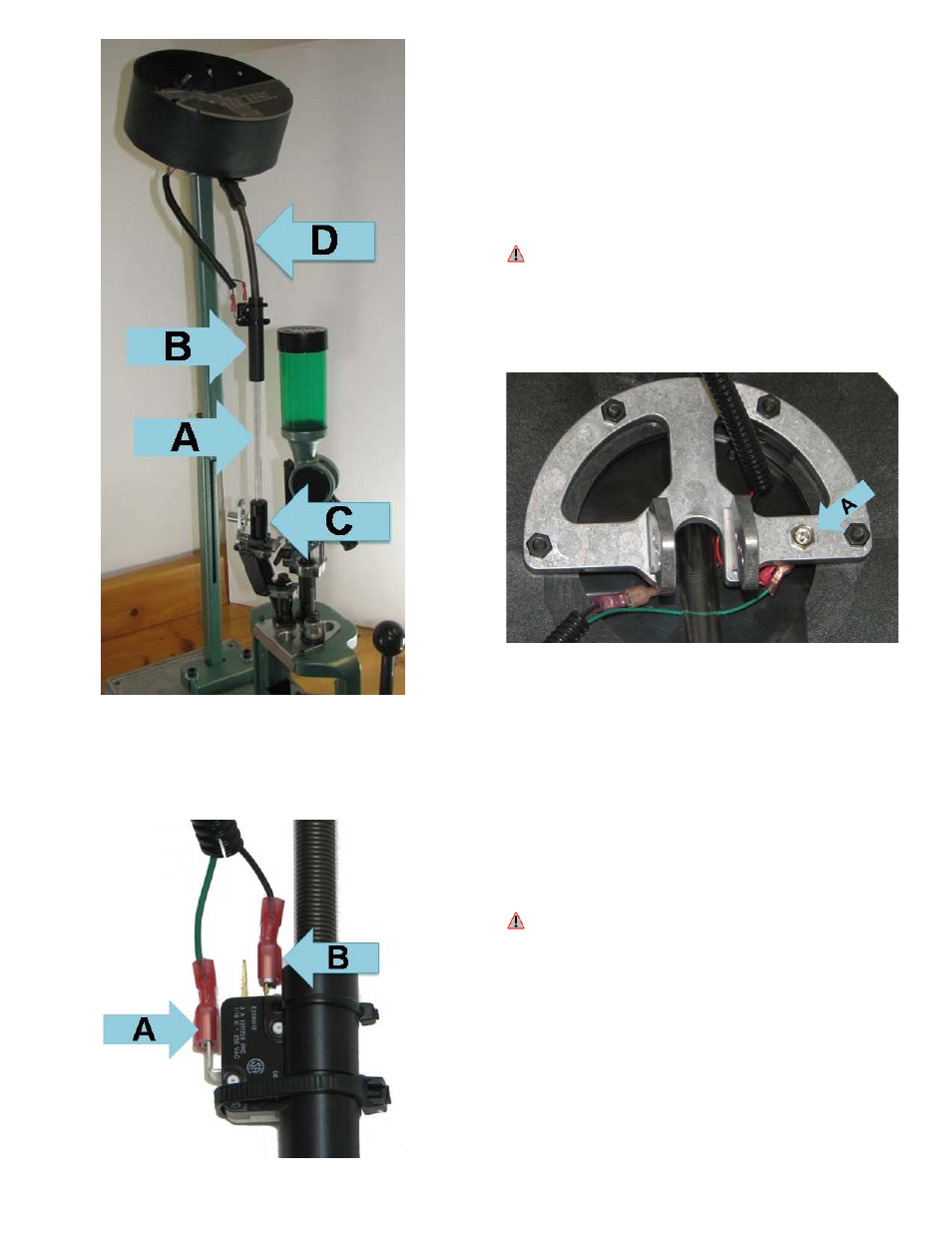

Photo 13
To install wires on the Switch Block, connect the green
wire (A) to the lower outside and the black wire (B) to the
upper inside connection. The middle connector is not
used. See Photo 14.
Photo 14
OPERATION
Note: Reference the part schematics on pages 13-15 for
more information.
Four changeable plugs are provided: US, UK, AUS and
EU. The power transformer is an automatic switching
120-240 VAC design. Select the proper plug adapter and
install onto the power transformer. Plug in the Power
Supply. Remove the packaging foam inside the Bowl
Assembly and ensure nothing else is inside the Bowl.
CAUTION: The next step will cause the Bullet Wheel
to start spinning. Make sure your fingers are clear of the
Wheel's Agitators and any other moving parts.
Connect Power Supply to the Power Jack on the
underside of the Bowl Assembly (A). See Photo 15.
Photo 15
With bullets in the Bowl and power applied, the Bullet
Wheel will orient the bullets and fill the clear Bullet Drop
Tube. The angle of the Bowl Assembly may need to be
changed. If bullets that are nose-down feed into the
tube, or correctly oriented bullets fall off the sorting
wheel, see Troubleshooting
section for more
information.
When the Powder Measure is cycled by case activation,
the Cam Plate will slide the Push Bar to allow a bullet to
drop into the Seating Die Bullet Guide. The bullet is held
in the guide until the case comes up to push the bullet
up against the free floating Bullet Seat Plug.
CAUTION A bullet will be fed with each cycling of the
Push Bar. If a powder drop problem is incurred and that
case is removed from the shell plate station, the bullet
that was fed into the Bullet Feed/ Seat Assembly MUST
be removed from the Bullet Guide. If the bullet is not
removed and the next case is introduced, there will be
two bullets in the Bullet Guide and the bullets will jam
and possibly bend or damage the free floating Seat Plug.
The cartridge then moves to the next station to be
crimped, if necessary.
Add more bullets to the Bowl as needed. NOTE: The
sorting plate may not feed the last 10-20 bullets
effectively.
