- 15 -

ITEM

NO.

PART

NUMBER

DESCRIPTION

QTY.

1

181230

6-32 x 3/8 BHCS

2

781244

Bullet Drop Tube 22 Cal

1

781222

Bullet Drop Tube 38 Cal

1

781246

Bullet Drop Body 22 Cal

1

781247

Bullet Drop Body 30 Cal

1

4

781248

Push Rod

1

5

181251

Push Bar

1

6

781249

Idler Rod

1

7

181249

Push Plate

1

8

781250

Spring Holder

1

9

181259

Bullet Drop Spring

1

10

781252

Spring Holder Cap

1

11

781251

Bullet Drop Pin

1

12

781253

Bullet Stop Pin

1

13

187545

O-Ring AS-004 Buna 70

1

14

181247

Upper Platform Right Half

1

15

181248

Upper Platform Left Half

1

16

187221

8-32 x 3/4" BHCS

1

17

181232

8-32 x 1" BHCS

2

18

181254

Platform Bracket

1

19

189066

6-32 x 1/4" BHCS

1

20

181246

Lower Platform Left Half

1

21

781254

Seat Die Body

1

22

781255

Drop Tube

1

23

181245

Lower Platform Right Half

1

781256

Seat Plug Bushing 22 Cal

1

781257

Seat Plug Bushing 30 Cal

1

187670

Retaining Ring 5144-18 (22)

1

187549

Retaining Ring 5103-25 (30)

1

781259

Seat Plug .22

1

781260

Seat Plug .30

1

27

781258

Seat Plug Stop

1

28

189009

O-Ring Parker 2-011

1

781283

Bullet Guide Assy .22

1

781284

Bullet Guide Assy .30

1

30

787500

Hex Lock Ring Assy 7/8-14

1

31

187215

6-32 X 3/8" FHCS

1

32

181250

Cam Vertical Adjustment

1

33

181252

Cam Horizontal Bracket

1

34

181253

Cam

1

35

181261

8-32 X 5/8" BHCS

1

36

186102

8-32 Hex Nut

1

37

181260

Bullet Drop Return Spring

1

38

181266

8/32 x 1 SHCS

1

39

181263

6-32 x 1/4 SHSS

1

40

181262

10-32 x 1-1/2 BHCS

1

26

29

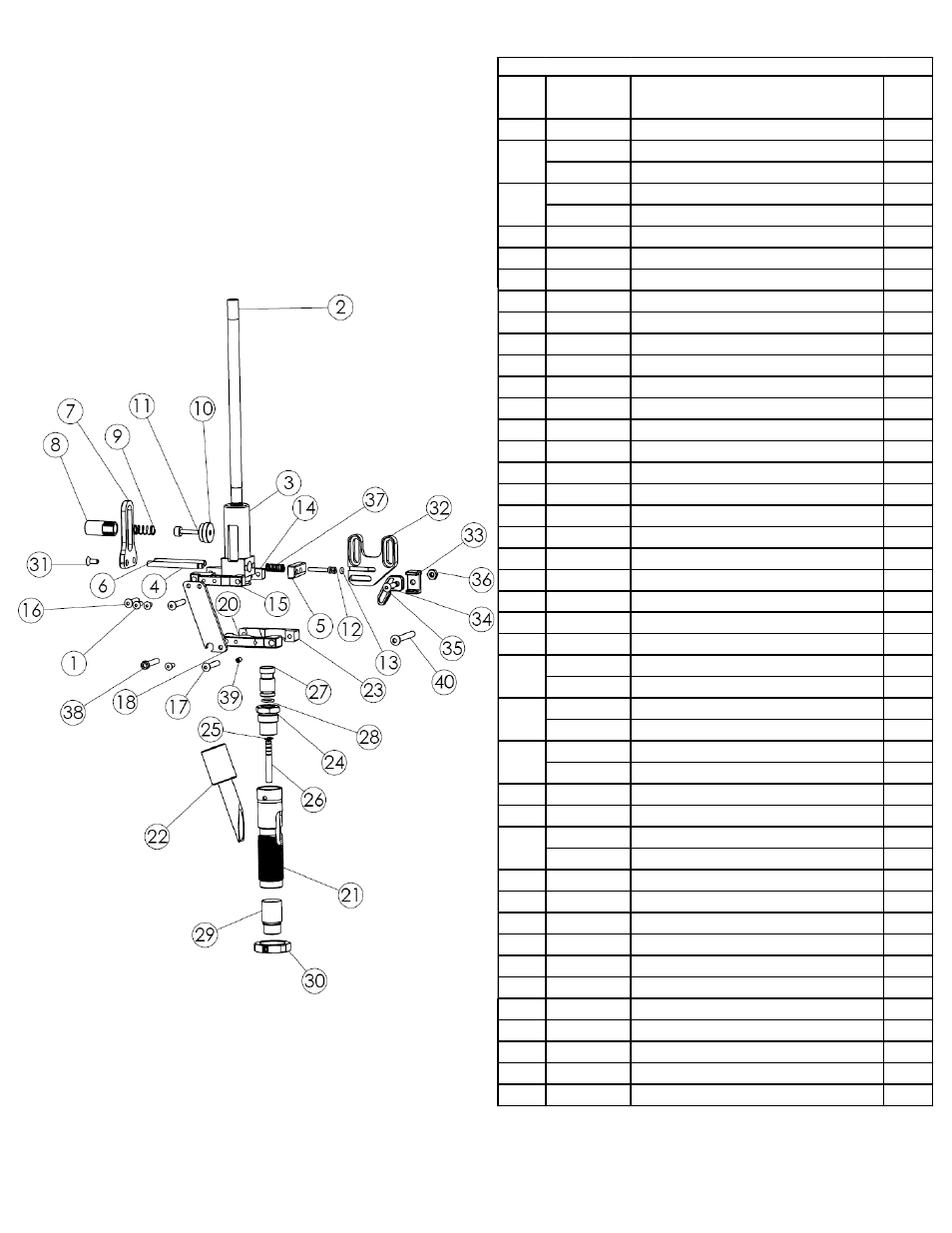

SEATER ASSEMBLY - RIFLE BULLET FEEDER
