RCBS Bullet Feeder - Rifle - Manual (Page 11)

- 11 -
TROUBLESHOOTING

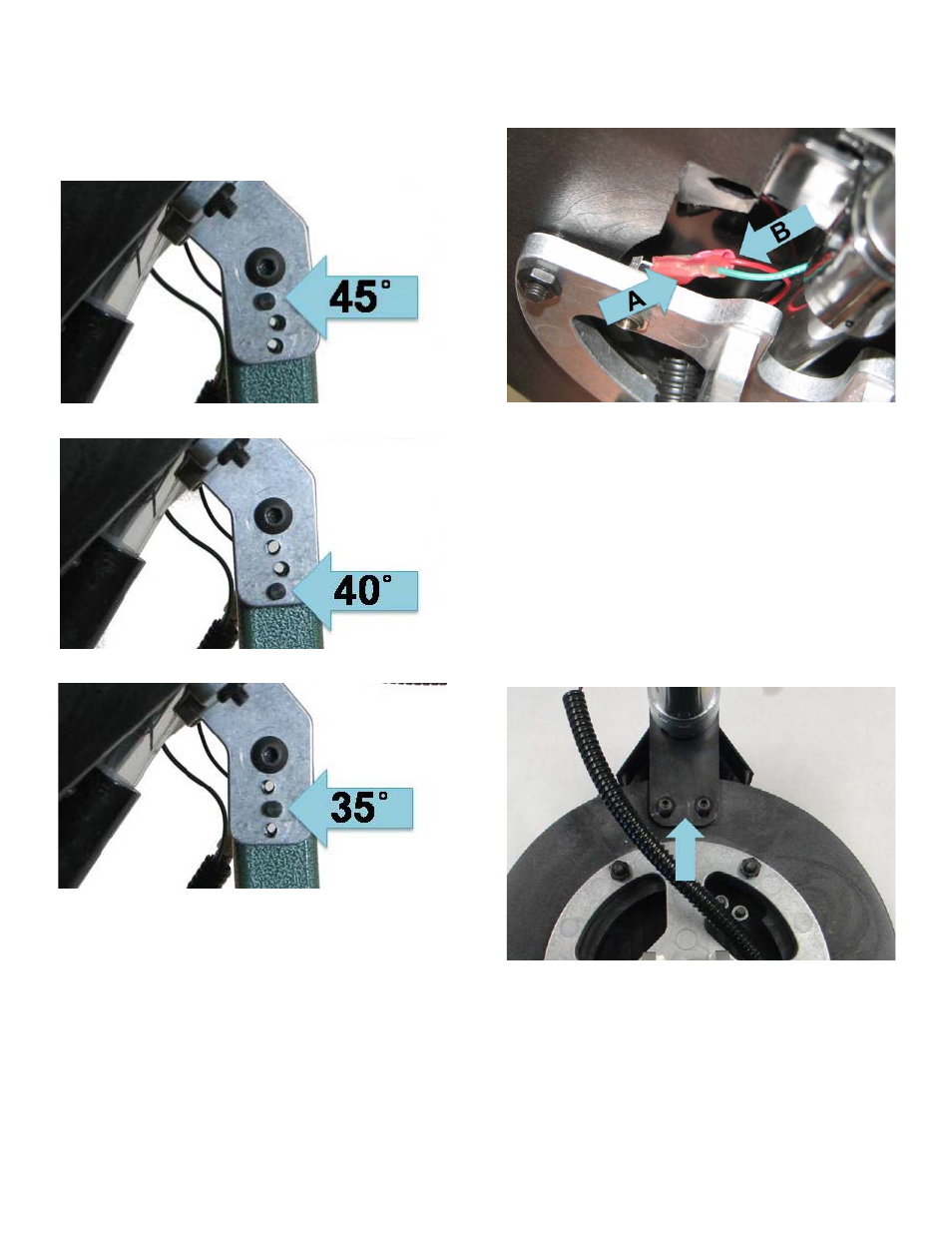

If correctly oriented bullets fall off of the sorting plate too
early, change to a shallower Bowl angle adjustment.
Move the Bracket Pin from the 45 or 40 degree position
to the 40 or 35 degree position.
45°position-top
40°position-bottom
35°position-middle
If the wires on the Power Jack should become
dislodged, the green wire (A) goes to the lower
connector, the red wire (B) goes to the upper connection
(nearest the Hub #781209). See Photo 22.
Photo 22
MAINTENANCE
Periodically wipe down the inner part of the Bowl and
Bullet Wheel to remove dust and debris.
Also, disassemble the Bullet Die Body and clean the free
floating Seat Plug and Bullet Guide to ensure smooth
function.
The drive belt may need adjustment as the belt wears.
Loosen the two BHCS (#181231 in Photo 23) and apply
more tension on the belt. Re-tighten the two BHCS.
Photo 23
