11
26ピンカメラケーブルの接続
26-pin multi-cable connection
CAMERA AUDIO OUT EXT LINE (2W I/O) EXT LINE (2W I/O)
HD/SD COMPONENT OUT VIDEO OUT
VIDEO IN
AUX
ZOOM
TC OUT FOCUS
IRIS SDI IN OUT 1 OUT 2 OUT 1 OUT 2 SDI RET IN
TC IN RET IN
TALLY EXT LINE (4W I/O)
IN OUT
Y Pb Pr
AC IN
(26-pin)
ES-600P
(26-pin camera connector)
25
50
75
100
EXT LINE (4W I/O) INTERCOM HEADSET
ES-600
CABLE select switch
CABLE
MONITOR
OUT
TC OUT
Y IN
H S U P
TALLY OUT
RET OUT
MADE IN JAPAN
AUX
Pb IN
Pr IN
ZOOM
(VIDEO OUT/TC IN)
REMOTE ▲
▲HEADSET
AUDIO IN ▲
VIDEO IN
ES-500P
26 ピンケーブルでカメラアダプタをベースステーションへ接続します。

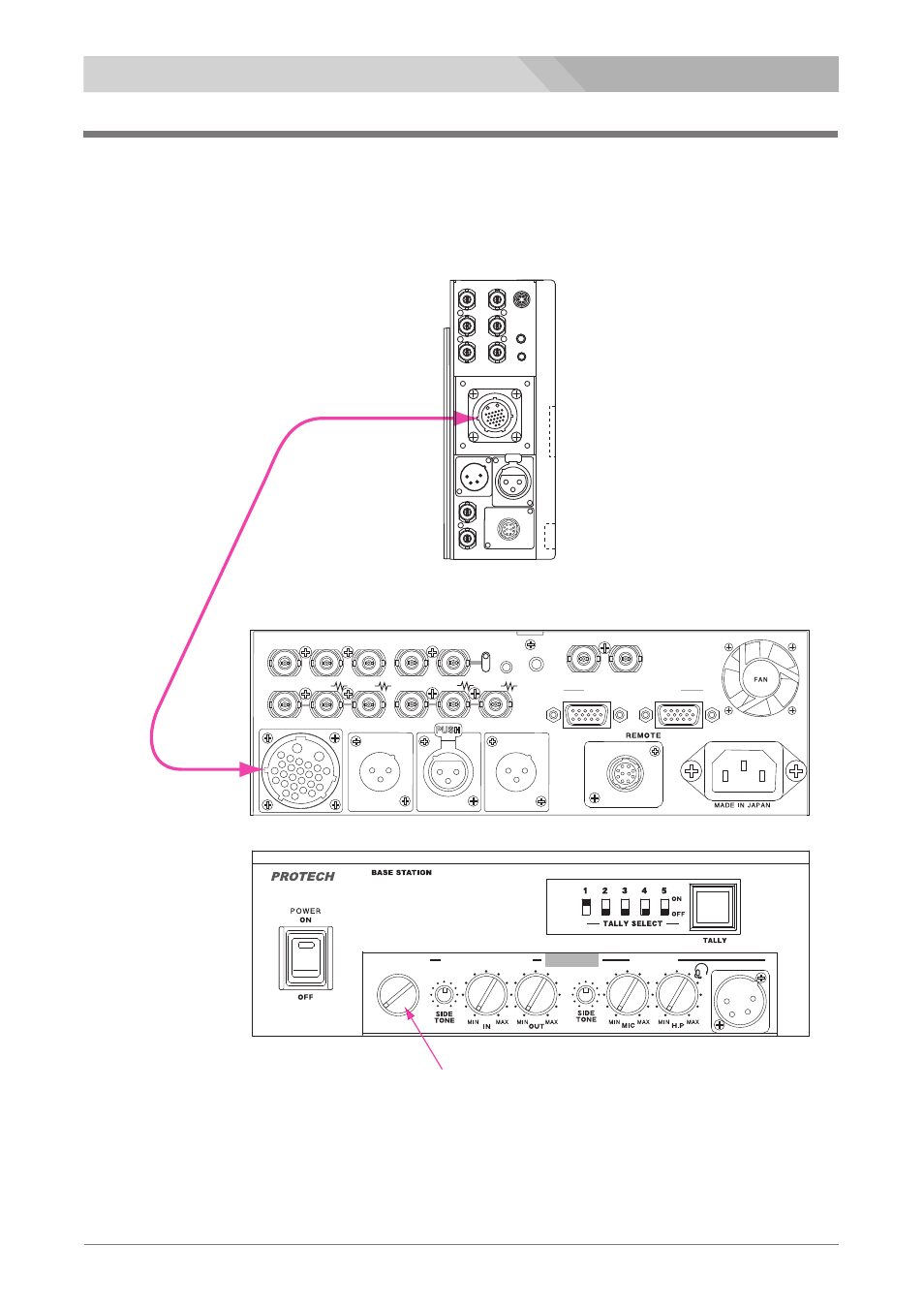

Connect the 26-pin CAMERA connector of the Camera Adaptor ES-500P to the Base Statioin ES-600P with
a 26-pin multi-cable.
1
接続された 26 ピンケーブルの長さに合わせて CABLE/25/50/75/100 ケーブル切替スイッチをセットします。
Set the CABLE select switch to the appropriate position according to the length of the 26-pin multi-cable
connected to the CAMERA connector.
2
Multi-core Studio System ES-500P/ES-600P ES-500P/ES-600P 接続方法
FOCUS IRIS
