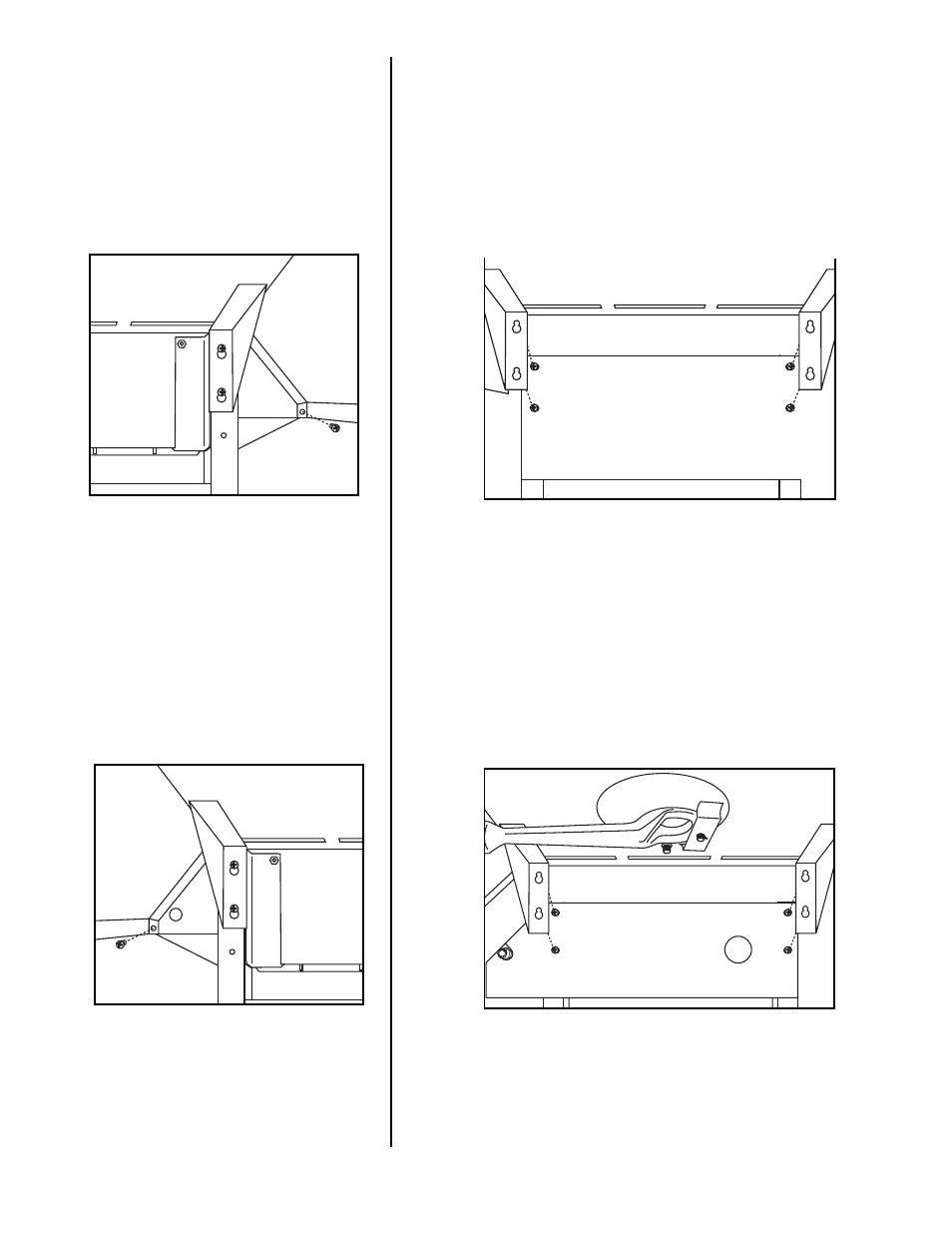

Step 3
Remove M4 X 10mm bolt from side
table front panel and grill body.
Loosen four M6 X15mm bolts
halfway. Lift table up and slide over
bolts. Remove side table from left
side of grill body.
Step 4
Remove M4 X 10mm bolt from side
burner assembly front panel and
grill body. Loosen four M6 X15mm
bolts halfway. Lift side burner
assembly up and slide over bolts.
Remove side burner assembly from
right side of grill body.
Left Side Of Grill
Right Side Of Grill
