Brinkmann ELITE SERIES 4685 - Manual (Page 13)

12

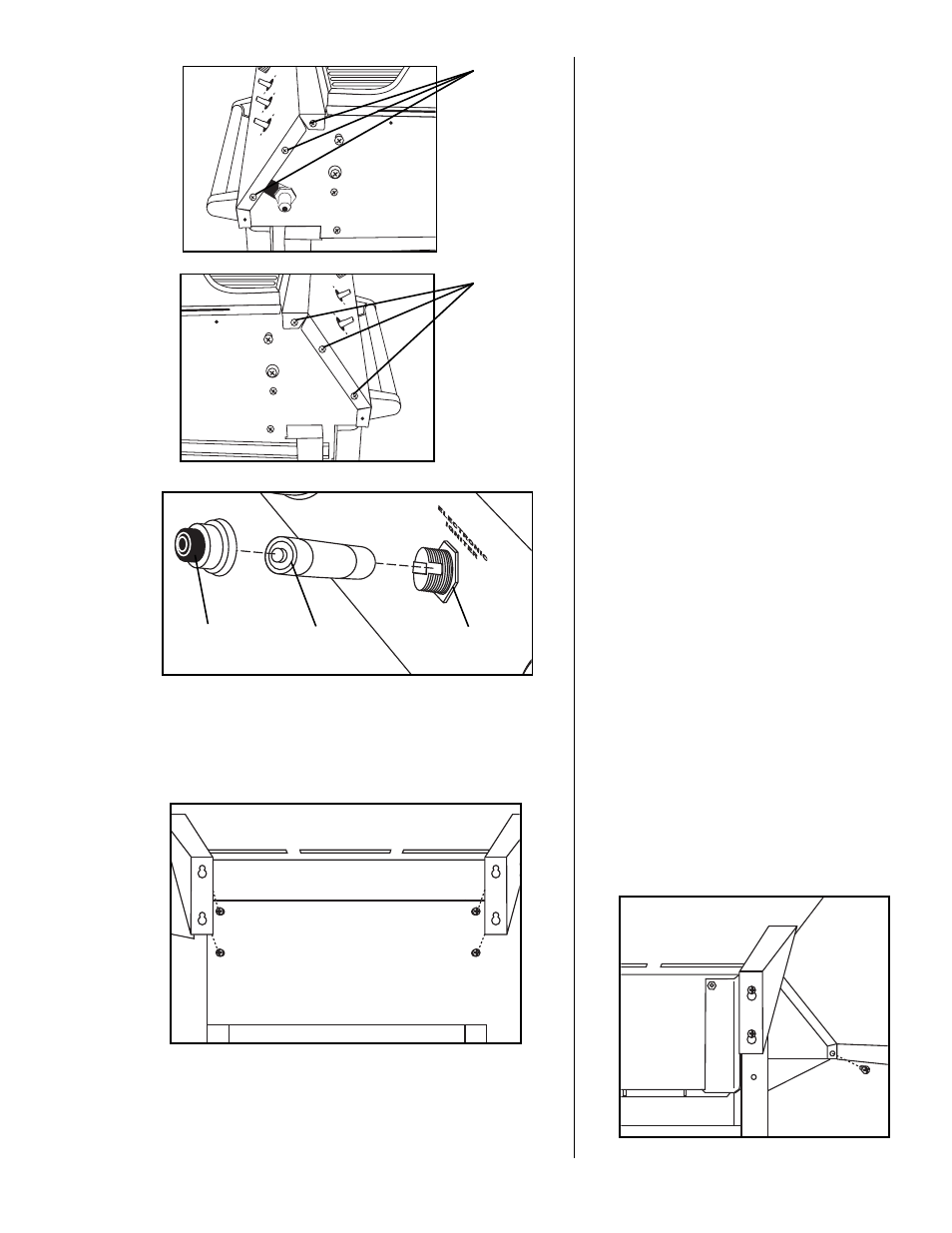

Step 16
Replace six bolts from side panel
on both right and left side of grill
body.
Step 17
Install igniter through hole in control
panel and tighten lock nut to control
panel. Replace battery, spring and
igniter cap.
Step 18
Place side table on left side of grill
body by lifting table up and sliding
down over bolts. Replace
M4 X 10mm bolts from side table
front panel and grill body. Tighten
four M6 X15mm bolts.
Igniter Cap Battery Lock Nut
Left Side Of Grill
Right side
of grill
Left side
of grill
Bolts
Bolts
