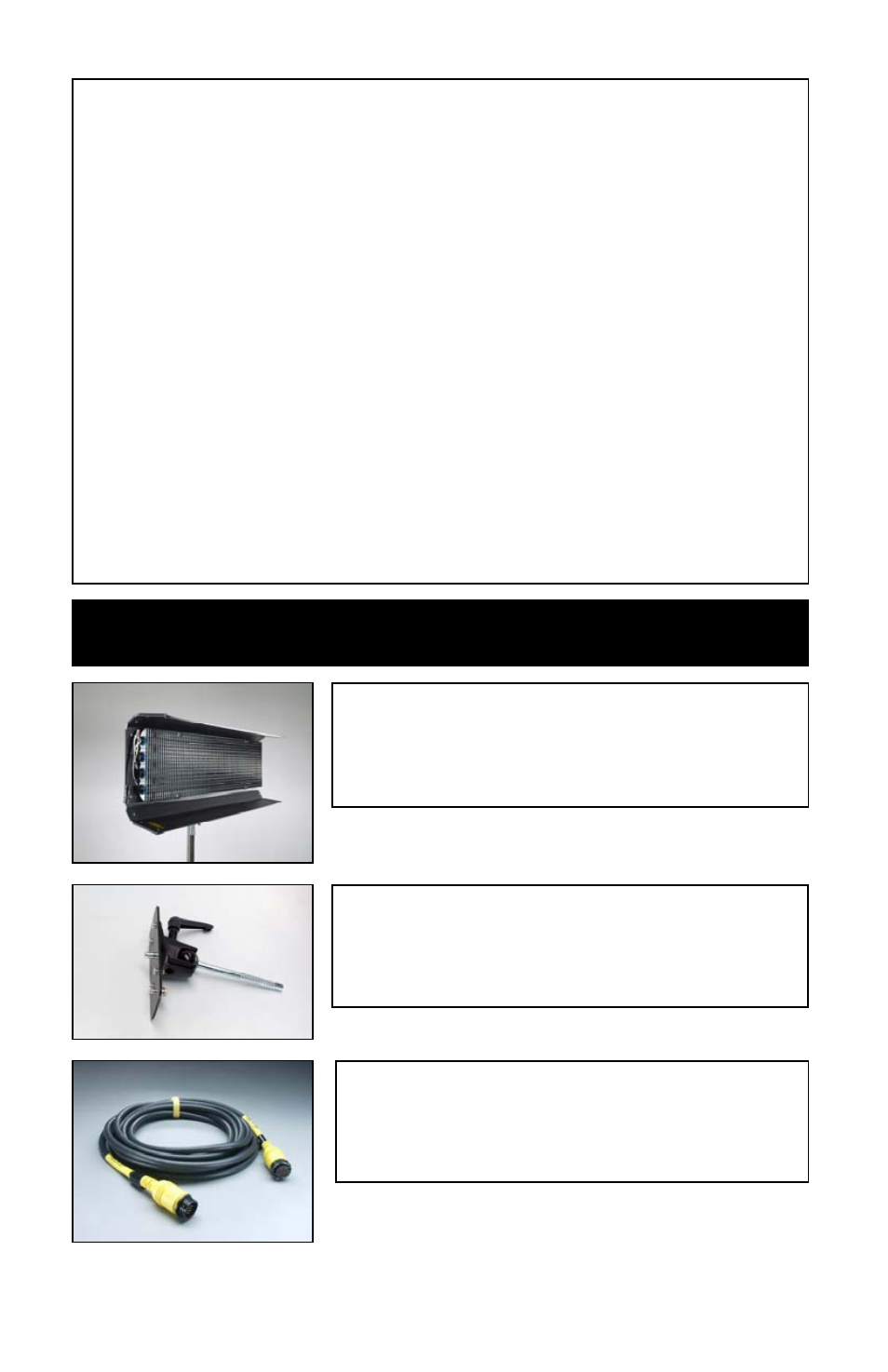

System Components
X16-25 4Bank Ext. Cable, 25ft
X16-12 4Bank Ext. Cable, 12ft
CFX-4804 4ft 4Bank Fixture
CFX-2404 2ft 4Bank Fixture
MTP-KL41 Kino 41L Mount w/ 3/8” Pin
To Chase one lamp through multiple fixtures:
1) Set ballast to Individual Lamp mode.
2) Set each ballast with its own address: 001, 006, 011, 016 and
so on.
3) Program address 005, 010, 015 etc. for 2ft operation.
4) Program lamp sequence to chase from 001 through 004, 006-009,
011-014 and so on.
5) Set end of line switch to “I” on the last unit in the DMX chain.
To Chase same lamp position simultaneously through multiple
fixtures:
1) Set ballast to Individual Lamp mode.
2) Set each ballast address to 001 (or a common address).
3) Program address 005, 010, 015 etc. for 2ft operation.
4) Program lamps to chase from address 001-004.
5) Set end of line switch to “I” on the last unit in the DMX chain.
