For example, if the DMX 4Bank base address is set at 001 the
configuration below will provide 4 lamps individually addressable through
DMX512.
Individual Lamp Mode
Setting the unit to Individual Lamp mode allows each lamp within
the fixture to have its own address. Although this option will use up
a lot of addresses, it may be preferable for certain situations.
The Individual Lamp mode is useful in achieving light effects like
flickering, chasing or creating light patterns. Individual lamps or
fixtures can be rigged into a set by using a 4Bank to Single or Double
splitter. A Single splitter can provide 4 individual cable feeds to lamps
or fixtures in a set. (For parts see page 16).
After the DMX address is entered, the Select/DMX 4Bank
automatically assigns the next 4 addresses to lamps 2, 3, 4 and the
5
th
address controls the 2ft setting. On address 5 to activate the
2ft lamp setting, set dimmer slider to full. Setting the dimmer value
under 49% or not programming address 5 will restore the 4ft setting.
Note: The 4ft/2ft select setting controls all 4 lamps equally.
Individual settings per lamp are not possible.

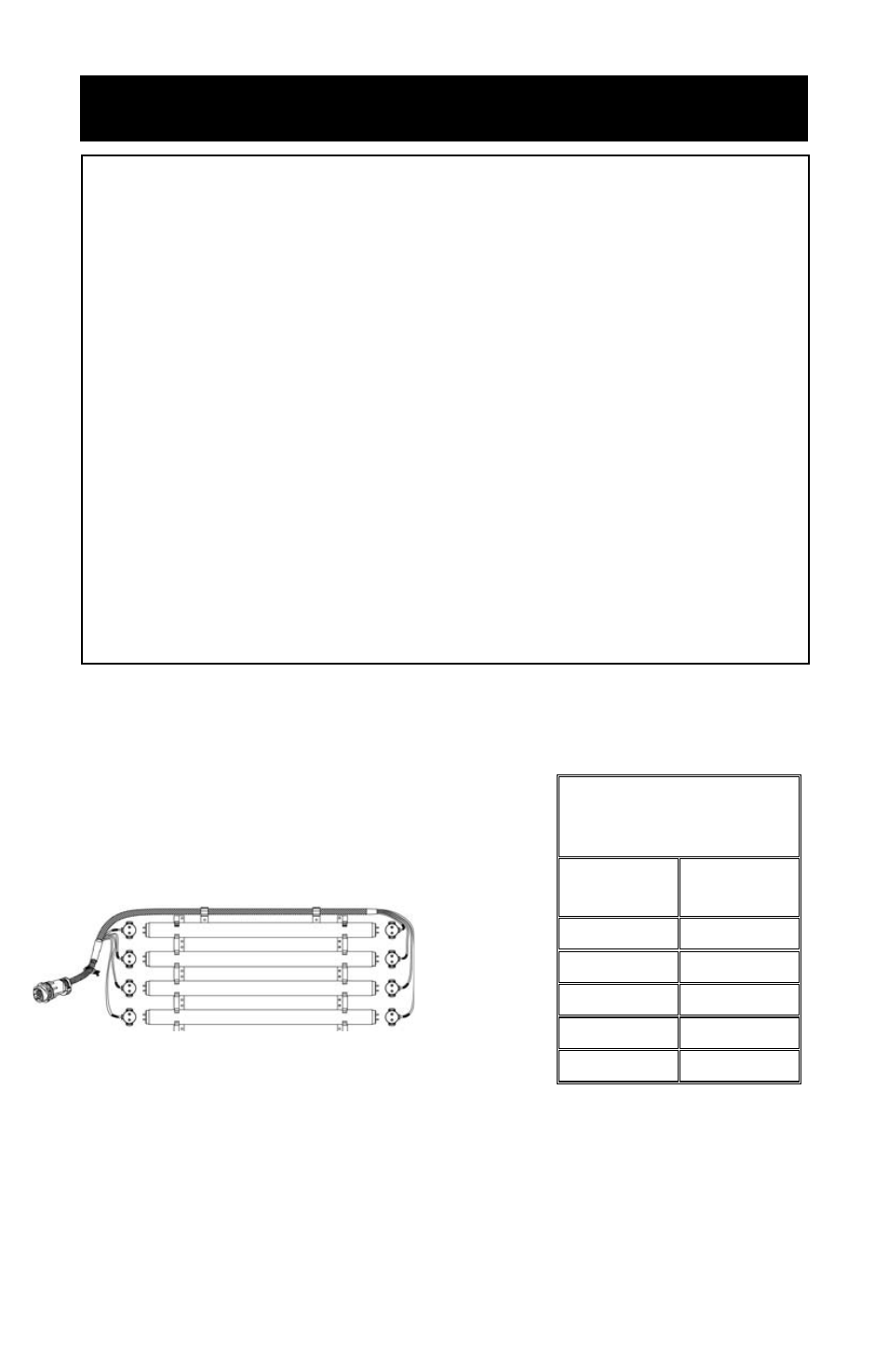

4Bank Lamp Sequence
4 ( Red )
2 ( Yellow )
1 ( Black )
3 ( Blue )
DMX Address
Sequence
DMX address 001
Lamp#
DMX
Address
Lamp 1 1
Lamp 2 2
Lamp 3 3
Lamp 4 4
2ft Setting 5
