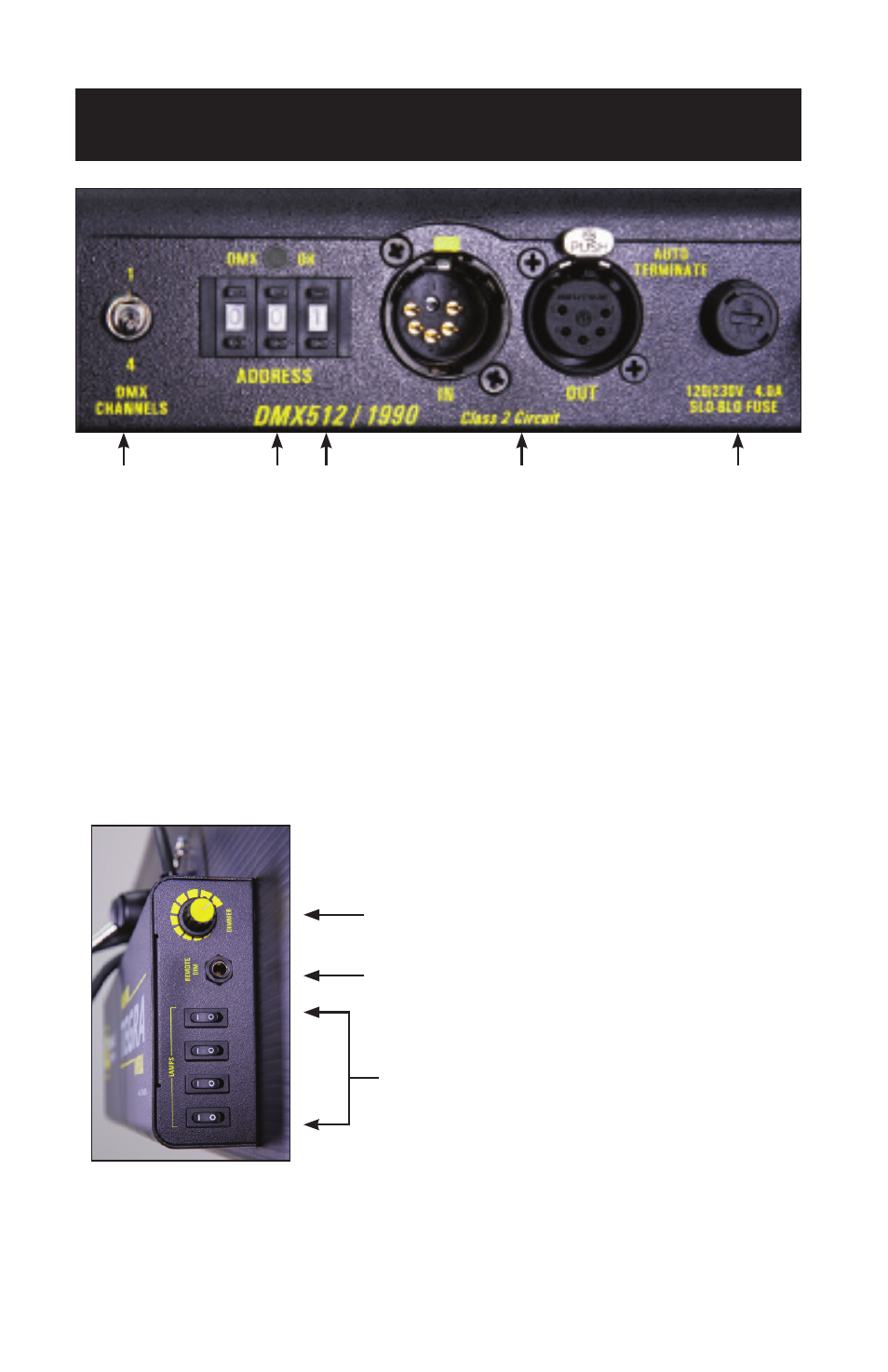

Tegra 4Bank DMX Control Panel
A) DMX Channels: Sets the fixture to use 1 DMX channel to dim all 4 lamps
or 4 DMX channels to control lamps individually.
B) DMX OK: Lights if valid DMX signal is present.
C) DMX Address: Sets DMX address of fixture.
D) DMX-In & DMX-Out: DMX-In receives signals from Dimmer Board.
DMX-Out relays DMX signals through other fixtures or instruments.
(Note: Each Tegra 4Bank DMX fixture has an “ AUTO TERMINATE”
feature. The last fixture that does not have an XLR cable attached to the
DMX “Out” port will automatically terminate.)
E) Fuse: Provides circuit protection. Note: If fuse is “blown” or “open”,
replace with same type of fuse rating as marked.
F) Dimmer Knob: Manual dimming control
G) Remote Dim: Input jack for Remote Dimmer (DIM-5)
H) Lamp Switches: Turns individual lamps on manually.
8
A B C D
H
E
G
F
