Kino Flo Tegra 4Bank DMX (TEG-450) User Manual
Page 4
4

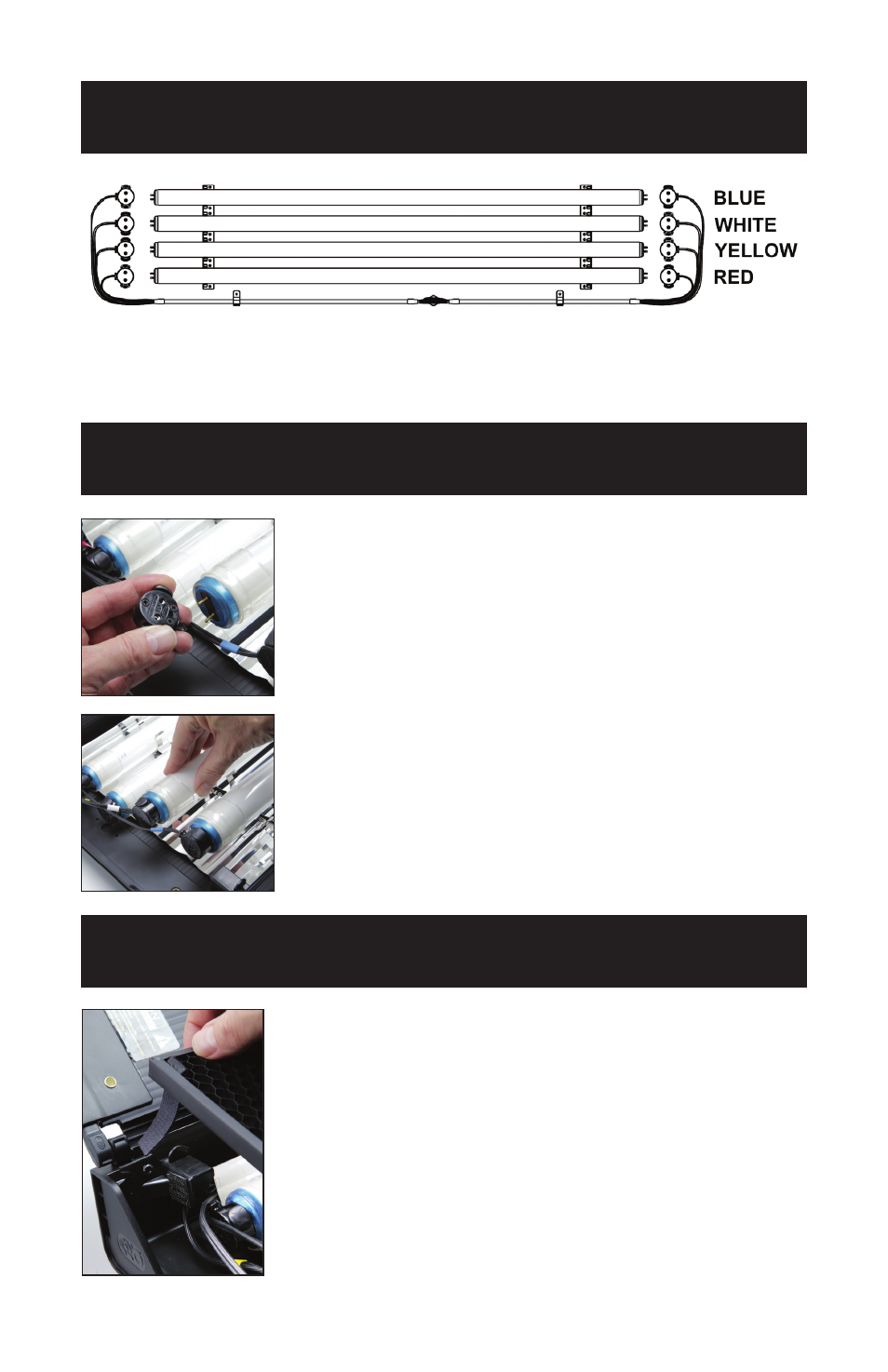

Inserting Lamps
Lamp Harness Color Codes
Applying Louver
Locking Lamp Connector:
Depress both tabs on lamp connector and apply to
lamp pins. Match the Harness color-codes at each
end of the lamp.
Push lamps into the fixture’s Lamp Holder Clips.
The Louver is fastened to the reflector with 4 Velcro straps.
The Harness wiring is color-coded. The same color-code must match at
each end of the lamp for proper operation.
