Brother FAX 4750 User Manual
Page 158
17 - 24
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
Replacing the Toner Cartridge
WARNING

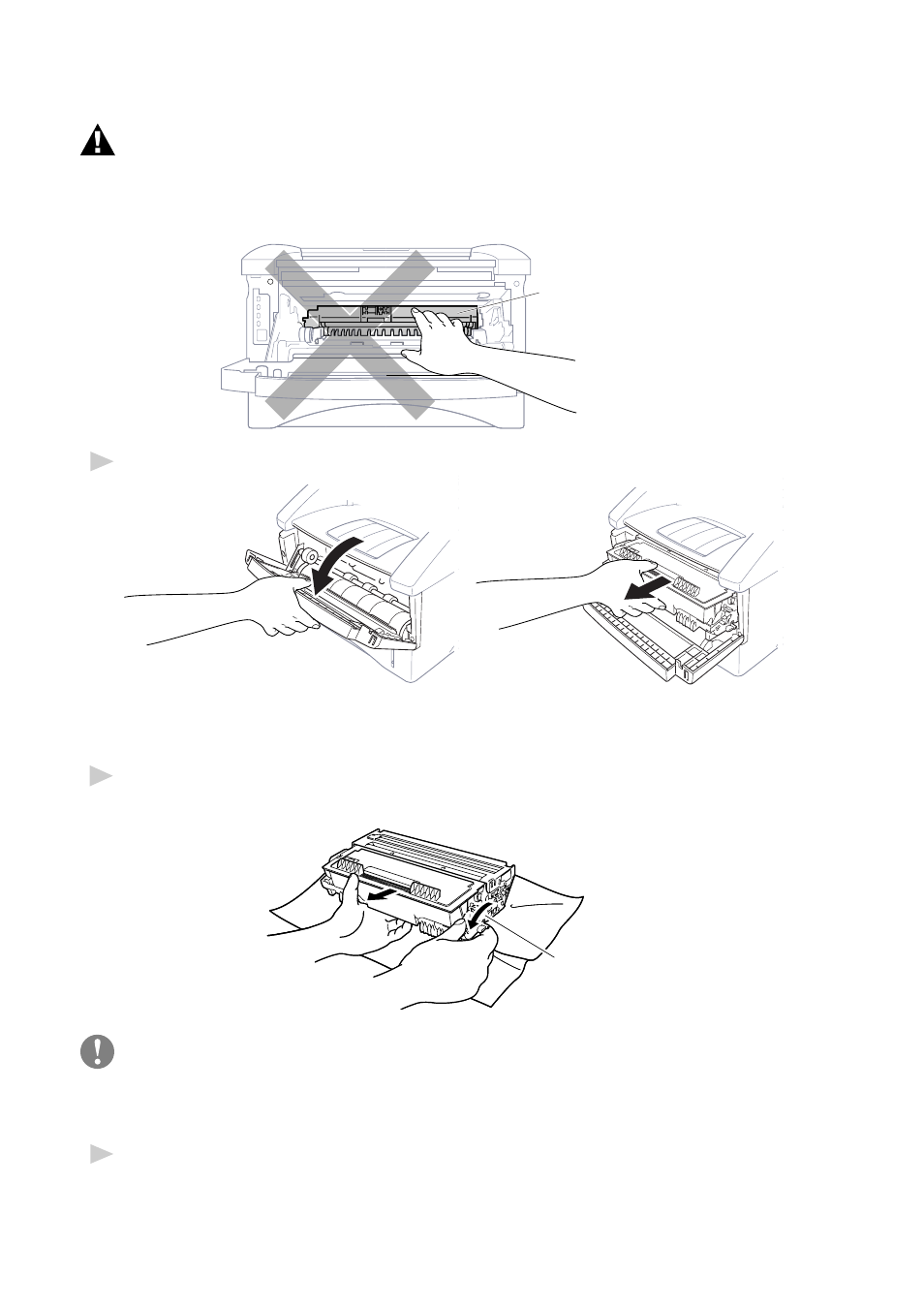

Just after you use the machine, some internal parts of the machine will be
extremely HOT! So, never touch the shaded parts shown in the
illustration.
HOT!
1
Open the front cover and pull out the drum unit.
Place the drum unit on a drop cloth or large piece of disposable paper to
avoid spilling and scattering the toner.
2
Hold down the lock lever on the right and pull the toner cartridge out of
the drum unit assembly.
Lock
Lever
Caution
Handle the toner cartridge carefully. If toner scatters on your hands or
clothes, immediately wipe it off or wash it with cold water.
3
Unpack the new toner cartridge. Place the used toner cartridge into the
aluminum bag and discard it according to local regulations.
