Settings for HK AUDIO VX 2400 amps:
Gain VX 2400: + 35 dBu
Max Output ( Firnet): + 6 dBu
The FIRNET’s limiter cannot effectively attenuate
signals when set to other dBu levels, so connected
speakers may be damaged or destroyed.
7.4.5.5 Muting Outputs

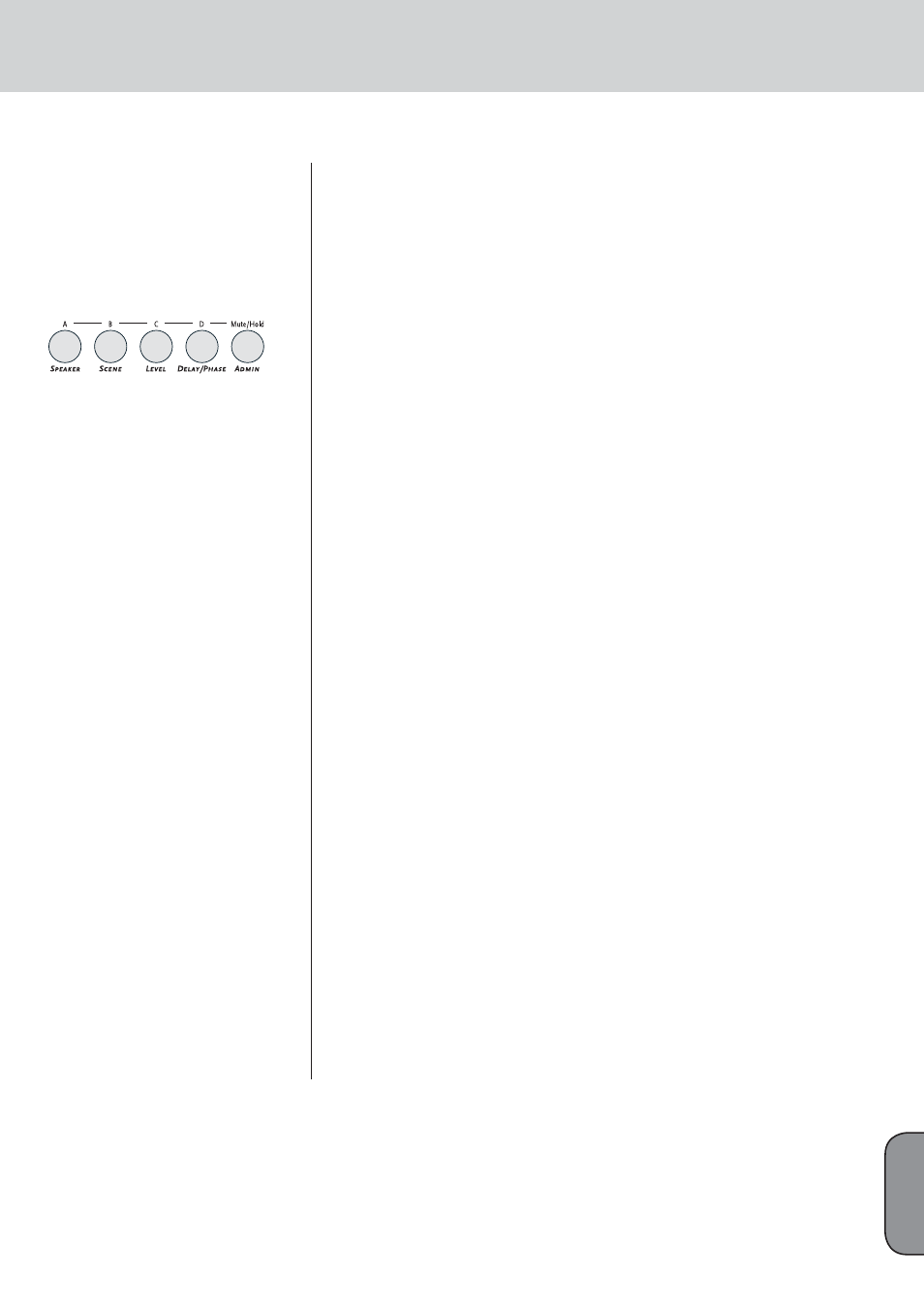

The SPEAKER, SCENE, LEVEL, DELAY/PHASE and
ADMIN keys serve the second purpose of muting
outputs. The label above each key tells you its
mute function. To mute outputs, press and hold
the MUTE/HOLD key and press the key of the
output you wish to mute (key A to D for Output
A to Output D). The Lim/Mute LED in the given
output’s LED chain lights up red to indicate the
output is muted. Follow the same procedure to
enable the output.
7.5 Firmware
The FIRNET controller ships with the current
fi rmware. LIPAN software lets you update the
device with future fi rmware versions. See chapter 4
LIPAN PC Software, to learn more about fi rmware
updates.
8 Technical Data
Connectors
Analog Input 3-pin XLR female
Pin assignments 1 = ground, 2 = signal (+), 3 = signal (-)
Input impedance 9 k-ohms
Maximum input level Variable; 6, 12, 18, and 24 dBu
Dynamic range, input > 128 dB (A)
Digital input 3-pin XLR female
Pin assignments 1 = ground, 2 = signal, 3 = signal
Input impedance 110 ohms
Protocol AES 3 (AES/EBU)
Clock rate 48 or 96 kHz, and 96 kHz internal
Synchronization To an external source (slave mode)
Digital output 3-pin XLR male
Pin assignments 1 = ground, 2 = signal, 3 = signal
Output impedance 110 ohms
Protocol AES 3 (AES/EBU)
Signal processing Refresh signal form and level
(Bypass at power failure)
Analog outputs 3-pin XLR male
Pin assignments 1 = ground, 2 = signal (+), 3 = signal (-)
Output impedance 35 ohms
Maximum output level Variable; 6, 12, 18, and 24 dBu
Dynamic range, output > 125 dB (A)
Mains voltage connector Three-pole non-heating equipment connector
Mains voltage / frequency 100 to 240 V / 50 - 60 Hz
Power consumption 40 VA
Max. curr. cons. at 100 V mains volt. 400 mA
Max. curr. cons. at 230 V mains volt. 175 mA
Ethernet X port RJ-45, RJ-45, cross-connected
Ethernet II port RJ-45, RJ-45, direct-connected
Audio data (Linear Through mode)
Frequency response (-1 dB) 5.5 Hz to 34 KHz
THD+N (20 Hz to 20 kHz) AD>DA input level 21dBu,
R=100k, 96 kHz 0.0012%-0.0013%
AES>DA input level -3dBFS,
R=100k, 96 kHz 0.0010% - 0.0012%
Latency (incl. limiter): AD > DA 96 KHz 3.15ms
AD > AES/EBU 96 KHz
AES/EBU > A 96 KHz
+ FIR fi lter (Cohedra / Coh. Compact) 5.8 ms
Digital signal processing
Internal sampling rate 96 kHz
Internal data format 32-bit fl oating point
AD converter resolution 28 bits
DA converter resolution 24 bits
Operating conditions
Temperature range -10° C to +70°C
Hardware specifications
Weight 6.6 lbs. • 3 kg
Measurements (D x H x W) 48 x 4.4 x 23.2 cm
18-7/8 x 17-5/16 x 9-1/8"
