3.3 Faceplate Panel

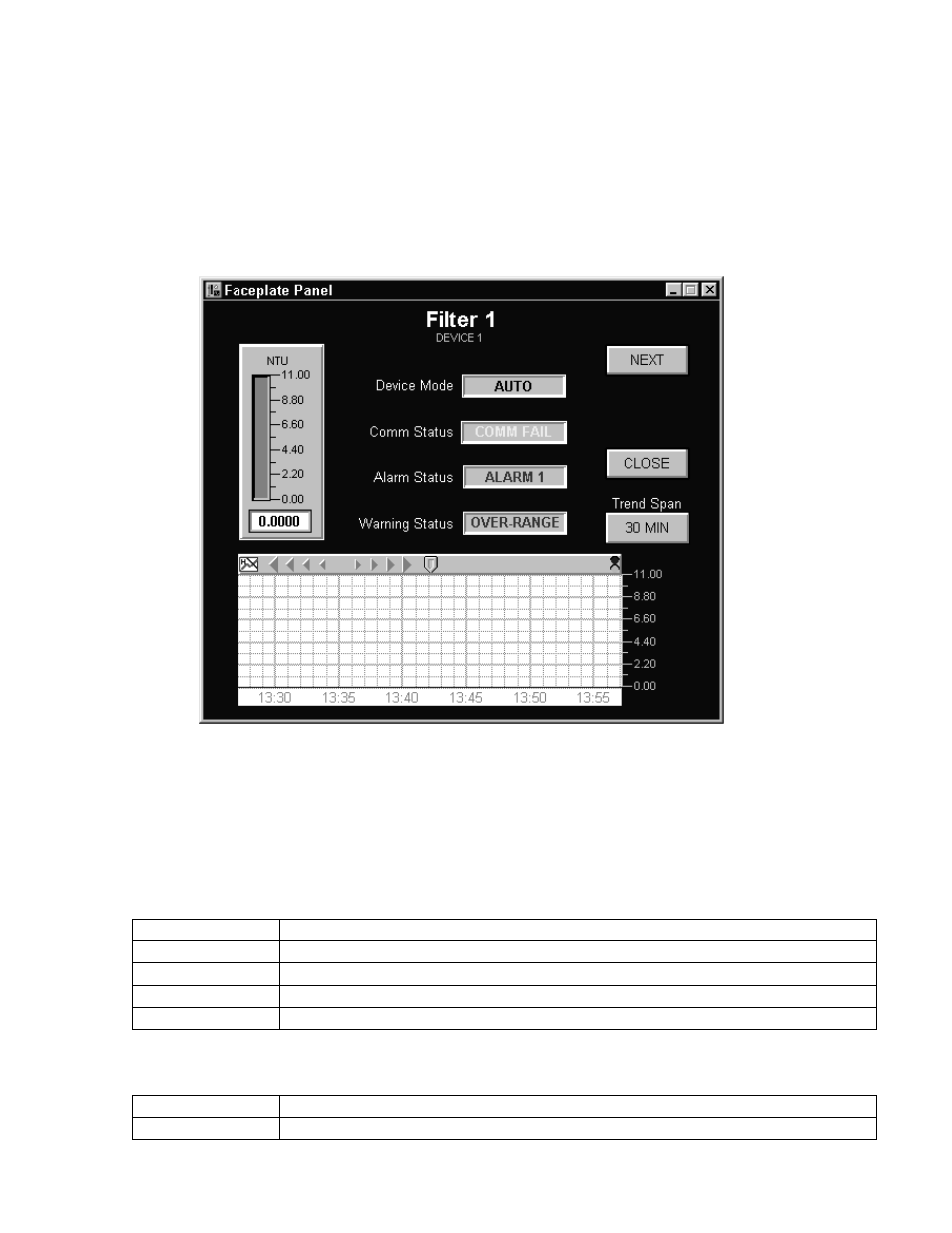

Fig. 3-2
The Faceplate Panel is accessed using the View Device push button on the
Summary panel or by clicking on any of the individual device summary displays
on the Summary panel. This panel provides the following information for each
device:
Device Mode: The modes indicated are as follows:
Mode Description
Unknown
Computer has not yet talked to device to determine the mode.
Calibrate Device mode is “Calibrate”.
Set-Up Device mode is “Set-Up”.
Auto Device mode is “Auto”.
Comm Status: The Comm Status field will display one of the following values:
Comm Status Description
Comm Fail Computer cannot talk to device.
