7
—
NOTES:
1. Dimension in ( ) is in millimeters.
2. Hook rigging shackles through holes in base rail as shown in detail
‘‘A.’’ Holes in base rails are centered around the unit center of grav-
ity. Use wooden top skid when rigging to prevent rigging straps
from damaging unit.
3. Weights include base unit without economizer. See Table 1 for
economizer weights.
CAUTION:
All panels must be in place when rigging.

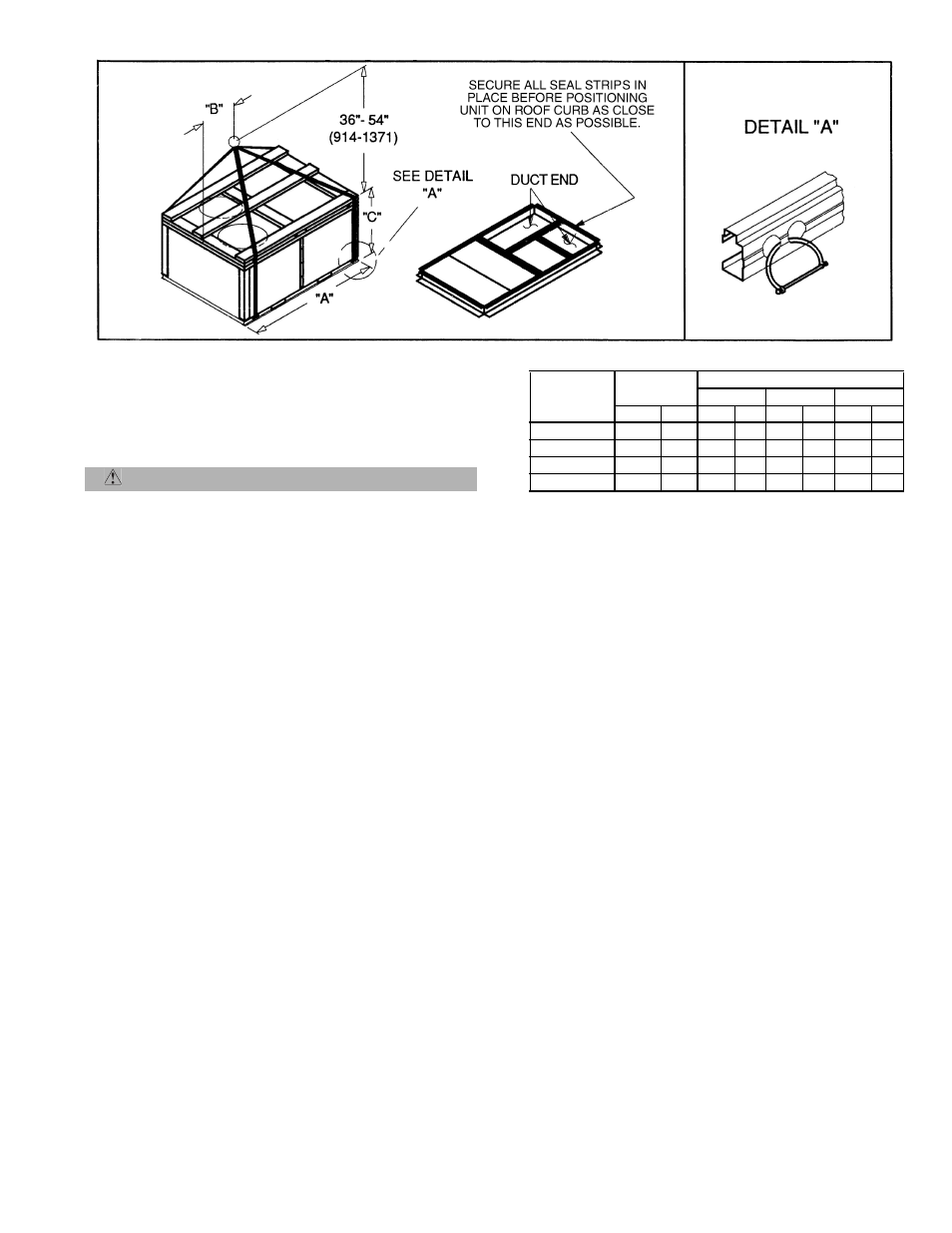

Fig. 6 — Rigging Details
UNIT
OPERATING
WEIGHT
DIMENSIONS
‘‘A’’
‘‘B’’
‘‘C’’
lb
kg
in.
mm
in.
mm
in.
mm
580F090,091
870
395 87.38 2219 40.25 1022 41.31 1050
580F102,103
880
399 87.38 2219 40.25 1022 41.31 1050
580F120,121
1035
469 87.38 2219 40.25 1022 49.31 1253
580F150,151
1050
476 87.38 2219 40.25 1022 49.31 1253
