Bryant 580F User Manual

Page 19

Text mode
Original mode

—

TOP
PANEL

INDOOR COIL
ACCESS PANEL

24 9/16”

SCREW

HOOD DIVIDER

LEFT
HOOD
SIDE

40 3/8”

(FIELD-SUPPLIED)

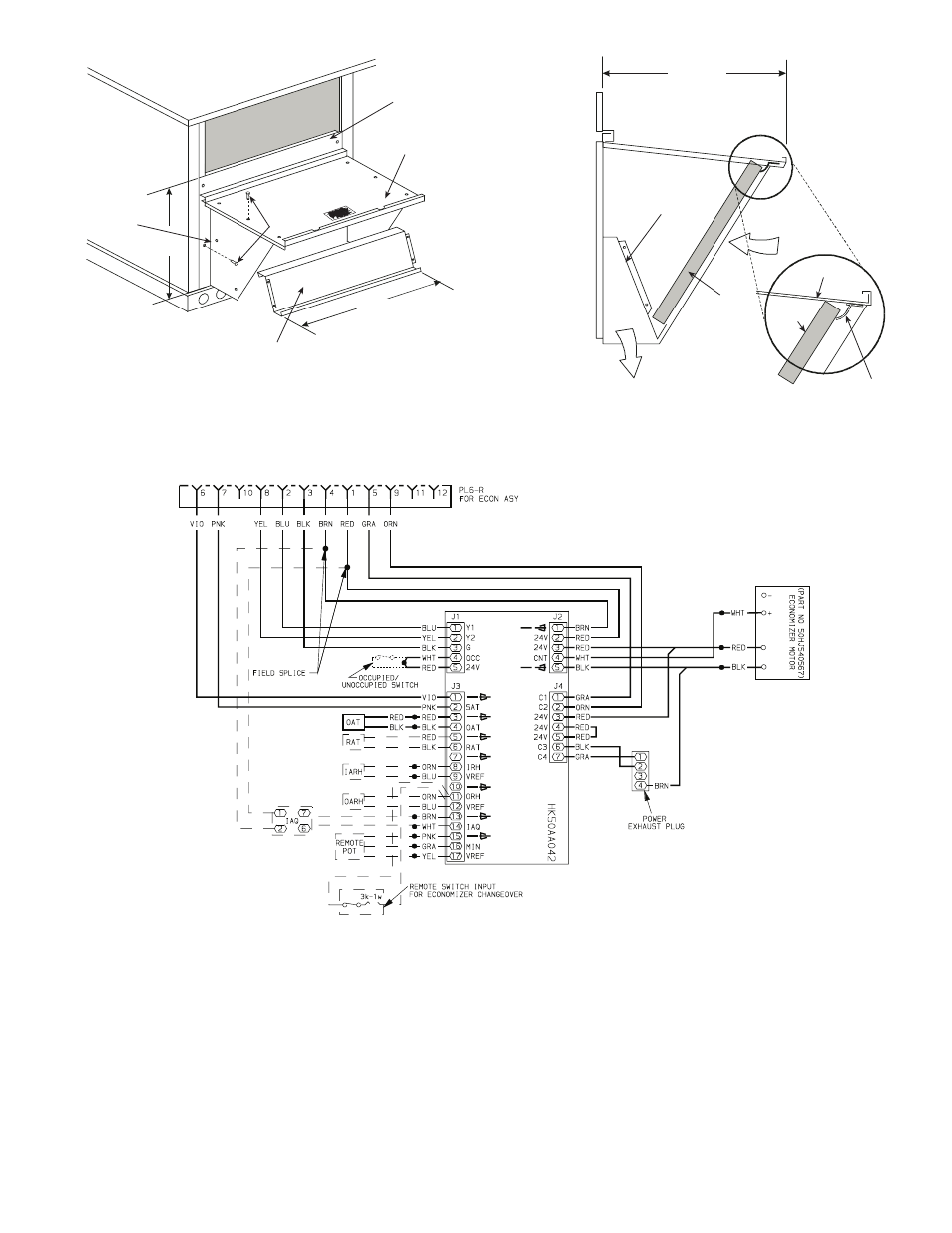

Fig. 20 — Outdoor-Air Hood Construction

22 1/4”

DIVIDER

BAROMETRIC
RELIEF

CLEANABLE
ALUMINUM
FILTER

FILTER

HOOD

FILTER
CLIP

OUTSIDE
AIR

Fig. 21 — Filter Installation

LEGEND

NOTES:

1. Terminals 13-17 are wired to 5-pin plug assembly (P/N CRE+PLUG001A00).
2. Pin numbers are not printed on the controller. They are provided in this book as a reference.

Fig. 22 — EconoMi$er+ Wiring

ECON — Economizer

OAT — Outdoor-Air Temperature

IAQ

— Indoor-Air Quality (4 to 20 mA)

ORH — Outdoor-Air Relative Humidity (Sensor)

IARH

— Indoor-Air Relative Humidity (Signal)

POT — Potentiometer

IRH

— Indoor-Air Relative Humidity (Sensor)

RAT

— Return-Air Temperature

OARH — Outdoor-Air Relative Humidity (Signal) SAT

— Supply-Air Temperature
