Service of Power Components
CAUTION: DO NOT handle propeller parts
while the fl ight battery is connected.
Personal injury could result.

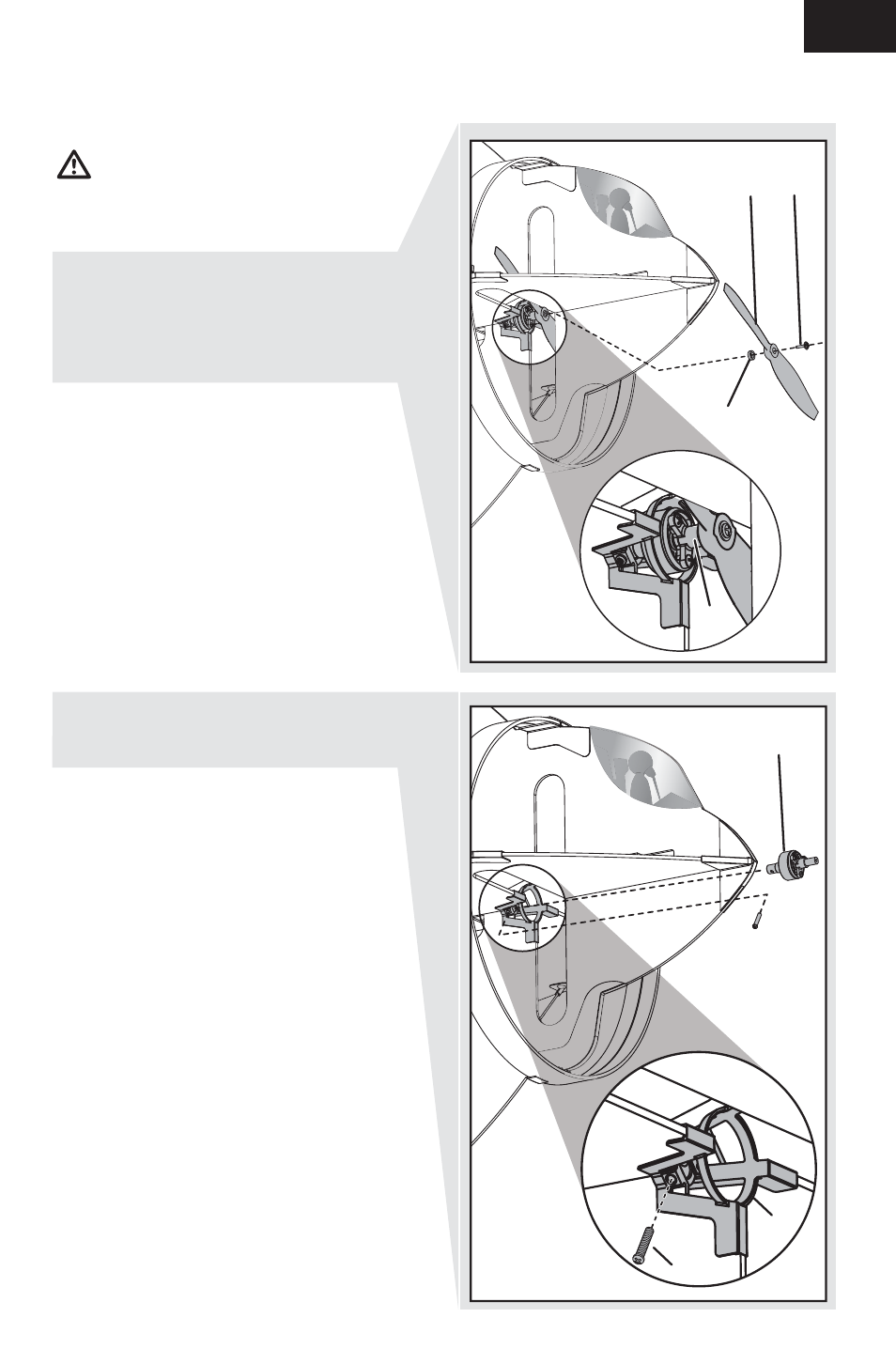

1. Gently hold the nose of the aircraft and remove
the prop screw (A), propeller (B) and propeller
spacer (C) from the motor shaft (D). Hold the
motor so it does not turn when the screw is
turned.
2. Disconnect the motor wires from the ESC
wires.
3. Remove the screw (E) and the motor (F) from
the motor mount (G) on the fuselage.
4. Assemble in reverse order. Correctly align
the wire colors and connect the motor to
the ESC. Install the propeller with numbers
facing to the front of the aircraft.
A
D
B
F
G
C
E
