Note:.Make.sure.to.check.the.balance.of.

the.propeller.after.enlarging.the.hole.in.the.

propeller.

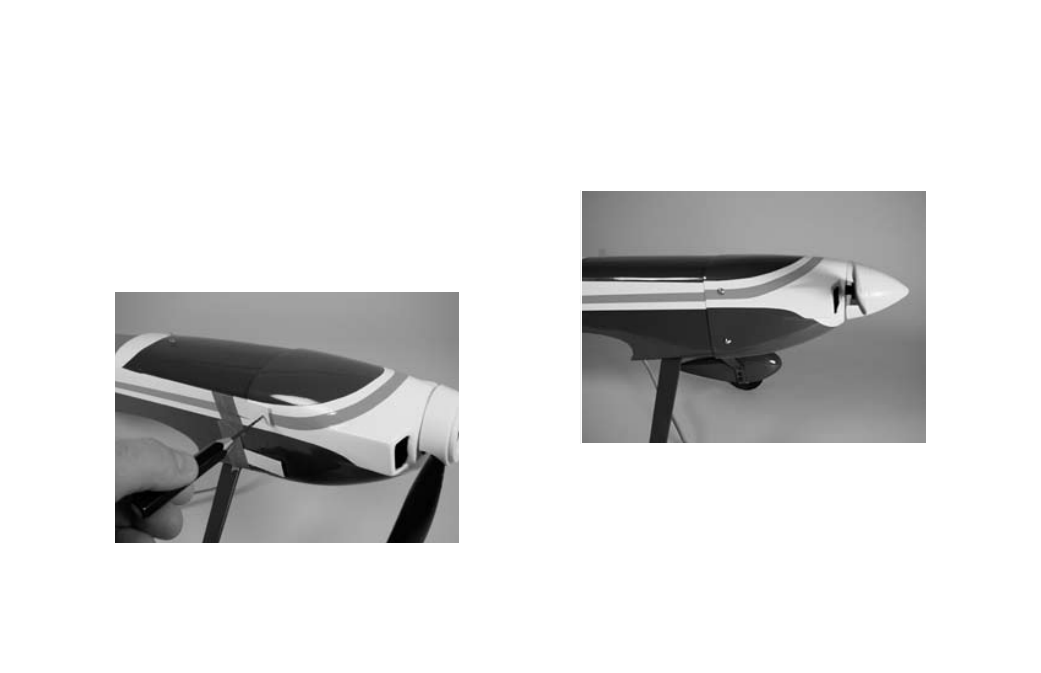

5. Position the cowl so it is around 1/16"–1/8"

(1.5mm–3mm) from the spinner backplate. Use
the cardstock to drill four 1/16" (1.5mm) holes
through the cowl into the cowl mounting tabs in
the fuselage.

6. Enlarge the holes in the cowl using a 5/64"

(2mm) drill bit. Secure the cowl using four
2mm x 8mm sheet metal screws. Snap the
spinner cone onto the spinner backplate once
the cowl is secure.

Hint:.Use.thin.CA.to.harden.the.holes.drilled.

into.the.cowl.mounting.tabs..This.will.help.to.

prevent.the.screws.from.vibrating.loose.in.flight.

18
