1-33D-7
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL JULY, 2011

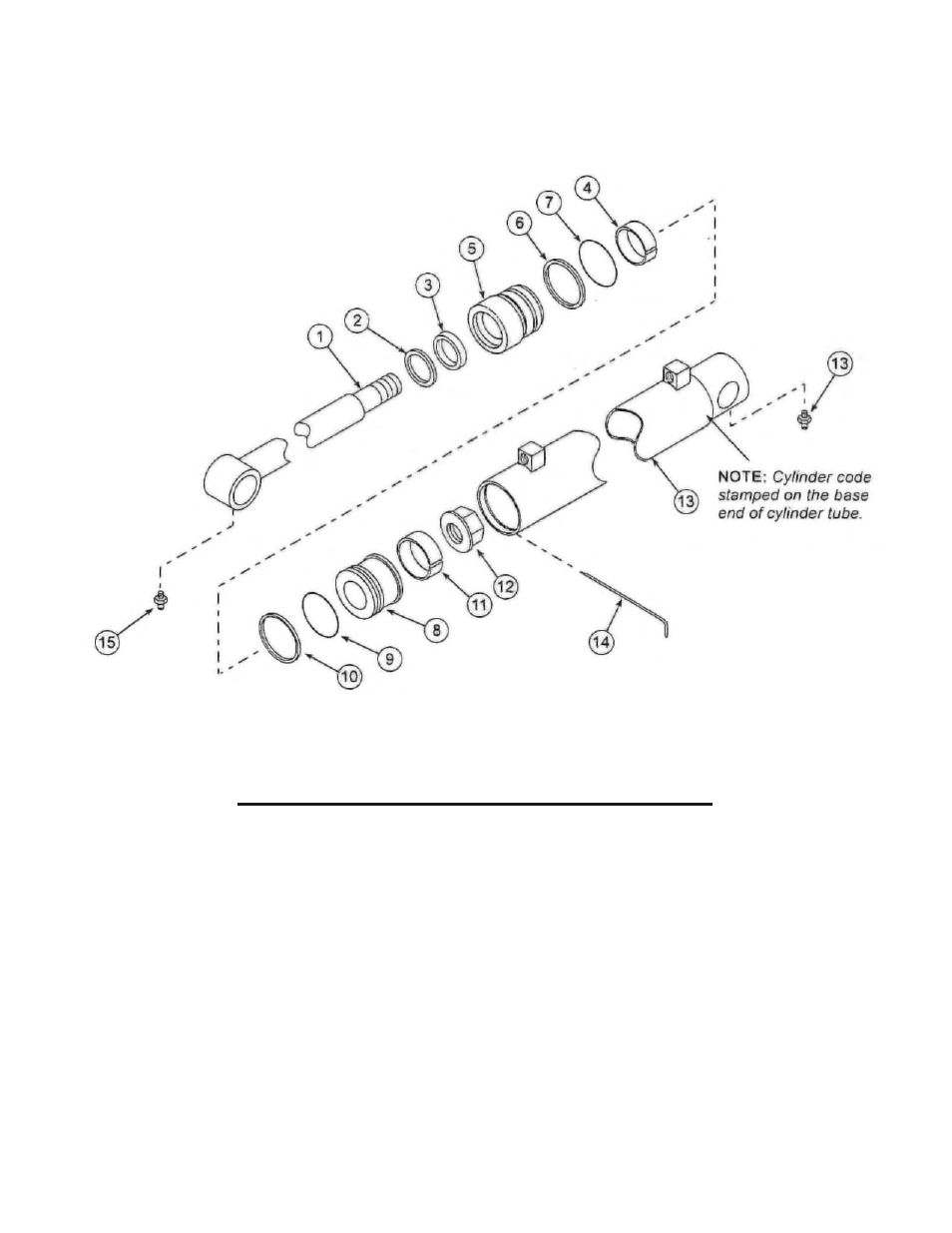

HYDRAULIC CYLINDER - LIFT
REF. PART
NO. NO. DESCRIPTION QTY.
46364 Cylinder Assembly, 1.75” 1
1 46475 Rod, Weldment 1
2 * Seal, Wiper 1
3 * Seal, U-Cup 1
4 * Ring, Wear 1
5 44027 Head, Cylinder 1
6 * Washer, Back-Up 1
7 * O-Ring 1
8 4647 Piston, Cylinder 1
9 * O-Ring 1
10 * Seal, Piston 1
11 * Ring, Wear 1
12 ------ Nut, Flange Lock, 3/4-10 1
13 46478 Tube, Cylinder Assembly 1
14 * Retainer, Wire 1
15 6075-4 Fitting, Grease 2
* 46525 Repair Kit, Includes (*) Items 1
