Bush Hog 2297 - Manual (Page 60)

1-33D-1
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL JULY, 2011

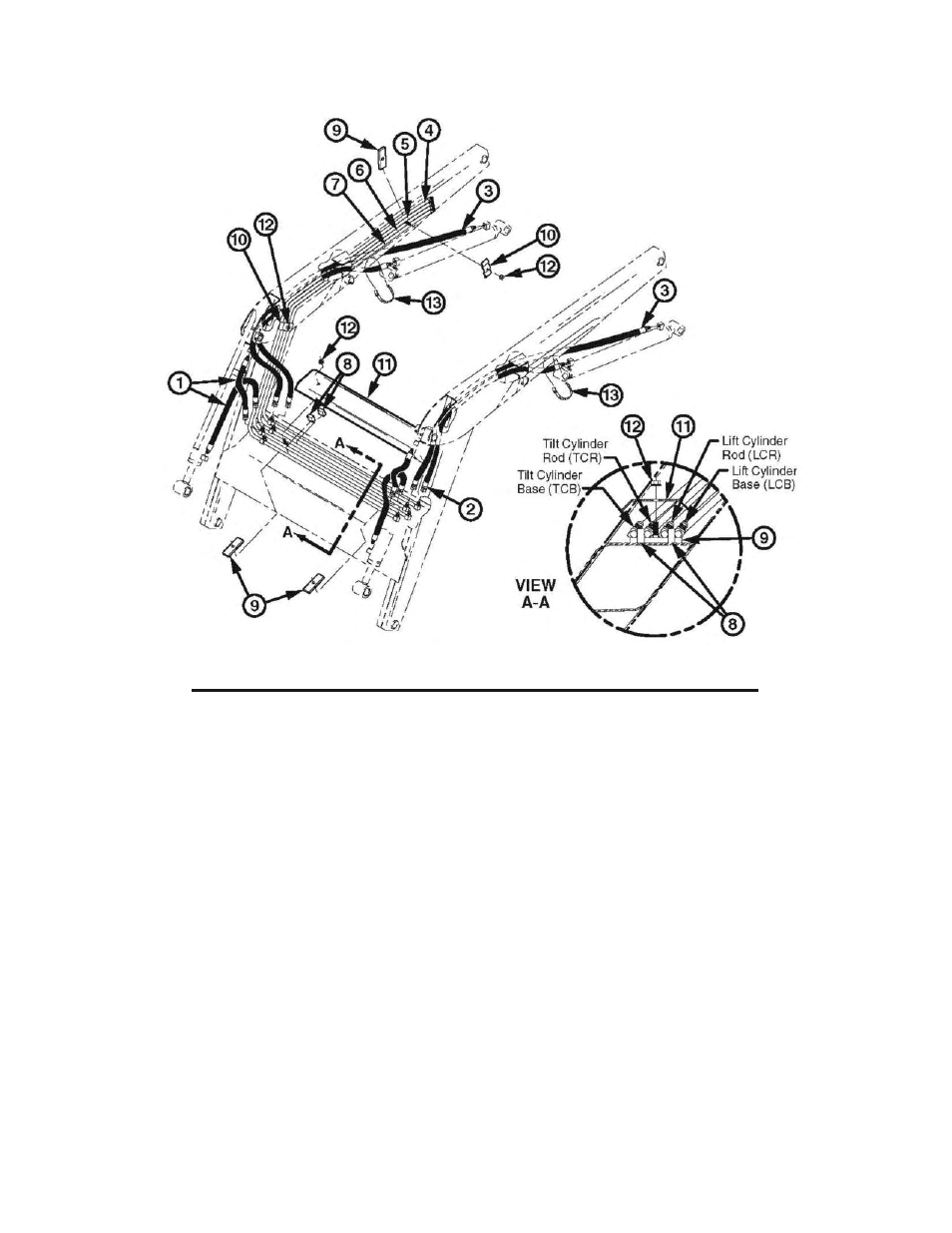

HYDRAULIC SYSTEM
REF. PART
NO. NO. DESCRIPTION QTY.
1 38576-6 Hose, 3/8 x 18" 4
2 38576-11 Hose, 3/8 x 40" 2
3 38576-12 Hose, 3/8 x 60" 2
*4 36187 **Tube, Oil Line(LCB) 1
*5 36188 **Tube, Oil Line(LCR) 1
*6 36189 **Tube, Oil Line (TCR) 1
*7 36190 **Tube, Oil Line (TCB) 1
8 52108-1 Rubber Spacer, Oil Line 4
9 51968 Pad, Oil Line 4
10 51961 Clamp, Oil Line 2
11 52090 Shield, Oil Line 1
12 ------ Nut, Flange, 3/8-16 4
13 8137-1 Tie Strap, 3/16", Plastic 2
35762 Replacement, Oil Line Tee Fitting
35763 Replacement, Oil Line 90° Fitting
35764 Replacement, Oil Line Straight Fitting
35765 Repair, Oil Line Tube Splice Fitting
*NOTE: If a fitting or oil line is damaged, it can be repaired with replacements listed rather than replacing the
complete oil line. No specific tools are required, only common wrenches and a hacksaw.
**NOTE: Because of difficulty in shipping oil line tubes, they have been broken down into sections for ship-
ping. The two sections of tube must be threaded together to construct the original one piece tube which is not
available for repairs.
