Bush Hog 2297 - Manual (Page 10)

1-33A-2
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL JULY, 2011

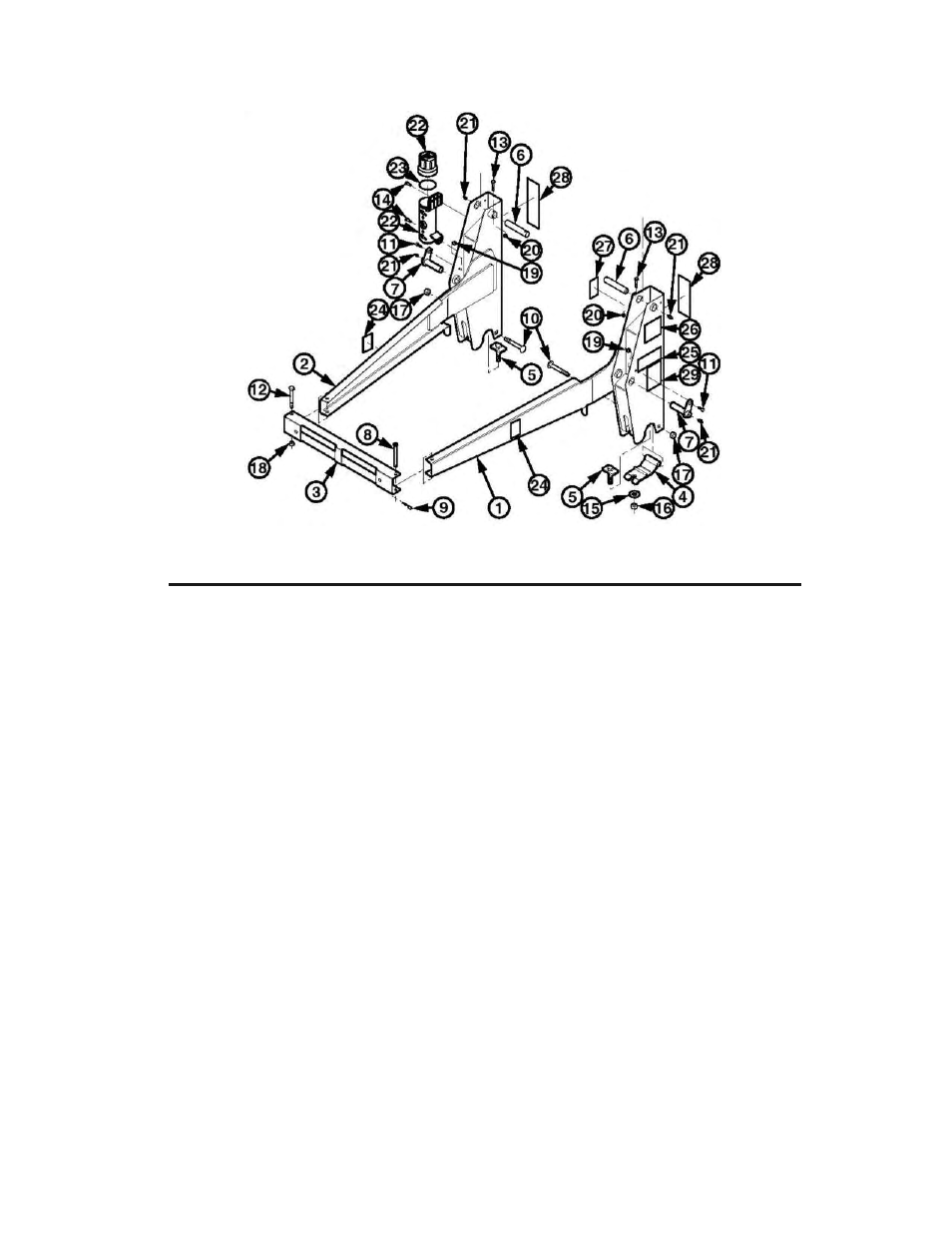

2297 SUBFRAME
REF. PART
NO. NO. DESCRIPTION QTY.
1 ------ Side Frame, Left, With Decals 1
2 ------ Side Frame, Right, With Decals 1
3 51647 Bumper, Loader Front 1
4 44104 Hinge, Loader Upright 2
5 44105 Bolt, Tee, Loader Hinge 2
6 52107-4 Pin, 1 x 5-1/4" 2
7 51965-2 Pin, 1 x 3-5/8" 2
8 41902-27 Pin, Clevis, 1/2 x 4-1/2" 1
9 41901-1 Pin, Cotter, .148 x 2-11/16" 1
10 ------ Carriage Bolt, 5/8-11 x 5" 2
11 47046 Bolt, Shoulder, 3/8 x 1" 6
12 ------ Capscrew, 1/2-13 x 4" 1
13 ------ Capscrew, 5/16-18 x 1-3/4" 6
14 ------ Screw, Self Tapping, 1/4 x 3/4" 2
15 ------ Flatwasher, 5/8 6
16 ------ Hex Nut, 5/8-11 2
17 ------ Locknut, 5/8-11 2
18 ------ Locknut, 1/2-13 1
19 ------ Locknut, 3/8-16 6
20 ------ Locknut, 5/16-18 7
21 00003500 Fitting, Grease, Straight, 1/8-27 12
22 00776031 Canister With Cap, Includes Seal 1
23 00776964 Seal, Manual Canister 1
24 46778 Decal, Danger, Do Not Work Under Raised Loader 2
25 51900 Decal, Danger, Prevent Rollovers 1
26 D469 Decal, Warning-General Safety 1
27 48280 Decal, Caution, Universal One Call 1
28 52740 Decal, Warning, Do Not Operate With Oil Leaks 2
29 D471 Decal, Warning-Injury Or Death 1
