B101623-2-0112

Page 39

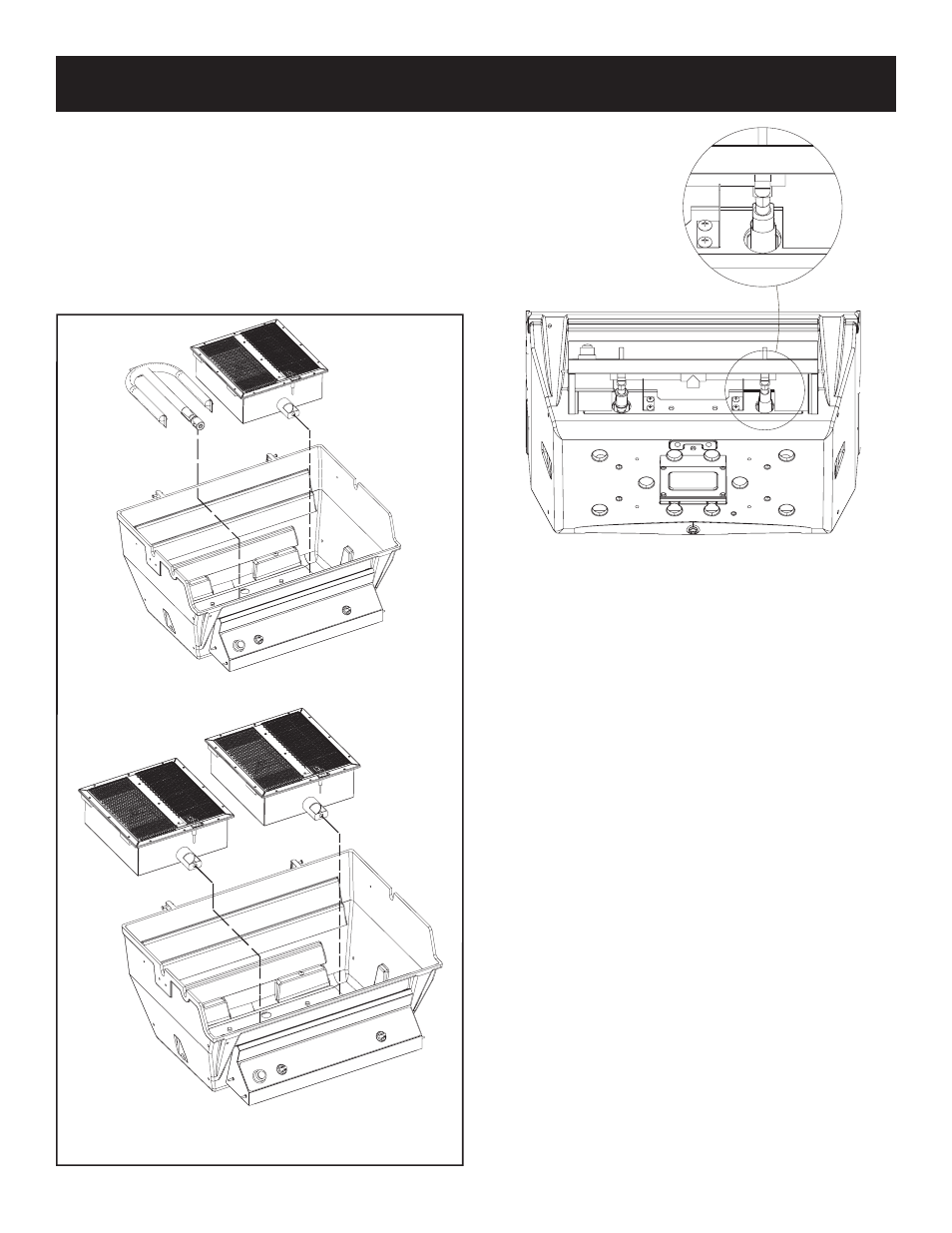

5. Place blue flame burner on the left and infrared on the right

into grill and insert burner tubes over orifice fittings on valve.

Secure each burner and burner shield with one (1) 1/4-20 x

3/4 phillips screw and nut.

See Figures 27, 28, and 29. R3

model only: Use lugs to attach ground wire before screwing

the two infrared burners on.

See Figure 28. Tuck ground wire

underneath the burners to prevent damage.

R3B

Figure 28

R3

Figure 27

GRILL ASSEMBLY
