5

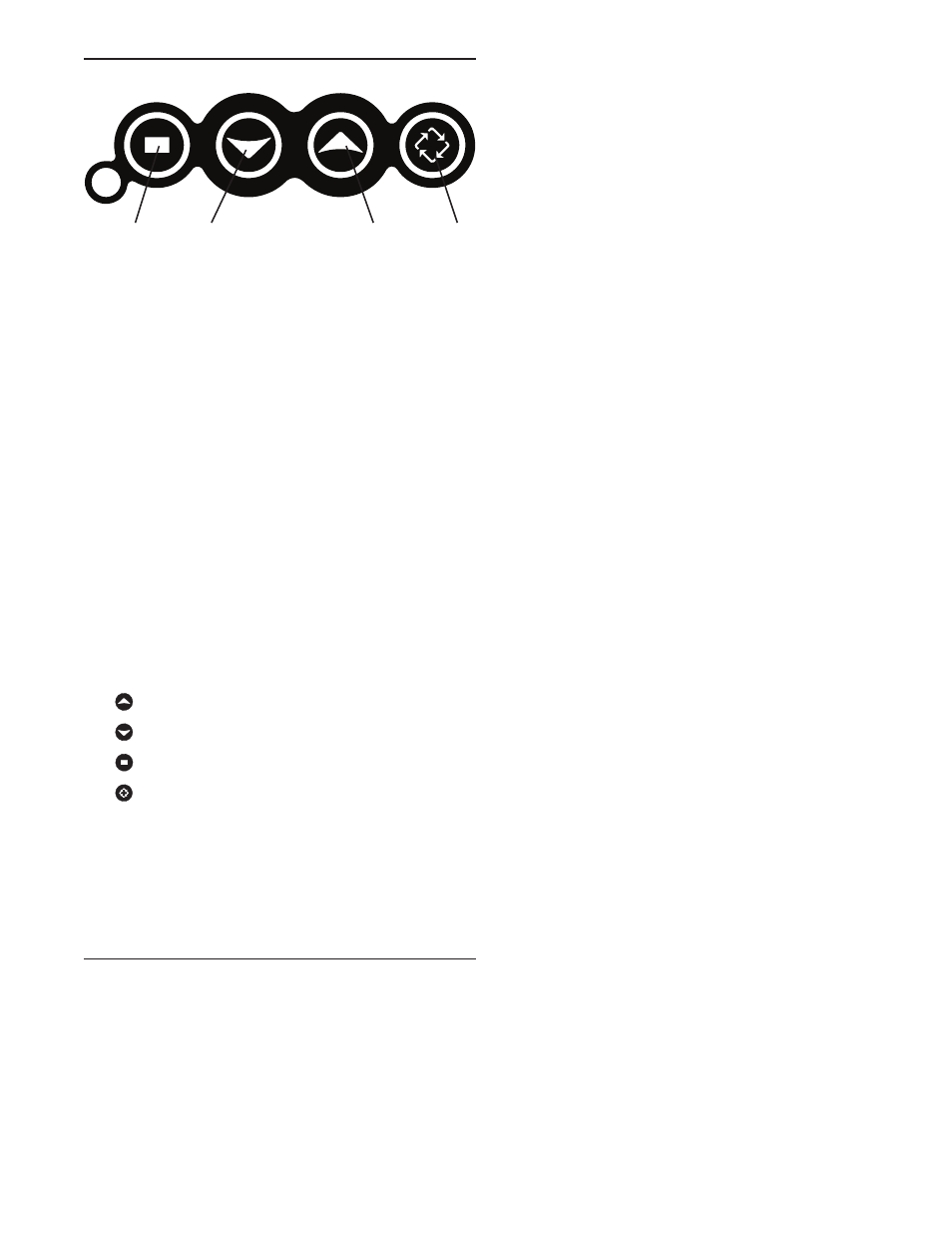

Keypad - Buttons

1

2

3

4

Figure 5

1. SET. Used to accept a setting that normally becomes

stored in memory. Also used together with the arrow

buttons.

2. DOWN arrow. Generally used to scroll down or decrement

through a group of choices.

3. UP arrow. Generally used to scroll up or increment through

a group of choices.

4. REGENERATE. Used to command the controller to

regenerate. Also used to change the lock mode.

NOTE: If a button is not pushed for thirty seconds, the

controller returns to normal operation mode.

Pushing the Regenerate button immediately

returns the controller to normal operation except

when the controller is in regeneration mode or

Level II Programming mode.

Programming Conventions
The ProSense controller is programmed using the buttons on

the keypad. The programming instructions are described two

ways whenever a section has keypad input.
First a table shows simplified instructions. Second, text follows

that describes the action. In each table:
"Action" lists the event or action desired.
"Keys" are listed as:

UP for up arrow

DOWN for down arrow

SET for set

REGEN for regeneration

"Duration" describes how long a button is held down:

P/R for press and release
HOLD for press and hold
X sec for a number of seconds to press the button and

hold it down

"Display" calls out the display icons that are visible.

SYSTEM PROGRAMMING

After you have performed the installation steps, the conditioner

will need to be programmed.
Follow these steps carefully, as they differ from previous valve

instructions.
NOTE: The ProSense controller will be shipped in the

service (treated water) position. Do not rotate the

camshaft before performing the following steps.

CONTROLLER FEATURES continued

Power-up The Controller
Plug the transformer into a non-switched outlet. The display

will show 9100. If this is the first time the control is powered up

the display will show "_.__" if the product is for USA otherwise

it will show "___". Finish programming the ProSense controller

using the Level I Programming instructions.

NOTE: Err3 will be displayed when the controller

does not detect the cam at the home position

and that the motor is turned on. As soon as it

detects the cam at the home position, the motor

will be turned off and error will disappear. The

camshaft will move to service if not already in

service. These cam movements may take up to

5 minutes.

Flowmeter Setting
1. Press UP key and DOWN key and hold for 3 seconds. Now

the control will enter into the Level II Programming mode.

2. Use DOWN key to scroll to the parameter P16: Flowmeter

parameter setting.

3. Use SET key to change the parameter value.
4. Use UP/DOWN key to set the value as per the flowmeter

connected to the system.

5. Use SET key to store the modified value.

Tank In Service Parameter Setting
1. Use DOWN key to scroll to the parameter P18: Tank In

Service parameter setting.

2. Use SET key to change the parameter value.
3. Use UP/DOWN key to set the value as per the tank number

shown by the indicator lablel on the valve.

4. Use SET key to store the modified value and wait for 30

seconds to let the control back to service mode.
