18
Item No. QTY Part No. Description
1 ................1 ....... 17290 ................By-Pass Body, 3/4”
1 ....... 17290NP ...........By-Pass Body, 3/4” NP, 5600
1 ....... 13399 ................By-Pass Body, 1”
1 ....... 13399NP ...........By-Pass Body, 1” NP
2 ................1 ....... 14105 ................Seal, By-Pass, 560CD
3 ................1 ....... 11972 ................Plug, By-Pass, w/Wax
4 ................1 ....... 11978 ................Plate, By-Pass, Top
5 ................1 ....... 13604-01 ...........Label, By-Pass, Standard Mount
6 ................8 ....... 15727 ................Screw, Hex Wsh Hd, 10-24 x 1/2
7 ................1 ....... 11986 ................Plate, By-Pass, Bottom
8 ................1 ....... 11979 ................Lever, By-Pass
9 ................1 ....... 11989 ................Screw, Sltd Indent, 1/4 - 14 x 1
1/2

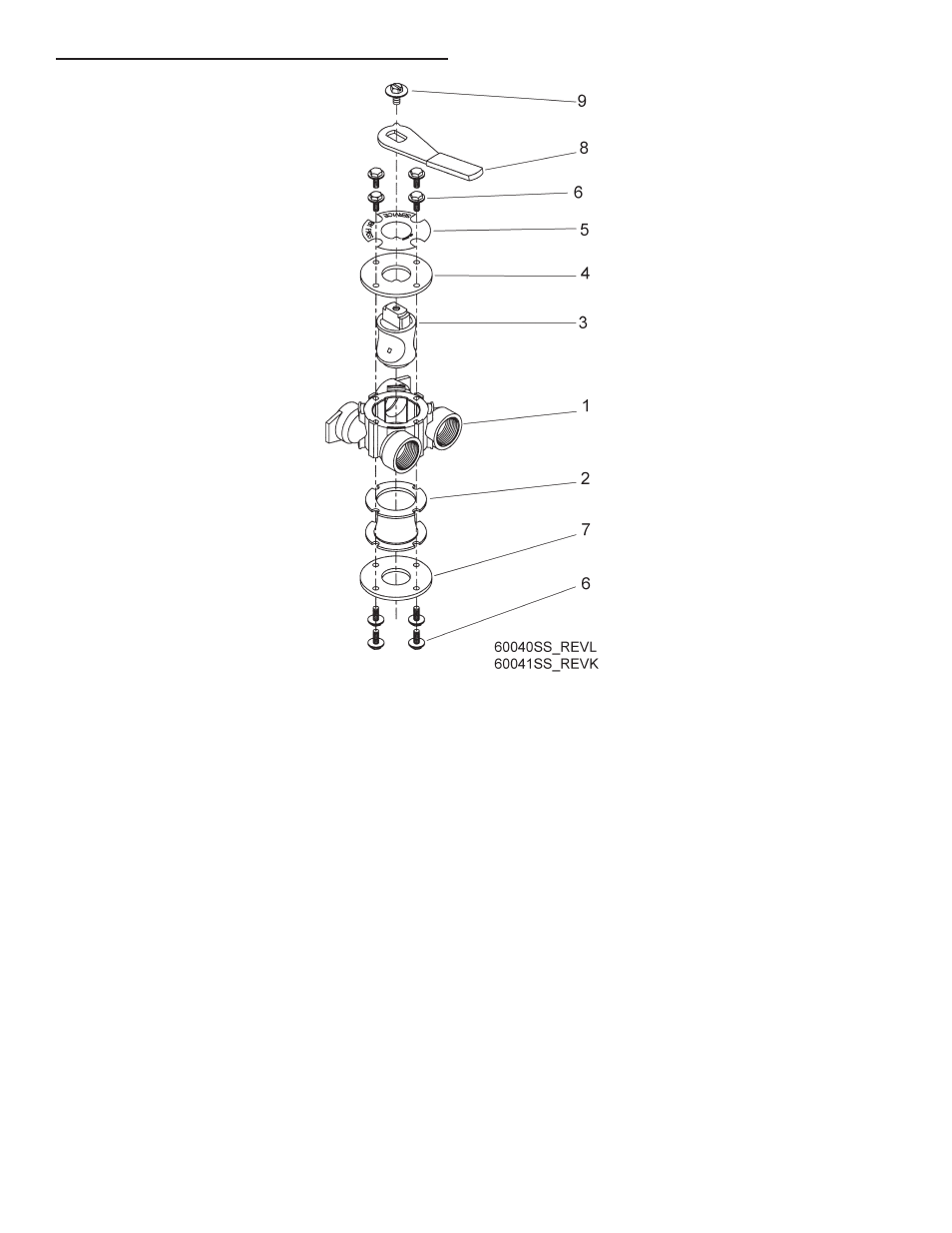

BYPASS VALVE ASSEMBLY
