Parts list – Watts PWDWUV3 User Manual
Page 6
6
MAIN WATER SUPPLY
SHUT-OFF VALVE
CARBON
BLOCK
SEDIMENT
FILTER
1/4” GREEN TUBE
FEED WATER
CHROME
FAUCET
ADAPT-A-VALVE
1
TO
KITCHEN
SINK
2
3
4
3
4
2
11
5
5
6
7
1/4” BLUE TUBE
2
2
10
10
9
8
8
12
1/4”
WHITE
TUBE
1/4”
WHITE
TUBE
TRANSFORMER
15
14
13
13
UV MODULE

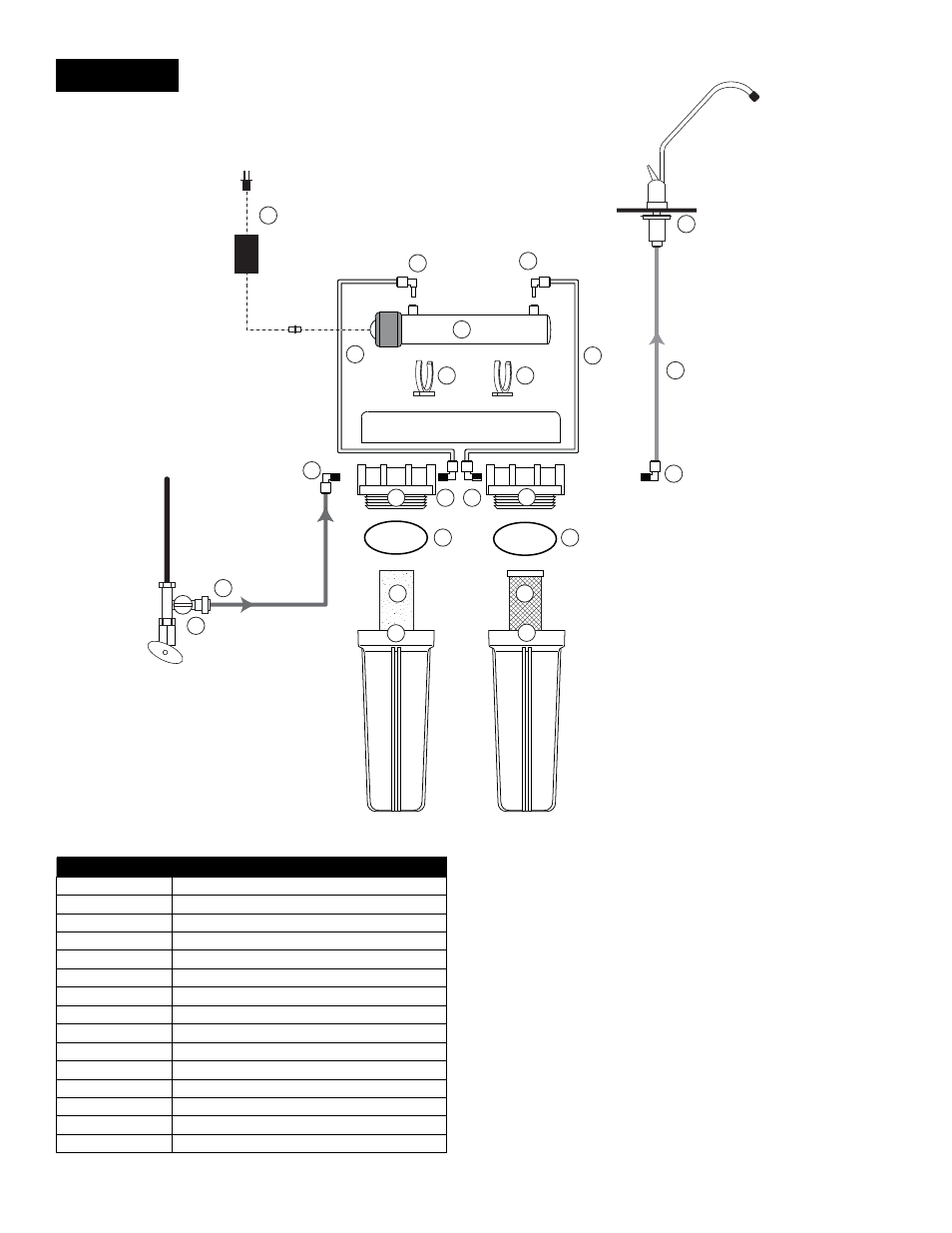

Parts List
iteM #
description
1
Adapt-A-Valve™
2
Elbow - 1/4" QC X 1/4" M
3
Filter Housing - Lid - 1/4" Ports
4
Filter Housing - Bowl - 10" - White
5
O-ring for Filter Housing
6
Sediment Filter
7
Lead, Cyst, VOC Carbon Block
8
Mounting Clip - UV Module
9
UV Module
10
Elbow - 1/4" QC X 1/4" Stem
11
Faucet - Chrome
12
Transformer
13
1/4" White Tubing
14
1/4" Blue Tubing
15
1/4" Green Tubing
