Introduction 9

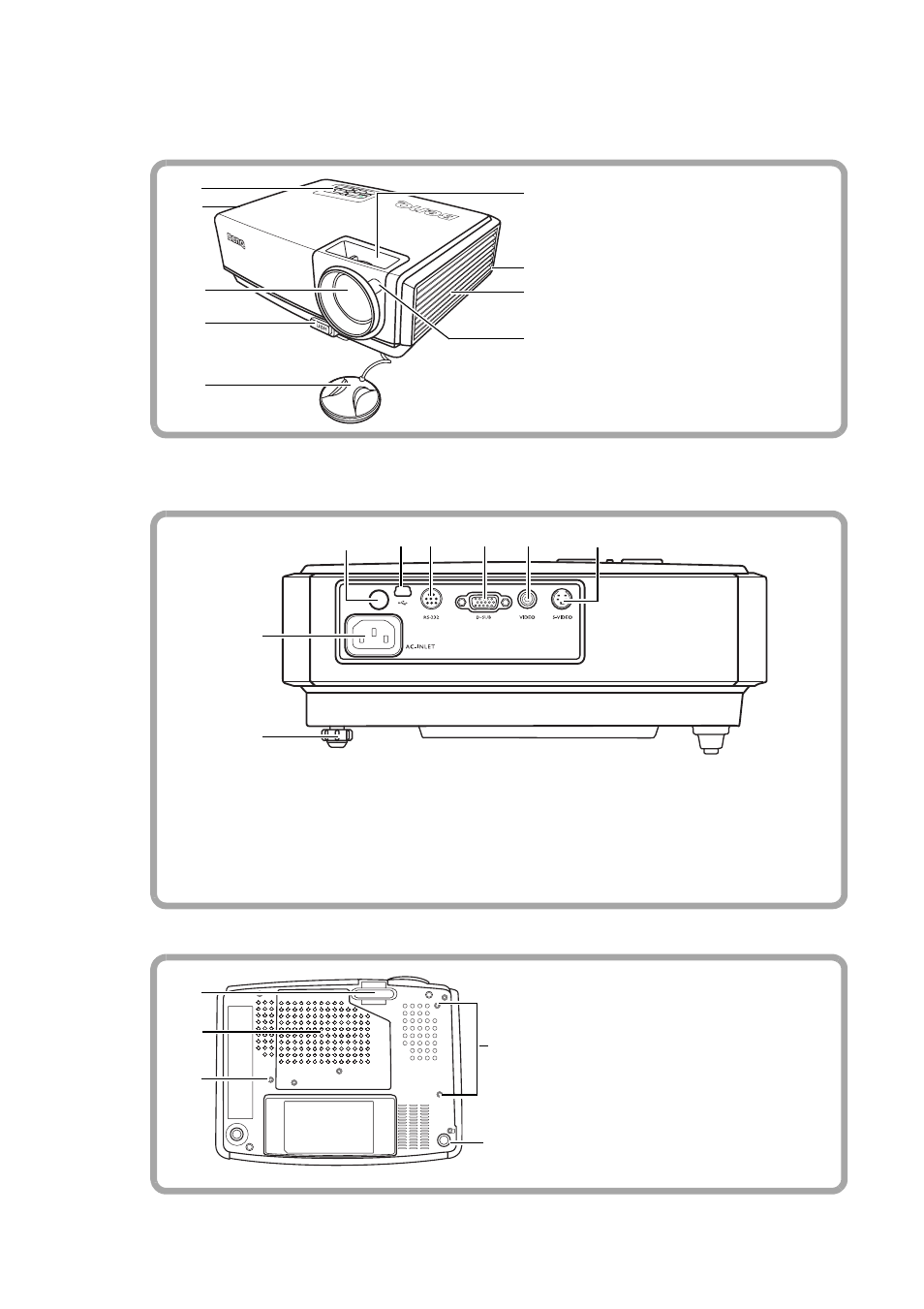

Projector exterior view
Front/upper side
Rear side
See "Connection" on page 17 for details.
Under side
1. External control panel
(See
"Projector" on page 10 for
details.)
2. Vent (heated air exhaust)
3. Projection lens
4. Quick-release button
5. Lens cap
6. Focus ring
7. Kensington anti-theft lock slot
8. Vent (cool air intake)
9. Front IR remote sensor
1
2
3
4
5
6
7
8
9
10. Rear adjuster foot
11. AC power cord inlet
12. Rear IR remote sensor
13. USB socket (for servicing)
14. RS232 control port
15. RGB (PC)/Component video (YPbPr/
YCbCr) signal input socket
16. Video input socket
17. S-Video input socket
11
10
12 13 14 15 16 17
18. Quick-release foot
19. Lamp cover
20. Ceiling mounting screw holes
18
19
20
10
20
