Positioning your projector 16
Projection dimensions
Refer to "Dimensions" on page 48 for the center of lens dimensions of this projector before
calculating the appropriate position.
There is 3% tolerance among these numbers due to optical component variations. BenQ
recommends that if you intend to permanently install the projector, you should physically test
the projection size and distance using the actual projector in situ before you permanently
install it, so as to make allowance for this projector's optical characteristics. This will help you
determine the exact mounting position so that it best suits your installation location.
4:3 Screen Diagonal Recommended projection distance
from screen in mm
Vertical Offset in mm
Feet Inches mm
2.5 30 762 1200 46
3 36 914 1440 55
1000 1575 60
4 48 1219 1920 73
1500 2362 88
5 60 1524 2400 91
6 72 1829 2880 110
2000 3149 120
7 84 2134 3360 128
8 96 2438 3840 146
2500 3937 150
9 108 2743 4320 165
3000 4724 180
10 120 3048 4800 183
3500 5512 209
12 144 3658 5760 219
4000 6299 239
15 180 4572 7200 274
5000 7874 299
16.7 200 5080 8000 305

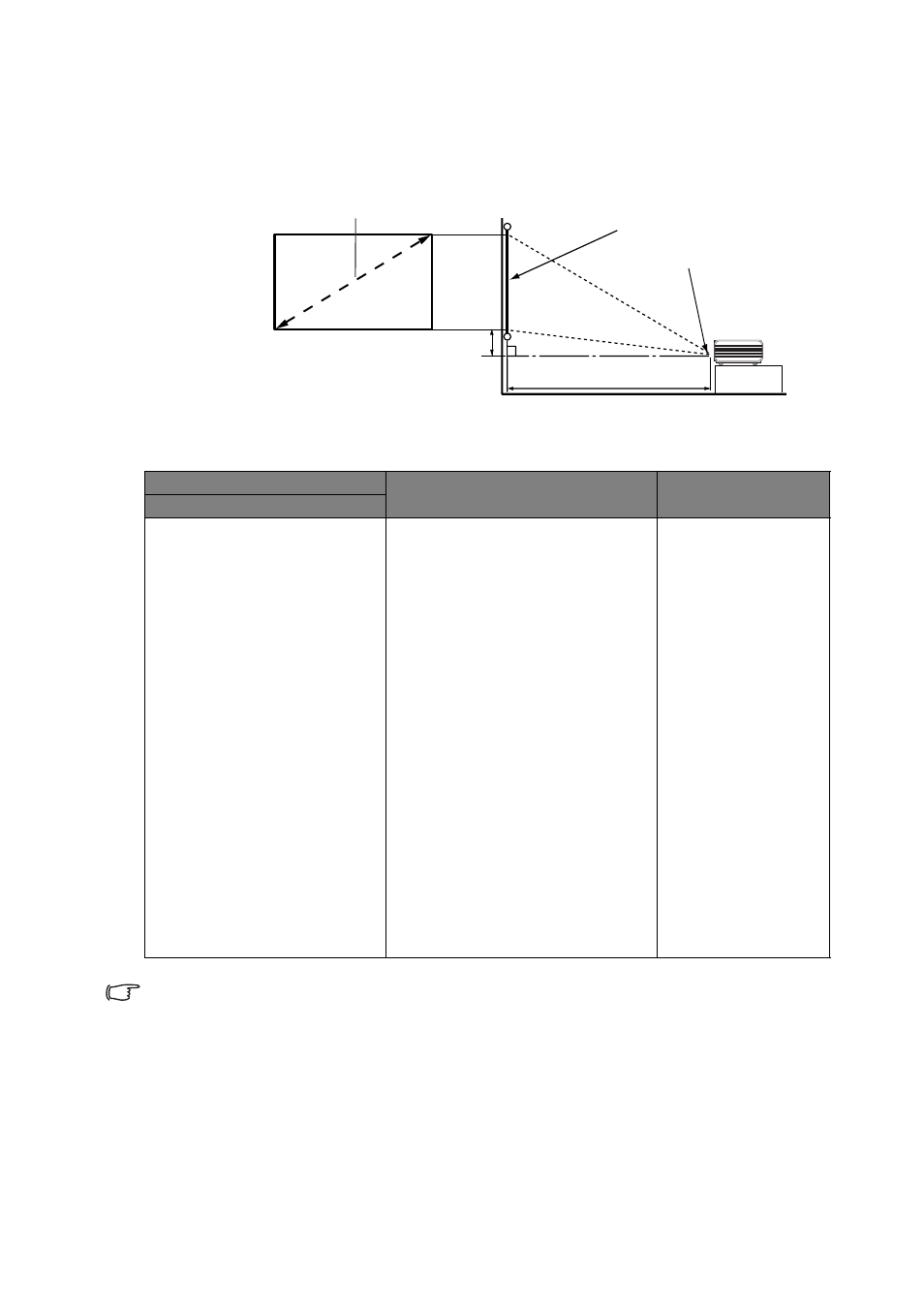

4:3 Screen Diagonal
Projection distance
Center of lens
Screen
Offset
