Projector preparation – Barco R 9849999 User Manual
Page 8
Projector preparation

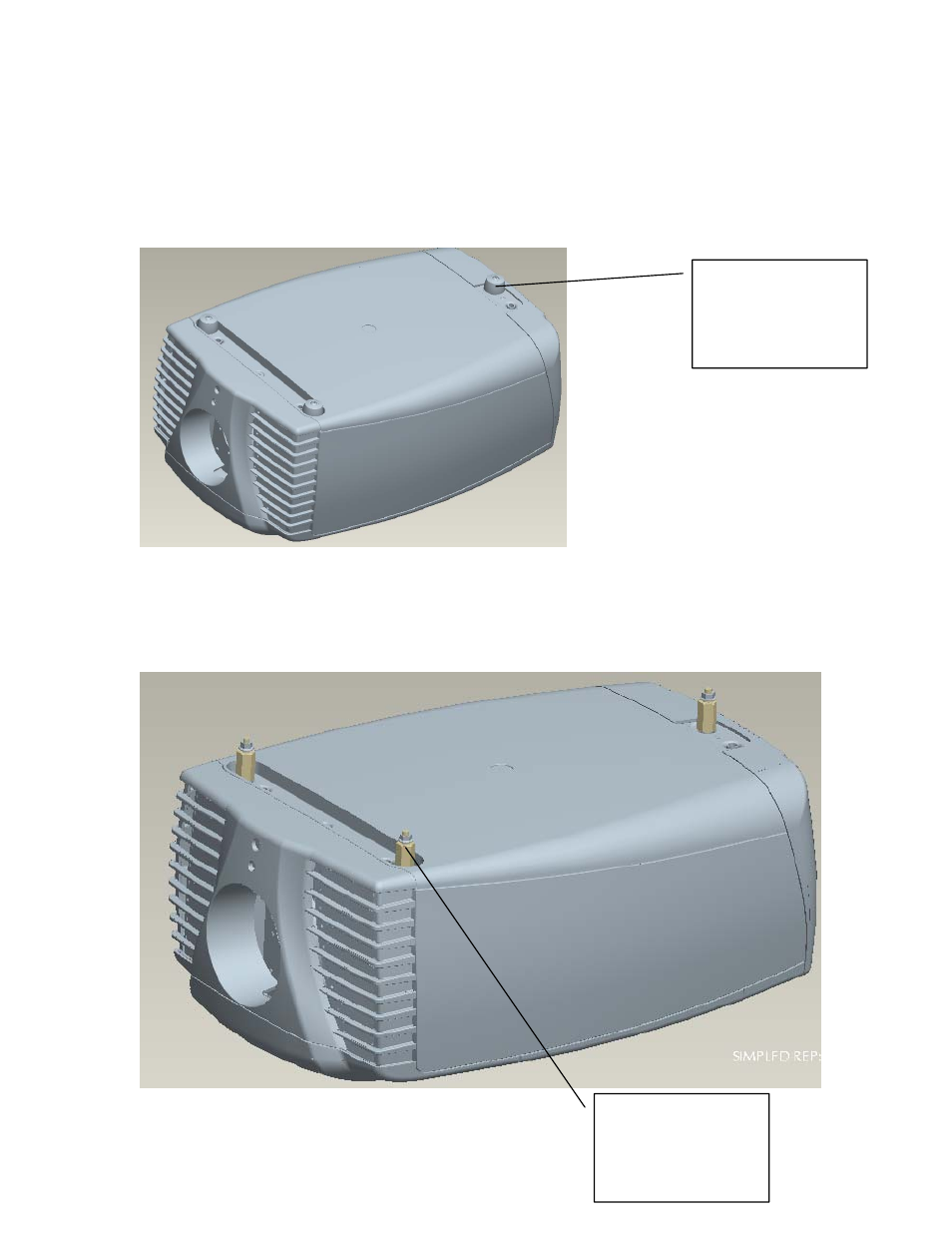

1. Turn the projector to its back and remove the Feet assembly. Unscrew 3
Plastic feet and remove their Allen head M10 screws. Discard 3 plastic feet
r852944 and x head M10 screw.
R852944, R852945
& A566050 M10
SCREW, & FEET
SUPPORT
2.
Fix the Spacer M10 (r835785) as shown below. For alignment of the Centre
distance between the spacers fix the ceiling mount and fix nut M8 B360623,
Do not tight fully then tight the spacer M10. Remove the Ceiling mount and
fix it on the Ceiling.
Washer , Spacer
M10 R835785 and
Flange Nut M8
