Adjustments
Following adjustment can be done in random order.

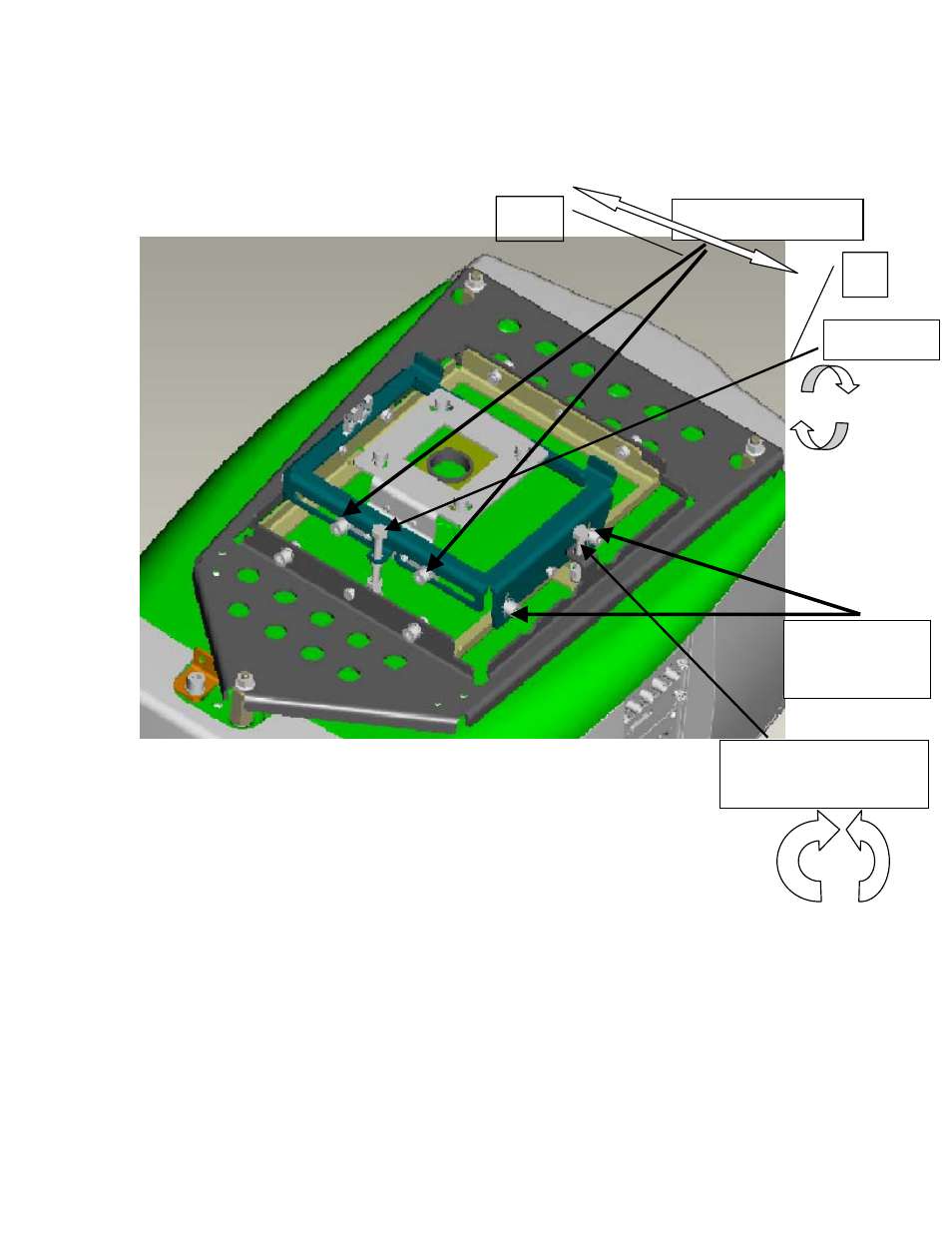

Shift parallel to
screen
1. Shift parallel to the screen
Loosen the 2 bolts A and move the projector till the projector is aligned.
Tighten these 2 bolts to secure the position.
2. Up down Tilt
Loosen the 4 bolts B . Adjust the up/down tilt precisely by moving bolt C
clockwise or anti clockwise . Tighten the 4 bolts B to secure the position.
B 4no’s
(2 in opposite
side)
Up/down
C
A
Axis ±3°
Rotate around central
