Banner Q40 Series User Manual
Q40 sensors – ac-voltage series, Installation guide, Warning

Printed in USA
10/04
P/N 116168

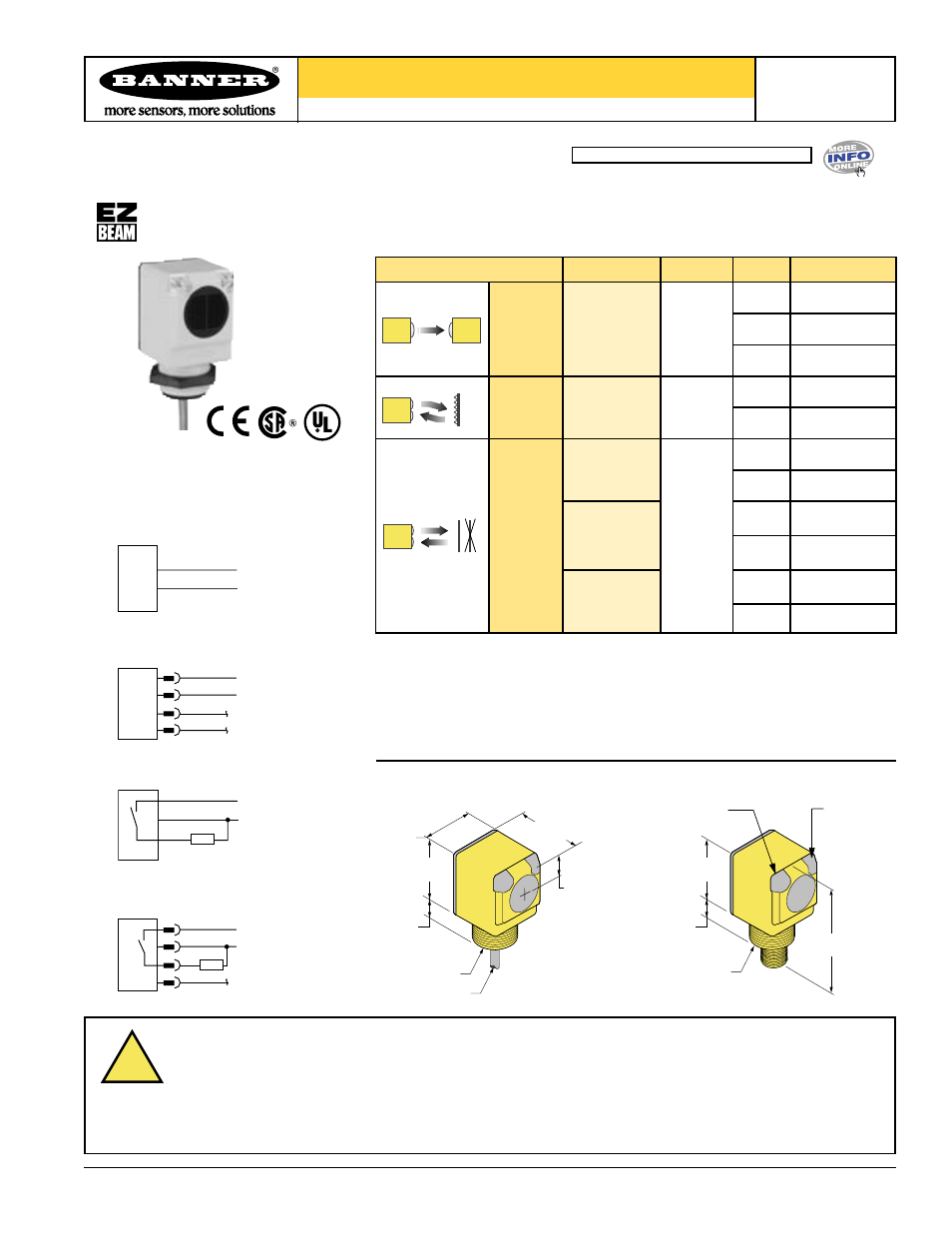

Installation
Guide
Q40 Sensors – ac-Voltage Series
Self-contained, ac-operated sensors
* Standard 2 m (6.5') cable models are listed.
• 9 m (30') cable: add suffix “W/30” (e.g., Q403E W/30).
• 4-pin Micro-style QD models: add suffix “Q1” (e.g., Q403EQ1). A model with a QD connector
requires a mating cable.
WARNING . . .
Not To Be Used for Personnel Protection
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety
applications. A sensor failure or malfunction can cause either an energized or de-energized sensor output condition.
Consult your current Banner Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for
personnel protection.
!
Sensing Mode
Range
LED
Output
Model*
Opposed
60 m
(200')
Infrared
950 nm
–
Q403E
LO
Q40AW3R
DO
Q40RW3R
Polarized
Retro-
reflective
6 m
(20')
Visible
Red
680 nm
LO
Q40AW3LP
DO
Q40RW3LP
Fixed
Field
200 mm (8")
cutoff
Infrared
880 nm
LO
Q40AW3FF200
DO
Q40RW3FF200
400 mm (16")
cutoff
LO
Q40AW3FF400
DO
Q40RW3FF400
600 mm (24")
cutoff
LO
Q40AW3FF600
DO
Q40RW3FF600
Additional information on this product is immediately available online at
View or download additional information, including excess gain curves, beam patterns and accessories.
For further assistance, contact a Banner Engineering Applications Engineer at (763) 544-3164 or (888) 373-6767.
Dimensions
LISTED
R
50.0 mm
(1.97")
(Jam Nut Supplied)
19.8 mm
(0.78")
M30 x 1.5 Thread
82.5 mm
(3.25")
Green LED
Power Indicator
Yellow LED
Output Indicator
Cabled Models
QD Models
40.1 mm
(1.58")
50.0 mm
(1.97")
46.0 mm
(1.81")
20.1 mm
(0.79")
(Jam Nut Supplied)
Lens Centerline
19.8 mm
(0.78")
M30 x 1.5 Thread
2 m (6.5') Cable
P
bn
bu
bk
20-250V ac
Load
Cabled Emitters
20-250V ac
No Connection
rd/wh
rd/bk
rd
gn
bn
bu
20-250V ac
All Other Cabled Models
QD Emitters
(4-pin Micro-Style)
All Other QD Models
(4-pin Micro-Style)
20-250V ac
No Connection
Load
rd/wh
rd
rd/bk
gn
