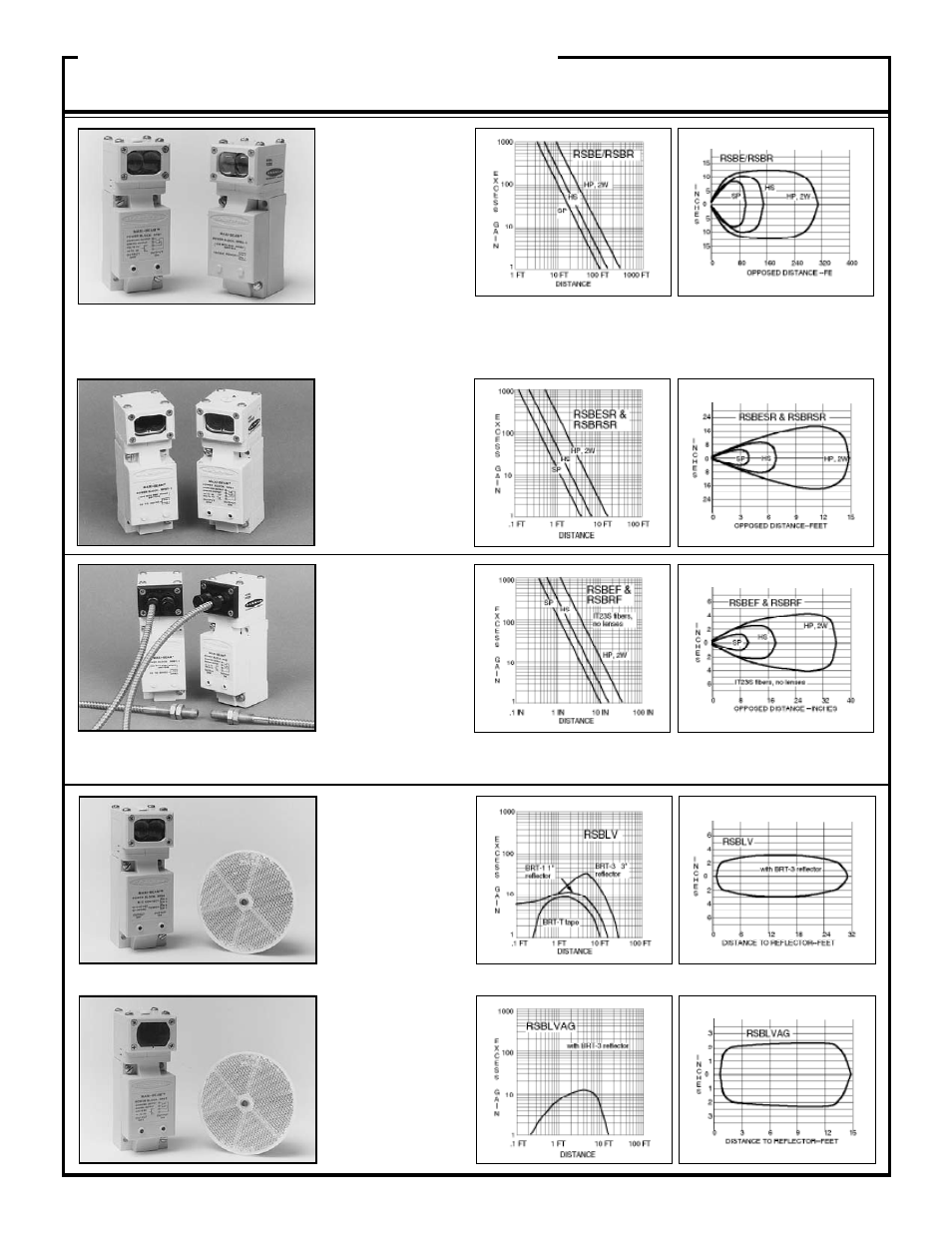

Sensing Mode Models Excess Gain Beam Pattern
This sensor pair is designed for opposed mode operation using Banner glass fiber
optics. Maximum range (HP mode) using L9 lenses is 12 feet. Maximum range
using L16F lenses is 50 feet.
OPPOSED Mode
MAXI-BEAM emitters have a visible red "tracer beam". This beam is non-active,
and is used as a means of visual alignment during installation. A retroreflector
temporarily attached to the receiver lens provides an effective target for the tracer
beam during alignment. The narrow beam of the RSBESR/RSBRSR pair is ideal
for sensing small parts (effective beam diameter is 0.14 inch).
(glass fibers)
RSBE & RSBR
RSBLV
Range: 6 inches to 30 feet
(9 m) in all program modes
Beam: visible red, 650nm
Response:
HP, 2W, SP modes: 4ms
HS mode: 1ms
Repeatability:
HP, 2W, SP = 1.3ms;
HS = 0.3ms
Range: 300 feet (90 m) in
"HP" (high power) and 2W
(2 wire) modes
Beam: infrared, 880nm;
visible red tracer beam
Effective Beam: 0.5" dia.
Response:
HP, 2W mode: 10ms on/
5 off
HS mode: 1ms on/0.5 off
SP mode: 0.3ms on/off
Repeatability: HP, 2W=
1.4ms; HS = 0.1ms;
SP = 0.04ms
RSBESR &
RSBRSR
Range: 15 feet (4,5m) in
"HP" (high power) and 2W
(2 wire) modes
Beam: infrared, 880nm
Response:
HP, 2W modes:
10ms on/5 off
HS mode: 1ms on/0.5 off
SP mode: 0.3ms on/off
Repeatability: HP, 2W=
1.4ms; HS = 0.1ms;
SP = 0.04ms
Range: see excess gain
curves
Beam: infrared, 880nm.
Response:
HP, 2W modes: 10ms
HS mode: 1ms
SP mode: 0.3ms on/off
Repeatability: HP, 2W=
3.3ms; HS = 0.3ms;
SP = 0.1ms
RSBEF &
RSBRF
RSBLVAG
(anti-glare filter)
Range: 1 to 15 feet (4,5 m)
in all program modes
Beam: visible red, 650nm;
with polarizing filter
Response:
HP, 2W, SP modes: 4ms
HS mode: 1ms
Repeatability: HP, 2W,
SP = 1.3ms; HS = 0.3ms
OPPOSED FIBER OPTIC
Mode
RETROREFLECTIVE Mode
2
MAXI-BEAM
Sensor Heads
