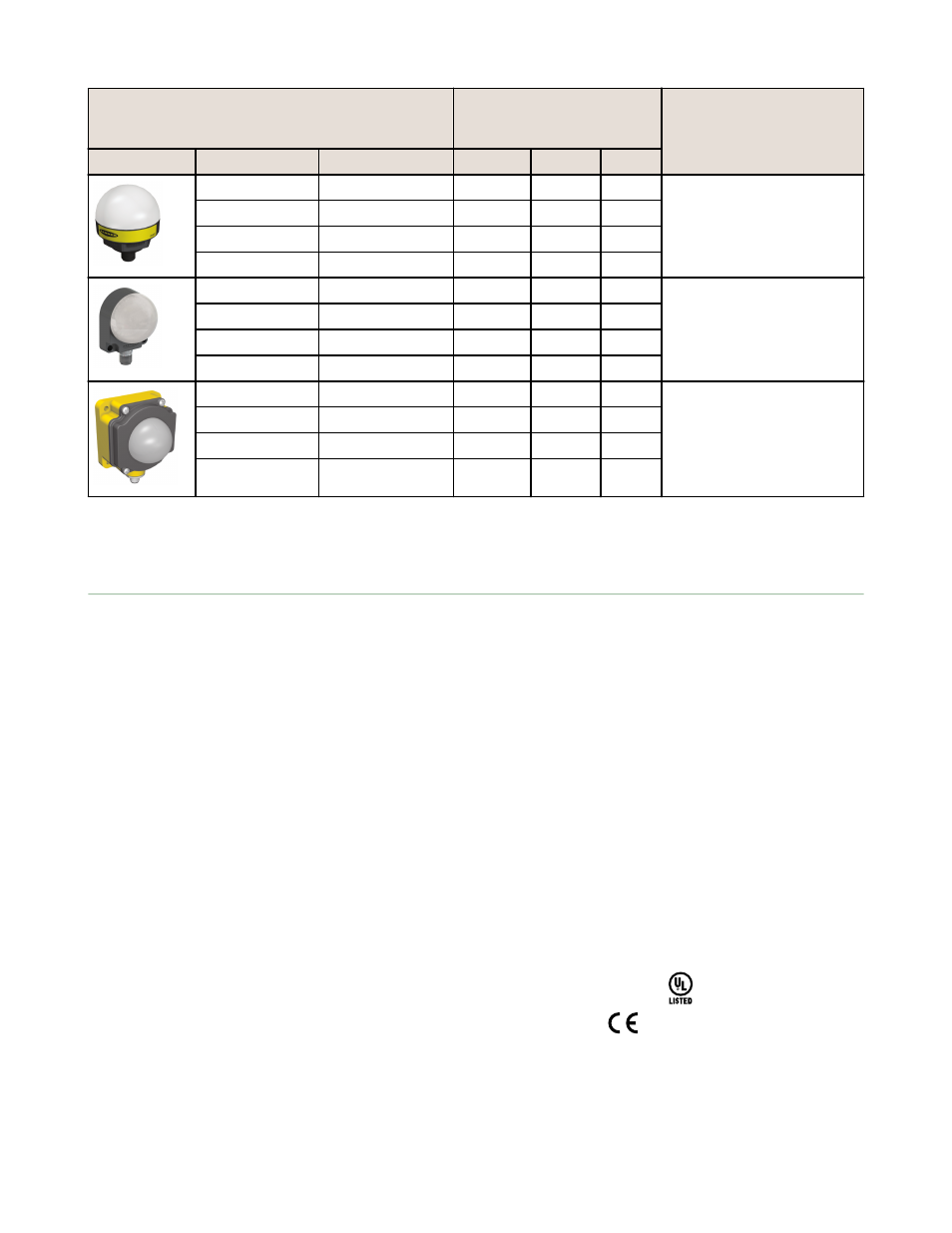

Models*
LED Function — 2 or 3
Lights,
Independently Selected
Construction
PNP Input
NPN Input
Color 1
Color 2
Color 3
K50LGRXPQ
K50LGRXNQ
Green
Red
—
•
30 mm polycarbonate
base, translucent
polycarbonate dome
•
Fully encapsulated
•
IP67, IP69K
K50LGXYPQ
K50LGXYNQ
Green
—
Yellow
K50LXRYPQ
K50LXRYNQ
—
Red
Yellow
K50LGRYPQ
K50LGRYNQ
Green
Red
Yellow
K50FLGRXPQ
K50FLGRXNQ
Green
Red
—
•
Polycarbonate base,
translucent
polycarbonate dome
•
Fully encapsulated
•
IP67, IP69K
K50FLGXYPQ
K50FLGXYNQ
Green
—
Yellow
K50FLXRYPQ
K50FLXRYNQ
—
Red
Yellow
K50FLGRYPQ
K50FLGRYNQ
Green
Red
Yellow
K80LGRXPQ
K80LGRXNQ
Green
Red
—
•
ABS and
polycarbonate base,
translucent
polycarbonate dome
•
Electronics fully
encapsulated
•
IP67
K80LGXYPQ
K80LGXYNQ
Green
—
Yellow
K80LXRYPQ
K80LXRYNQ
—
Red
Yellow
K80LGRYPQ
K80LGRYNQ
Green
Red
Yellow
* See page 1 for footnotes.
Specifications
Supply Voltage and Current
T8L models: 10 to 30V dc at 20 mA max.
T18, M18, and K30L models: 10 to 30V dc at 25
mA max. per LED color
T30 models: 10 to 30V dc at 40 mA max. per
LED color
K50L, K50FL, and K80L models: 18 to 30V dc at
40 mA max. per LED color
Indicators
Entire translucent diffuser or dome provides
indication. Green and Yellow, when connected to
discrete output of 3-wire or 4-wire sensors. For
other colors, contact Factory for availability
Input Response Time
Indicator ON/OFF: 1 ms max.
Construction
See Models lists
Connections
T8L models: 4-pin Euro-style 150 mm (5.9 in)
pigtail QD (QP) or 4-wire, 2 m (6.5 ft) integral
cable, depending on model
K80L models: 4-pin Euro-style integral QD
(Q)standard; terminal-wired models available for
use with bulk cable; compression fitting optional.
Contact Factory for cable information.
Other models: 4-pin Euro-style integral QD (Q),
5.9 in. pigtail QD (QP), or 4-wire, 2 m (6.5 ft)
integral cable, depending on model
Environmental Rating
Rated IEC IP67. T8L not encapsulated; K80L has
encapsulated electronics only; other models fully
encapsulated. K30L, K50L, and K50FL QD models
meet IP69K, per DIN 40050-9. Cabled models
also meet IP69K if the cable and cable entrance
are protected from high-pressure spray.
Operating Conditions
Temperature: −40 °C to +50 °C (−40 °F to
+122 °F)
Certifications
K30L and K50L models:
Other models:
EZ-LIGHT
™
2- or 3-Color General-Purpose Indicators
2
www.bannerengineering.com - tel: 763-544-3164
P/N 121899 Rev. I
