Banner MINI-BEAM Series - Manual

Printed in USA 12/04 P/N 61308 rev. A
MINI-BEAM ® Plastic Fiber Optic Sensors (Suffix FP1)
Fiber installation instructions for FP1-suffix Plastic Fiber Optic Models
Banner Engineering Corp., 9714 Tenth Ave. No., Minneapolis, MN USA 55441 • Phone: 763.544.3164 • www.bannerengineering.com • Email: [email protected]
Fiber Installation for FP1 Clamp-Style Sensor Fiber Grips
1) If using a bifurcated fiber, first separate the two halves of the control end of the
fiber for a distance of two inches (minimum). Thread the control ends of the fiber
through the bushings (supplied with the fiber) until they extend through about 6
mm (0.25").
2) Slide the fibers with the bushings into the ports on the face of the MINI-BEAM until
the fibers stop. Slide the bushings further into the ports until they seat up against
the face of the MINI-BEAM. Hold the fibers and bushings in place.
3) While holding the fibers and bushings against the face of the MINI-BEAM, tighten
the clamp screw to secure the fibers and bushings in place.
WARNING . . .
Not
To Be Used for Personnel
Protection
Never use these products as sensing
devices for personnel protection. Doing
so could lead to serious injury or death.
These sensors do NOT include the
self-checking redundant circuitry
necessary to allow their use in personnel
safety applications. A sensor failure
or malfunction can cause either an
energized or de-energized sensor output
condition. Consult your current Banner
Safety Products catalog for safety
products which meet OSHA, ANSI and
IEC standards for personnel protection.
Slide Fibers & Bushings
Into Ports
Fiber Bushings
(supplied with fiber)
MINI-BEAM
"FP1" Sensor
Unterminated Plastic
Fibers
Sensor Face
Tighten clamp screw
to secure Fiber
0.25"

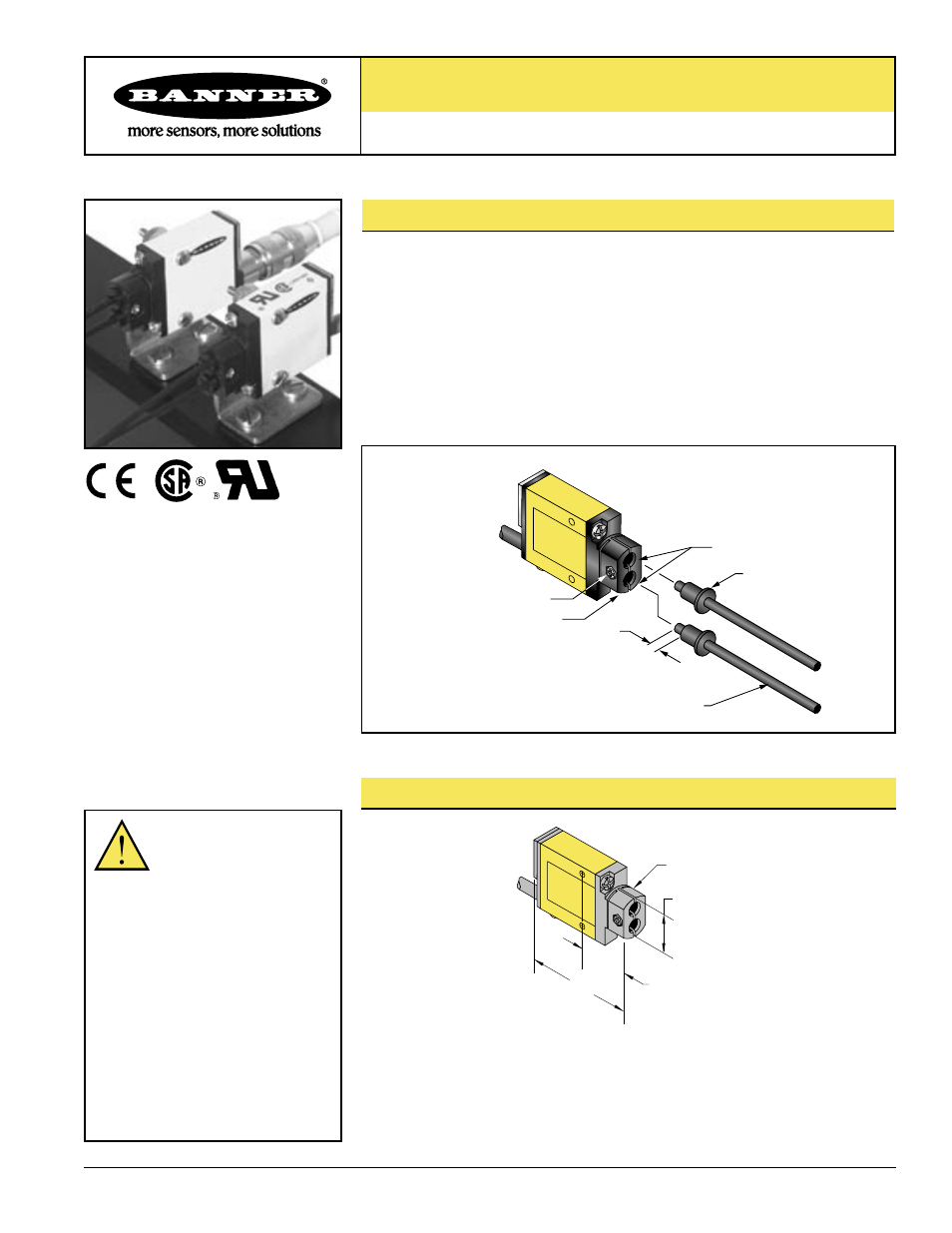

Figure 1. Fiber installation
�������������������
��������������� ���������������
���������������
Dimensions
WARRANTY: Banner Engineering Corp. warrants its products to be free from defects for
one year. Banner Engineering Corp. will repair or replace, free of charge, any product of its
manufacture found to be defective at the time it is returned to the factory during the warranty
period. This warranty does not cover damage or liability for the improper application of Banner
products. This warranty is in lieu of any other warranty either expressed or implied.
Apr 2013 p/n 61308 Rev. B
