Upgrade Firmware

TFTP Upgrade

With a Web browser, click on “Software upgrade”, input TFTP
server’s IP address and go. Make sure that the firmware file
(For example: ups.bin) is located in the default directory of the
TFTP server.

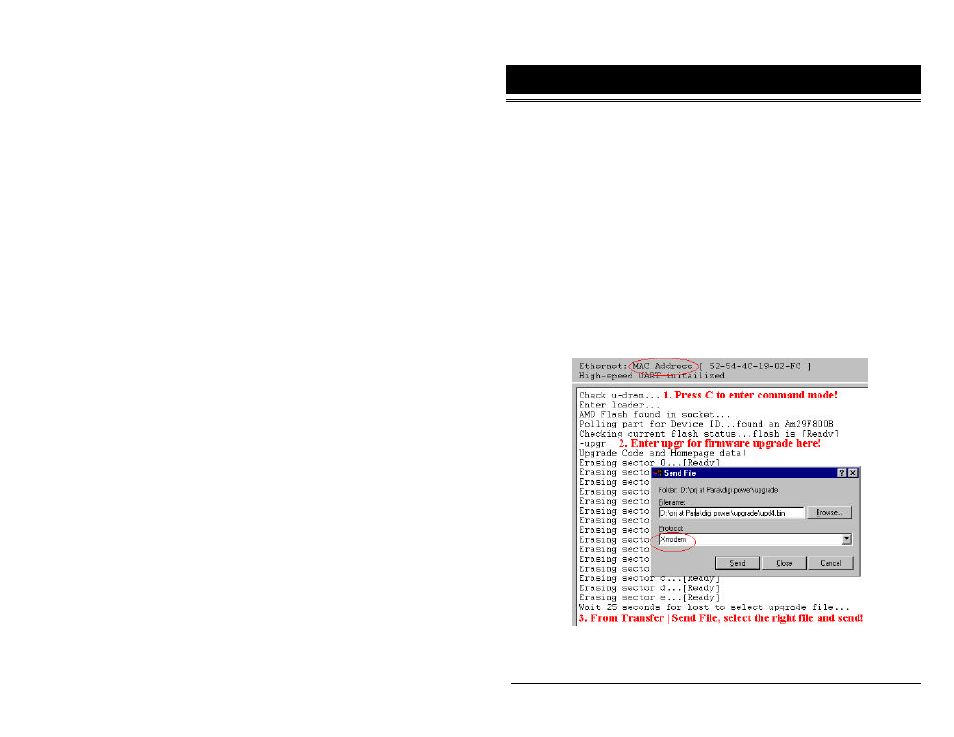

RS232 Serial Port Console Upgrade

The following steps guide you in connecting the ePowerSwitch
System through the serial port

1. Connect the RS232 port to a dumb terminal/PC with a null
serial cable.

2. Power on the NIC card of the ePowerSwitch;

? You have to reconfig all setting in ePowerSwitch after the
upgrade process has been completed successfully because all
