WORLD-BEAM® Q20 Series Sensors
Compact, Self-Contained Family of Sensors
Features
• Photoelectric sensors in a compact, rugged, sealed, over-molded plastic housing
• Standard 3 mm threaded mounting holes on 25.4 mm (1") spacing
• Advanced electronic design for excellent noise immunity and cross-talk avoidance
• Threaded metal M8 connector on Pico-style quick-disconnect models
• 10 to 30V dc operation with complementary solid-state outputs (1 normally open, 1
normally closed); PNP (sourcing) or NPN (sinking), depending on model
• Complete offering of mounting brackets and apertures available
• Crosstalk prevention filters available for visible red opposed mode pairs
• Exceptional optical performance with easy to align visible red emitters
• Background suppression models provide reliable detection up to 150 mm while ignor-
ing objects in the background
• Background suppression models provide stable detection in the presence of fluores-
cent lights
Overview
Banner’s Q20 family of sensors offers a full complement of sensing modes, with
the excellent performance expected of much larger sensors. Their compact plas-
tic housings feature overmolded construction for superior robustness and seal-
ing. Their popular rectangular design is easy to mount into tight spaces; integral
threaded mounting holes eliminate the need for separate mounting nuts.
The single-turn Gain potentiometer on most models and bright LEDs (positioned
on top of the housing for 360° visibility) provide easy alignment and configura-
tion for reliable sensing (see
on page 1).
WARNING: Not To Be Used for Personnel
Protection
Never use this product as a sensing device
for personnel protection. Doing so could
lead to serious injury or death. This product
does NOT include the self-checking redundant
circuitry necessary to allow its use in personnel
safety applications. A sensor failure or malfunc-
tion can cause either an energized or de-ener-
gized sensor output condition.
1
2
3

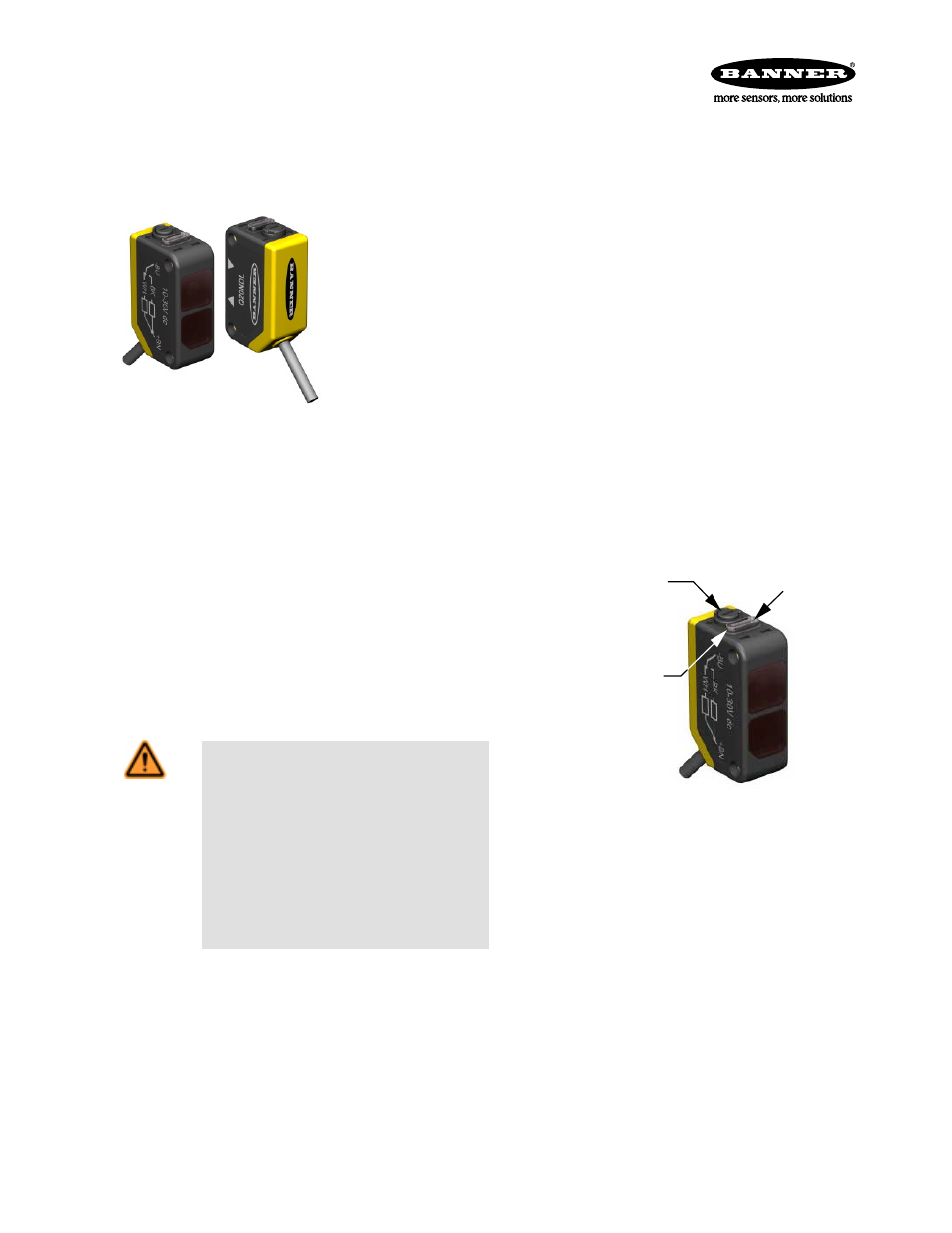

Figure 1. Features
on page
3.)
1. Output LED
2. Power LED
3. Single-Turn Gain Potentiometer (Retro
and Diffuse models only)
