SMB4050YL Accessory Bracket
WARRANTY: Banner Engineering Corp. warrants its products to be free from defects for one year. Banner Engineering
Corp. will repair or replace, free of charge, any product of its manufacture found to be defective at the time it is returned
to the factory during the warranty period. This warranty does not cover damage or liability for the improper application of
Banner products. This warranty is in lieu of any other warranty either expressed or implied.
P/N 140733

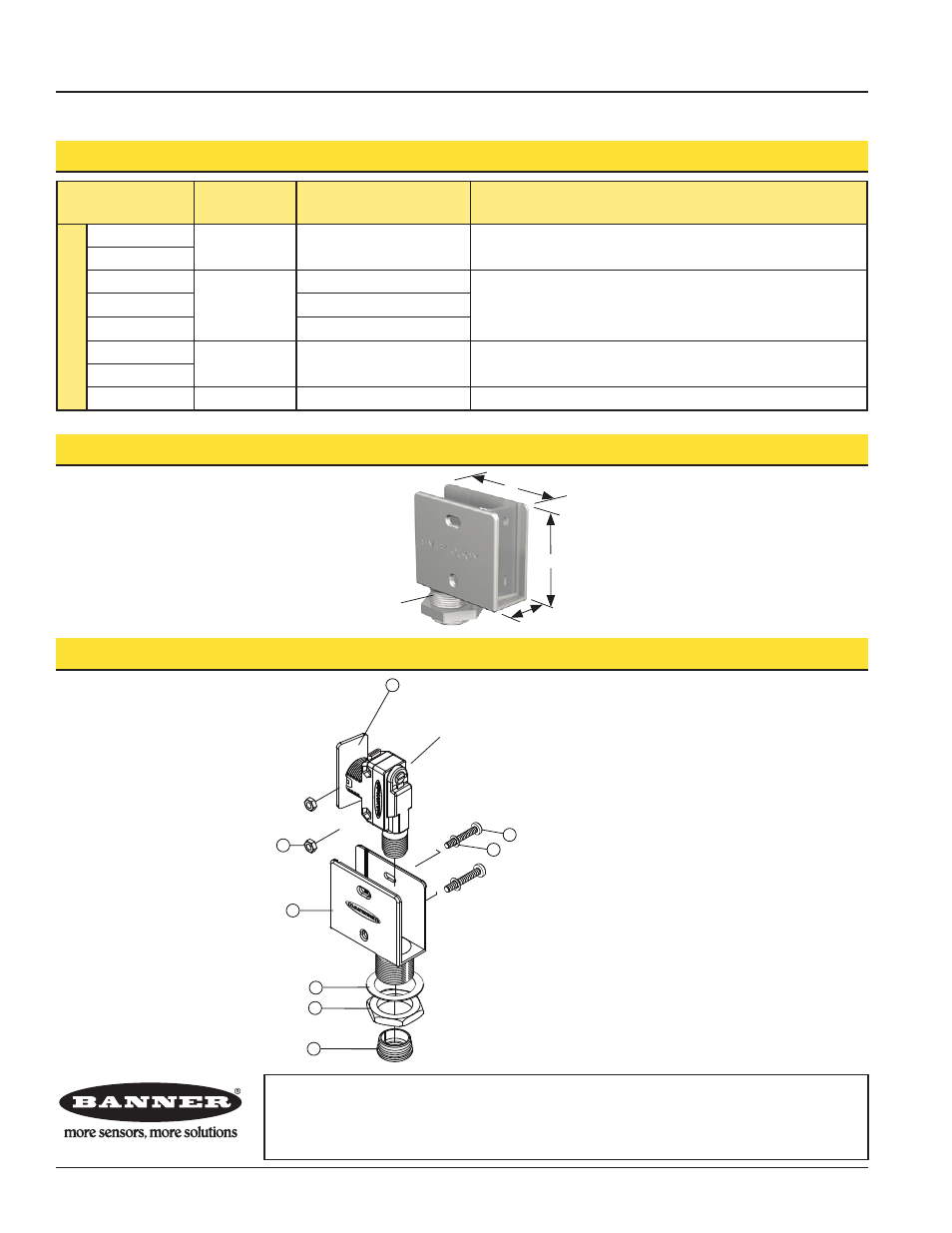

Dimensions
44 mm
16.4 mm
50 mm
ø 18.0 mm
Model
Compatible
with Bracket
Compatible with Bracket
and Protective Window
Impact of Window
Expert
Series
QS18E*6CV15
Yes Yes • Excess Gain reduced by up to 20%
QS18E*6CV45
QS18E*6LP
Yes
Yes
• Excess Gain reduced by up to 20%
• Range reduced by up to 10%
QS18E*6D CONDITIONAL*
QS18E*6DV CONDITIONAL*
QS18E*6DB
NO NO See bracket SMBQS18A
QS18E*6W
QS18E*6FP
Yes NO N/A
WORLD-BEAM ® QS18 Compatibility (continued)
* Conditional indicates the application must be tested for sufficient contrast under the selected TEACH conditions with the protective window in place.
Installation
Sensor
(not included)
Remove paper backing
before installation
6
5
4
3
2
8
7
1
2
3
4
5
7
8
1
6
Parts List Quantity
1 Window* 1
2 Mounting Nuts, M3 X 5 2
3 SMB4050YL Bracket 1
4 3/4" Narrow Washer 1
5 Jam Nut, M18 X 1 1
6 Grommet, M18 1
7 Mounting Bolts, M3 X 20 2
8 Washers, M3 2
* Window intentionally angled at 10° to
provide efficient light transmission without
reflection. A packet of 10 replacement
windows can be ordered separately (P/N
78387), contact factory.
