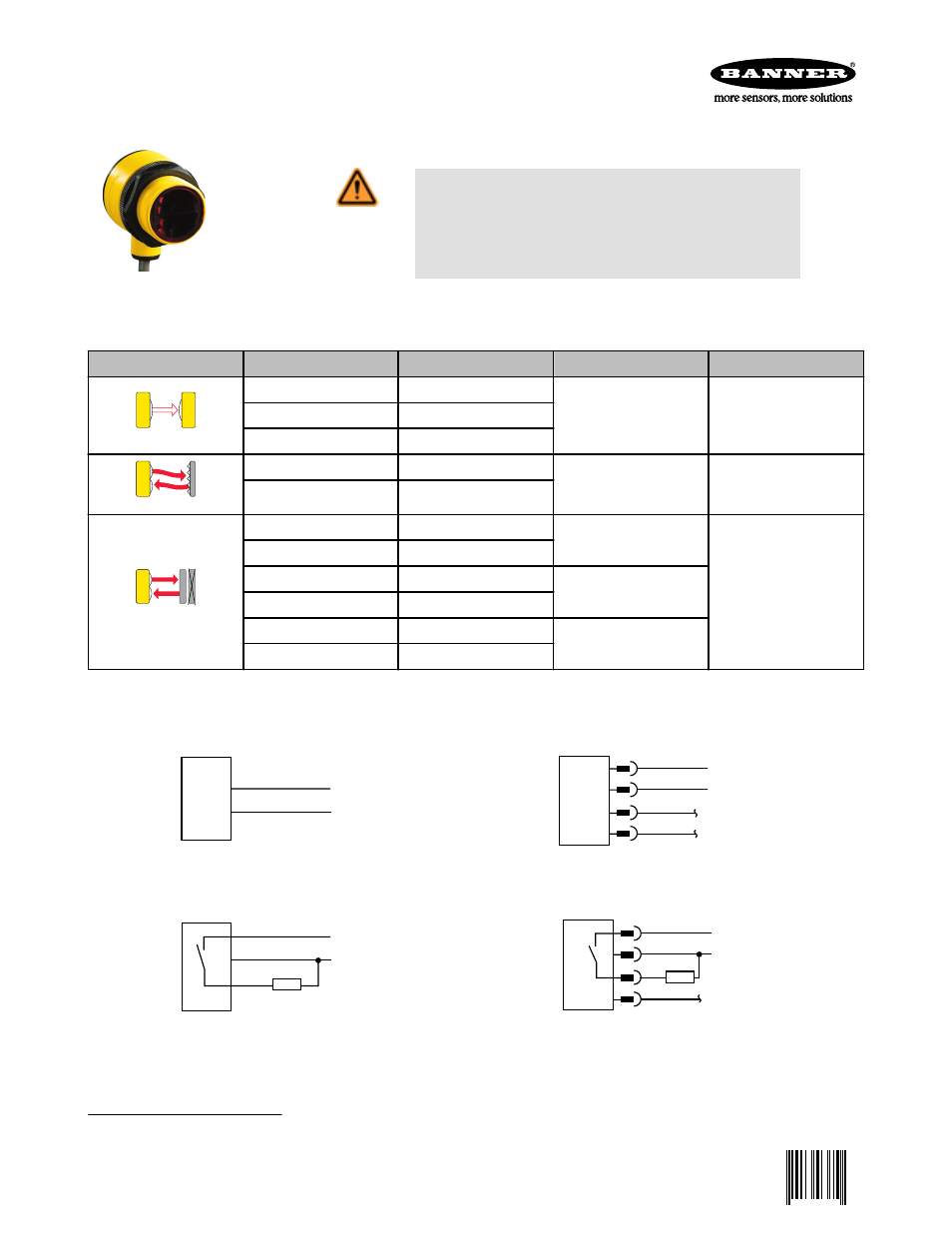

Banner T30 Series - Manual

Self-Contained, AC-Operated Sensors
For complete technical information about this product, including dimensions, accessories, and specifications, see www.bannerengineering.com and search 121523
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing
so could lead to serious injury or death. This device does NOT include the
self-checking redundant circuitry necessary to allow its use in personnel safety
applications. A sensor failure or malfunction can cause either an energized or de-
energized sensor output condition.
Models
Sensing Mode Model 1 Output Range LED
OPPOSED
T303E -
60 m (200 ft) Infrared, 950 nm T30AW3R LO
T30RW3R DO
P
POLAR RETRO
T30AW3LP LO
6 m (20 ft) Visible Red, 680 nm
T30RW3LP DO
FIXED-FIELD
T30AW3FF200 LO
200 mm (8 in) cutoff
Infrared, 880 nm
T30RW3FF200 DO
T30AW3FF400 LO
400 mm (16 in) cutoff
T30RW3FF400 DO
T30AW3FF600 LO
600 mm (24 in) cutoff
T30RW3FF600 DO
Hookups
Cabled Emitters
bn
bu
20-250V ac
QD Emitters (4-pin Micro-Style)
20-250V ac
No connection
rd/wh
rd/bk
rd
gn
All Other Cabled Models
bn
bu
bk
20-250V ac
Load
All Other QD Models (4-pin Micro-Style)
20-250V ac
No Connection
Load
rd/wh
rd
rd/bk
gn
1 Standard 2 m (6.5 ft) cable models are listed. For 9 m (30 ft) cable: add suffix “W/30” (for example, T303E W/30). For 4-pin Micro-style integral QD: add suffix “Q1” (for example,
T303EQ1). A model with a QD connector requires a mating cable.
T30 Sensors - AC-Voltage Series
P/N 116162 Rev. A 2/8/2013
