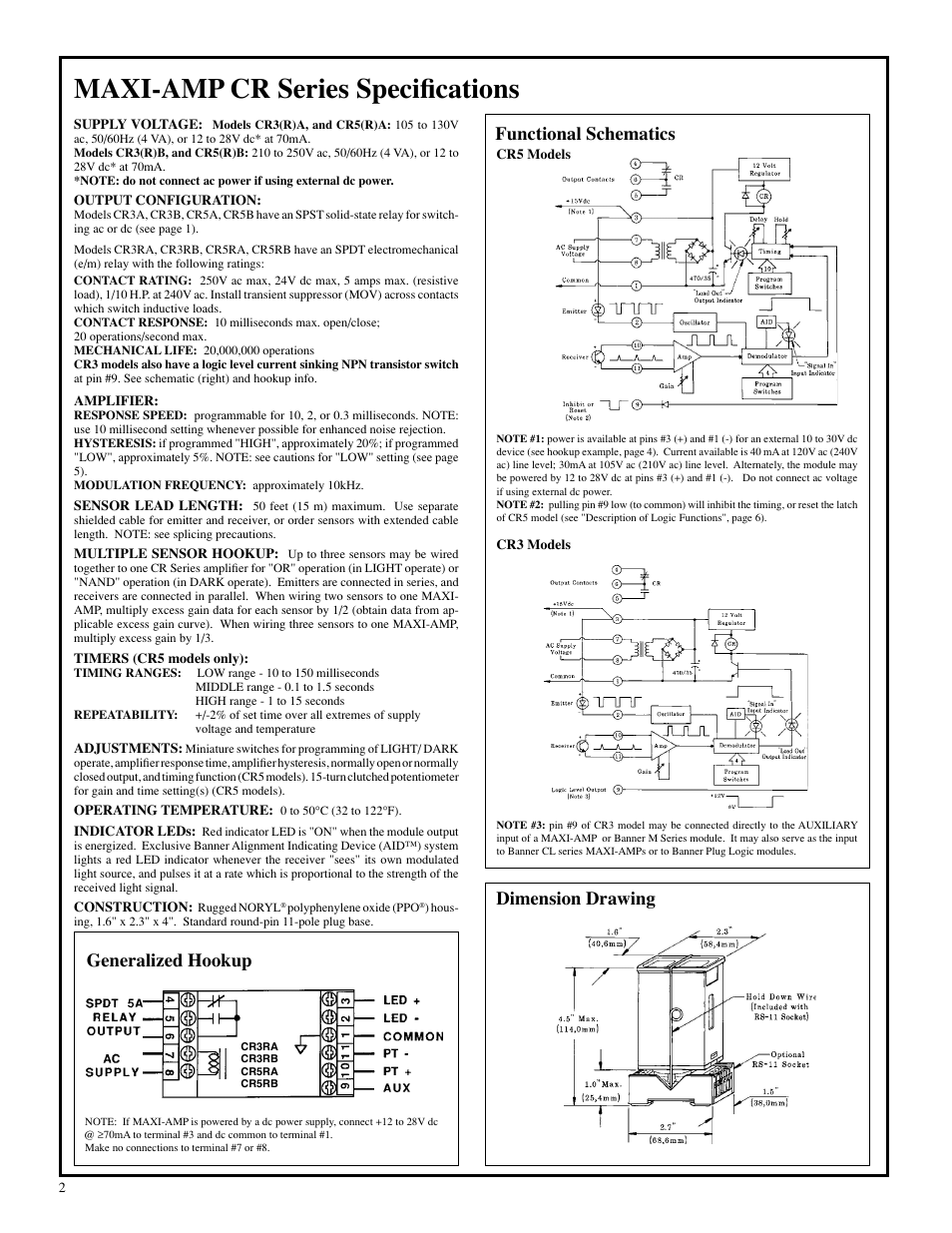

Maxi-amp cr series specifications, Dimension drawing, Functional schematics – Banner MAXI-AMP Series User Manual
Page 2: Generalized hookup
