T8 Series Diffuse Mode
page
2
Banner Engineering Corp.
•
Minneapolis, U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

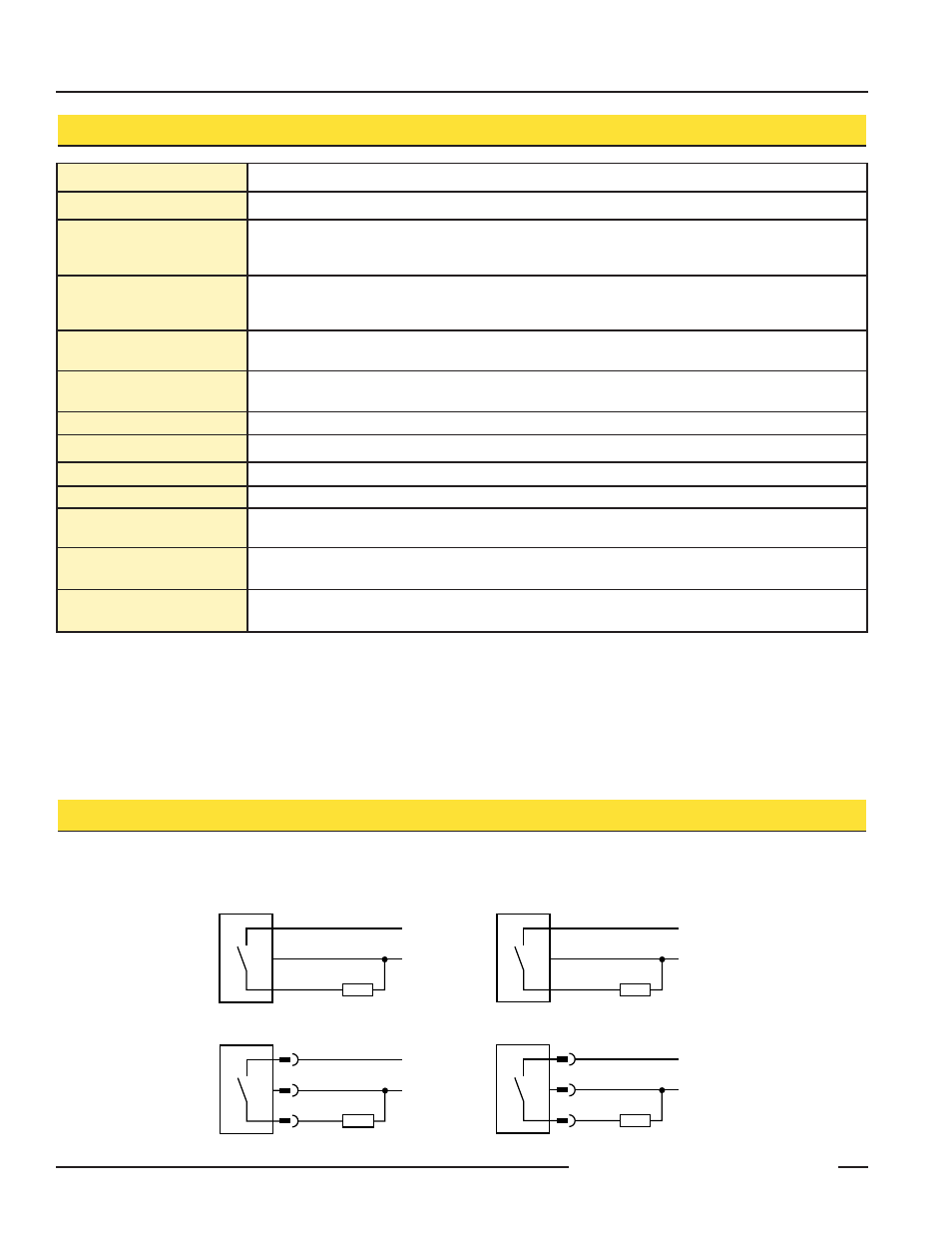

T8 Series Specifications
Supply Voltage and Current
Supply Protection Circuitry
Protected against reverse polarity and transient voltages
Output Configuration
SPST solid-state switch
Choose NPN (current sinking) or PNP (current sourcing) models
Choose light operate (N.O.) or dark operate (N.C.) models
Output Rating
50 mA maximum
Off-state leakage current: < 1 microamp at 24V dc
On-state saturation voltage: < 0.25V at 10 mA dc; < 0.5V at 50 mA dc
Output Protection Circuitry
Protected against false pulse on power-up and continuous overload or short circuit of outputs
Overload trip point ≥ 100 mA
Output Response Time
1 millisecond ON and OFF
(NOTE: 150 millisecond delay maximum on power-up: output does not conduct during this time)
Indicator
Red LED: On when light is sensed
Repeatability
160 microseconds
Construction
Reinforced polycarbonate/ABS alloy housing, acrylic window
Environmental Rating
IEC IP67; NEMA 6
Connections
2 m (6.5') attached cable: three #28 ga stranded conductors with PE insulation; PVC outer cable jacket;
or 3-pin Pico-style pigtail quick-disconnect fitting. QD cables are ordered separately.
Operating Conditions
Temperature: -20° to +55°C (-4° to +131°F)
Maximum Relative Humidity: 80% at 50°C (non-condensing)
10 to 30V dc (10% maximum ripple) at less than 25 mA (exclusive of load)
Application Notes
Optional mounting bracket is available (page 3).
Reinforced polycarbonate/ABS alloy 8 mm threaded nut (included).
T8 Series Sensor Hookups
10-30V dc
–
+
bu
bn
bk
Load
10-30V dc
–
+
bn
bu
bk
Load
10-30V dc
–
+
bu
bn
bk
Load
10-30V dc
–
+
bn
bu
bk
Load
Sensors with NPN Outputs
Cabled hookup
Quick-Disconnect hookup
Quick-Disconnect hookup
Sensors with PNP Outputs
Cabled hookup
